54mm portafilter breville

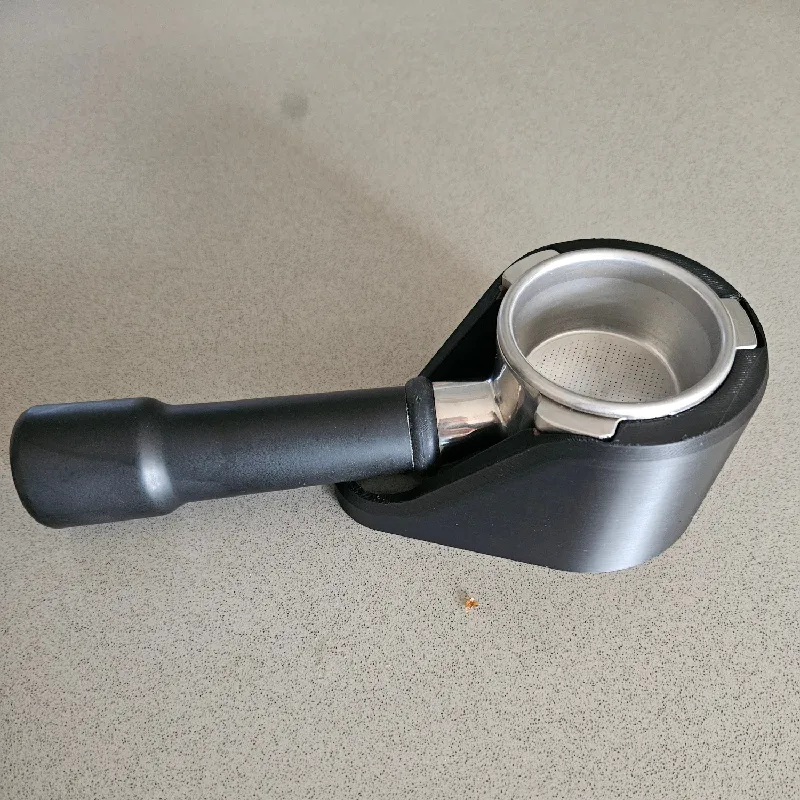

Designed this after looking at a bunch of portafilter designs. Especially the 58mm portafilter stand designed by rotf101. The model is easy to clean, uses 65g of filament and sits nicely on a small plate.

This print took a total of 5 redesigns to get the tolerance just perfect and adding small details. These include the chamfers on the edges to make it appear thinner and streamlined along with an optional stencil to help hide the printing seam.

I printed this with 2 walls and 15% infill with no issues on a bambu A1 bedslinger

 rotf101 58mm portafilter stand https://www.thingiverse.com/thing:3548147

There are two 3mf files . The first has a stencil engraved on the front to help hide steams and establish your dominance in any coffee station face off. The second has no stencil.

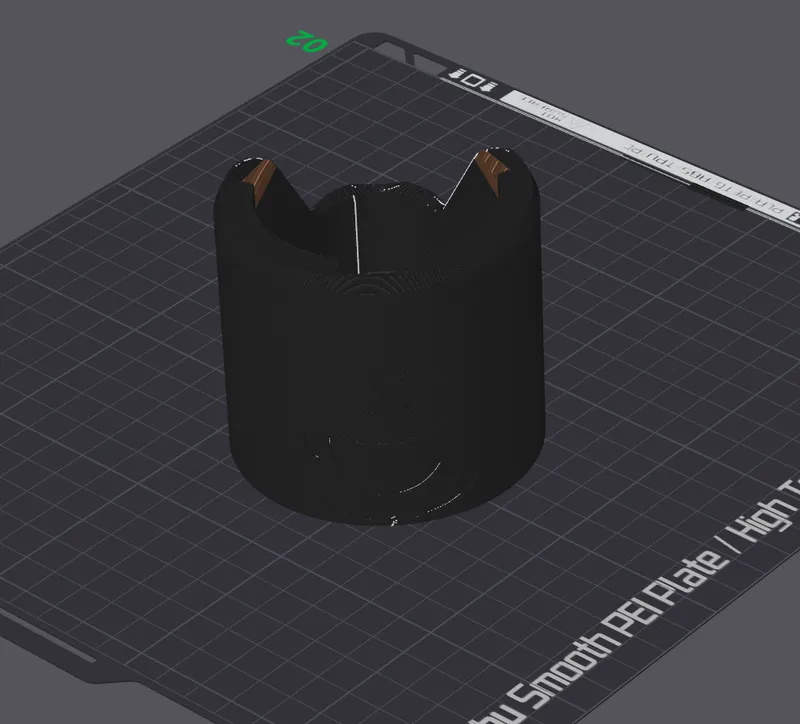

When slicing make sure the seam follows the outside edge of the model as shown below. This helps hide the seam as much as possible.

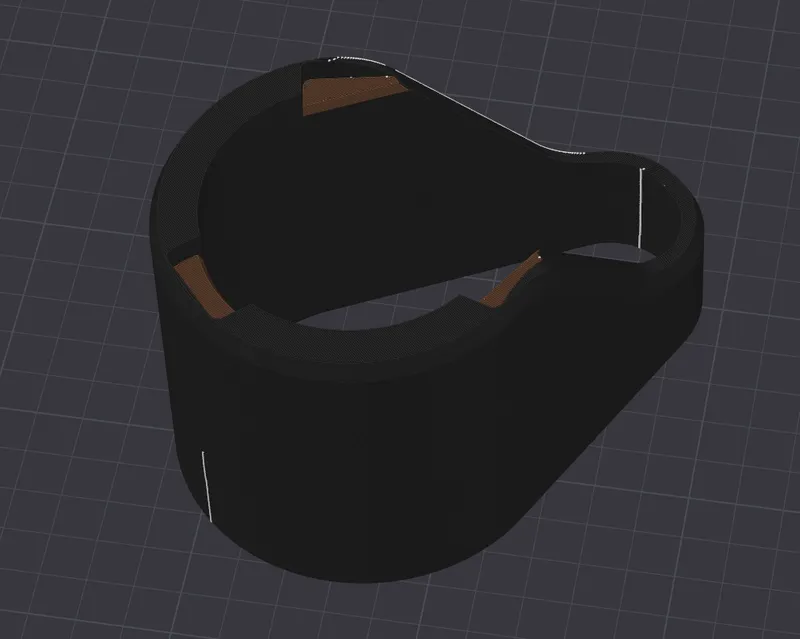

If you would like the end of the portafilter to be the same height as the bottom of the stand (shown below) please cut 15mm off the bottom of the model. Please note that this will only work on flat surfaces like a tea tray as any kind of lip on a plate or saucer will stop it from sitting flat.

This info can also be used to set a custom height as you can decide how high you want the end of the handle to rest.
