The Cardle - Cardo PackTalk Edge Charging Cradle

The Cardle is the fastest way to change your Cardo. Drop your Cardo in this charger and the magnets do the hard work.

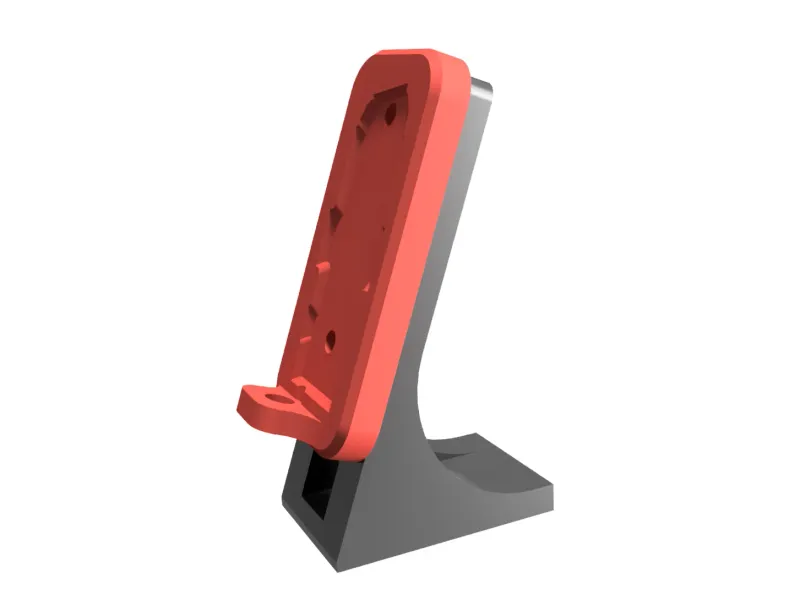

There are two pieces to print, the cradle, and the stand. If you'd prefer a wall mounted cradle you can skip printing the stand.

Assembly Instructions:

You will need a magnetic charging cable and six 6mm x 3mm round magnets.

Cable: https://www.amazon.com/dp/B07RHVNFQ6

Magnets: https://www.amazon.com/dp/B0BW91ZTKZ

This cradle will require removing the rubber waterproofing cover on the Cardo's charge port. That rubber cover provides some water resistance, but it's difficult to open and close and wears out over time anyway.

Next glue in all magnets, pay attention to polarity.

You can attach the base and the cradle together using magnets or super glue.

Slide the the charging cable into place and your ready to go.
