Open Bins for Packout

Open Bins for Milwaukee Packout

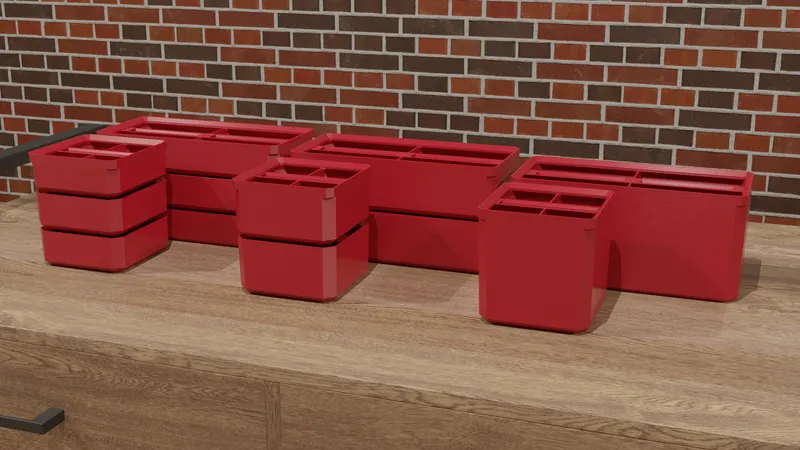

I created these bins primarily because I wanted something with a permissive license that has many options. There are 151 unique objects as of now. You are welcome to submit remixes if you have an idea.

The bins come with a blank label that you can use PrusaSlicer's text tool to create labels for your bins.

See here for text embossing instructions.

If the label doesn't quite sit flat you can shave the ends down with a knife a bit. If it is too loose you can scale it up a tiny bit.

The bins have also been created with tight tolerances to prevent parts from migrating between the bins. Each bin sits directly onto the bin below it with minimal gap and the top bin is nearly flush with the lid of the Packout organizer.



All you need to know:

I recommend downloading the All-In-One zip file since it has the files organized into folders.

Each bin comes in 3 height options: Full, half, and third height.

Each bin also comes with a variety of dividers. Up to 6 for the single width bins and up to 10 for the double width bins.

There are also blank versions of each bin to make remixing easier.

These should print very easily with no supports so I will let you determine your own print settings.


I am releasing these with a permissive license that includes commercial use. If you use them for commercial purposes you are encouraged to make a contribution.
