{"data":{"model":{"id":"985036","slug":"pendant-slide-ocarina","name":"Pendant Slide Ocarina","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"5.0000000000","myRating":null,"ratingCount":2,"description":"

I will publish new Ocarinas only on MakerWorld.

https://makerworld.com/en/@E.CAN3

This is a funny little toy.

So\u2026 this ocarina is not in a specific tune.

It is loud and annoying.

It is fun to play.

How to use it:

Close the slot with a finger of your right hand for the lowest note.

Slide your chosen finger to the right to increase the pitch + blow a little bit harder.

Don't block the soundhole on the back!

I print them with:

0.4 mm nozzle
2 walls
0.2 mm Layer hight
4 Top and Bottom layers
Wall Ordering: Outside To Inside - Walls before Infill.
20% Infill - Gyroid
5mm Brim
No Support

Important

Make sure your bed adhesion is good, else it will fail, so\u2026 clean your bed before printing!
Avoid stringing
Avoid Z-Seam on the labium
Have fun!

","category":{"id":"95","path":[{"id":"48","name":"Hobby & Makers","nameEn":"Hobby & Makers","description":"Are you a maker? Everyone is, be a printer. Upgrade your home workshop and combine different materials and methods of crafting including 3D printing.","__typename":"CategoryType"},{"id":"95","name":"Music","nameEn":"Music","description":"It all started with a knob for a DJ console. 3D printed instruments are all the rage now. Flute, violin, violoncello, trumpet, or holders for them.","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2025-05-09T07:53:21.742178+00:00","firstPublish":"2024-08-24T21:57:11.715665+00:00","datePublished":"2025-05-09T07:53:21.724210+00:00","dateCreatedThingiverse":null,"nsfw":false,"aiGenerated":false,"politicalContent":false,"summary":"A small Ocarina that can be worn as pendant or keychain.","likesCount":31,"makesCount":2,"liked":null,"printDuration":null,"numPieces":0,"weight":null,"nozzleDiameters":null,"usedMaterial":null,"layerHeights":null,"mmu":false,"materials":[],"dateFeatured":null,"downloadCount":165,"displayCount":669,"filesCount":1,"privateCollectionsCount":24,"publicCollectionsCount":17,"pdfFilePath":"media/prints/985036/pdfs/985036-pendant-slide-ocarina-57ff5864-215d-4033-8a5e-195748c7ce15.pdf","commentCount":2,"userGcodeCount":0,"remixCount":0,"canBeRated":false,"addMakePermission":null,"printer":null,"image":{"id":"3480040","filePath":"media/prints/985036/images/7506694_6e013b5c-a5ad-4a34-a2ff-f2d3117864f7_4e475f19-d635-4b3c-aa15-cb4a84831b84/pxl_20240824_2059550484.jpg","rotation":0,"imageHash":"SxgGBwIMtXhxhXtoqFmXqGl59lInK3YA","imageWidth":3023,"imageHeight":3024,"__typename":"PrintImageType"},"images":[{"id":"3480040","filePath":"media/prints/985036/images/7506694_6e013b5c-a5ad-4a34-a2ff-f2d3117864f7_4e475f19-d635-4b3c-aa15-cb4a84831b84/pxl_20240824_2059550484.jpg","rotation":0,"imageHash":"SxgGBwIMtXhxhXtoqFmXqGl59lInK3YA","imageWidth":3023,"imageHeight":3024,"__typename":"PrintImageType"},{"id":"3480041","filePath":"media/prints/985036/images/7506697_fe81271d-dbf5-4e49-a301-5f18eb6013f1_867ad1a9-92b9-4d4e-a9b6-a460fe5ed4bd/pxl_20240824_2113137674.jpg","rotation":0,"imageHash":"ExgKBwBVp3UglmqYl2iZh3d4FgZycxAJ","imageWidth":3023,"imageHeight":3024,"__typename":"PrintImageType"},{"id":"3480042","filePath":"media/prints/985036/images/7506696_0559f7ca-195d-4e55-82c3-a8b910e6c2c8_9d7ea853-2ee3-4736-9e33-8132ac5ec0d2/pxl_20240824_205721962mp3.jpg","rotation":0,"imageHash":"mPcJJwQ4pXhQdYqYl2iYiId5d4331ngP","imageWidth":3023,"imageHeight":3024,"__typename":"PrintImageType"},{"id":"3480043","filePath":"media/prints/985036/images/7506695_cb405994-d2a4-4904-97a4-6d2948bf5a36_0d491ba1-0c5d-4f26-9148-50c9dda19b05/pxl_20240824_2057426183.jpg","rotation":0,"imageHash":"2PcJLwYnqHdghnqHiIiHiHiJdn3414cP","imageWidth":3023,"imageHeight":3024,"__typename":"PrintImageType"},{"id":"3480113","filePath":"media/prints/985036/images/7506880_6ec72413-488b-46a6-93d2-d745c5bc99a9_ac4cb71f-0ef6-4b6b-b91c-4cabe32c5107/pxl_20240824_2150265623.jpg","rotation":0,"imageHash":"GwgKDQJgknh1iIq2h3iXWD0J1aRg","imageWidth":3024,"imageHeight":4032,"__typename":"PrintImageType"}],"imagesCount":5,"tags":[{"name":"keychain","id":"2269","__typename":"TagType"},{"name":"ocarina","id":"2935","__typename":"TagType"},{"name":"pendant","id":"5163","__typename":"TagType"}],"thingiverseLink":null,"filesType":null,"previewFile":{"id":"4126905","filePreviewPath":"media/prints/985036/previews/baa49164c213cf1f6345654e3c6d180f995c8c58.png","__typename":"STLType"},"license":{"id":"6","disallowRemixing":true,"__typename":"LicenseType"},"remixParents":[],"remixDescription":null,"__typename":"PrintType","eligibleForNomination":false,"priceBeforeSale":null,"user":{"id":"637457","handle":"ECAN3_637457","verified":false,"dateVerified":null,"publicUsername":"E.C.3D","avatarFilePath":"media/auth/deb614da-caab-459c-b244-c1fa3147a9d1.jpg","badgesProfileLevel":{"profileLevel":11,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isFollowedByMe":false,"isHiddenForMe":false,"canBeFollowed":true,"billingAccountType":"personal","lowestTierPrice":null,"highlightedModels":{"models":[{"id":"474058","name":"Ocarina of Time - 12 hole Alto C Ocarina","slug":"ocarina-of-time-12-hole-alto-c-ocarina","ratingAvg":"4.7894736842","likesCount":860,"liked":null,"datePublished":"2025-05-10T20:02:35.894326+00:00","dateFeatured":null,"firstPublish":"2023-05-07T21:29:35.506068+00:00","downloadCount":4354,"mmu":false,"category":{"id":"95","path":[{"id":"48","name":"Hobby & Makers","nameEn":"Hobby & Makers","__typename":"CategoryType"},{"id":"95","name":"Music","nameEn":"Music","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2025-05-10T20:02:35.911616+00:00","image":{"id":"1925565","filePath":"media/prints/474058/images/4035577_ef8acfd1-926d-4a1b-bc2f-e54ab38d491c/v3-cover.jpg","rotation":0,"imageHash":"KxgKNob4Z3mNZ3d9hVd3mYeX95U/H+w=","imageWidth":2902,"imageHeight":2610,"__typename":"PrintImageType"},"imagesCount":8,"nsfw":false,"aiGenerated":false,"politicalContent":false,"club":false,"price":null,"priceBeforeSale":null,"eligibleForNomination":false,"user":{"id":"637457","handle":"ECAN3_637457","verified":false,"dateVerified":null,"publicUsername":"E.C.3D","avatarFilePath":"media/auth/deb614da-caab-459c-b244-c1fa3147a9d1.jpg","badgesProfileLevel":{"profileLevel":11,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isHiddenForMe":false},"latestContestResult":{"ranking":null,"competitionId":"368","__typename":"PrintLatestCompetitionResult"},"__typename":"PrintType"},{"id":"412936","name":"10 Hole Ocarina V0N3 C5 - F6","slug":"10-hole-ocarina-v0n3-c5-f6","ratingAvg":"4.9230769231","likesCount":110,"liked":null,"datePublished":"2025-05-09T07:52:54.716531+00:00","dateFeatured":null,"firstPublish":"2023-03-01T21:56:34.034276+00:00","downloadCount":938,"mmu":false,"category":{"id":"95","path":[{"id":"48","name":"Hobby & Makers","nameEn":"Hobby & Makers","__typename":"CategoryType"},{"id":"95","name":"Music","nameEn":"Music","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2025-05-09T07:52:54.733504+00:00","image":{"id":"1647587","filePath":"media/prints/412936/images/3426404_b01d637a-7fbb-4956-942b-c8828a651724/large_display_24cb8843-df83-4a11-b922-be7bd466f91e_412936.jpg","rotation":0,"imageHash":"MugRDYT3eGmaZniLdXiGeQhldK+5","imageWidth":1024,"imageHeight":798,"__typename":"PrintImageType"},"imagesCount":7,"nsfw":false,"aiGenerated":false,"politicalContent":false,"club":false,"price":null,"priceBeforeSale":null,"eligibleForNomination":false,"user":{"id":"637457","handle":"ECAN3_637457","verified":false,"dateVerified":null,"publicUsername":"E.C.3D","avatarFilePath":"media/auth/deb614da-caab-459c-b244-c1fa3147a9d1.jpg","badgesProfileLevel":{"profileLevel":11,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isHiddenForMe":false},"latestContestResult":null,"__typename":"PrintType"},{"id":"845214","name":"Ocarina SC","slug":"ocarina-sc","ratingAvg":"4.7142857143","likesCount":46,"liked":null,"datePublished":"2025-05-09T07:53:35.303285+00:00","dateFeatured":null,"firstPublish":"2024-04-15T20:37:45.234613+00:00","downloadCount":326,"mmu":false,"category":{"id":"95","path":[{"id":"48","name":"Hobby & Makers","nameEn":"Hobby & Makers","__typename":"CategoryType"},{"id":"95","name":"Music","nameEn":"Music","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2025-05-09T07:53:35.321802+00:00","image":{"id":"3062085","filePath":"media/prints/845214/images/6576546_b1b48ba7-fd58-4168-8d8f-596a444c81a9_736863db-95ac-475b-9e6c-c9db0fc9917a/pxl_20240423_2151438292.png","rotation":0,"imageHash":"p0gOFYaSqal5iIh/drd4qbIwexcC","imageWidth":2598,"imageHeight":1730,"__typename":"PrintImageType"},"imagesCount":2,"nsfw":false,"aiGenerated":false,"politicalContent":false,"club":false,"price":null,"priceBeforeSale":null,"eligibleForNomination":false,"user":{"id":"637457","handle":"ECAN3_637457","verified":false,"dateVerified":null,"publicUsername":"E.C.3D","avatarFilePath":"media/auth/deb614da-caab-459c-b244-c1fa3147a9d1.jpg","badgesProfileLevel":{"profileLevel":11,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isHiddenForMe":false},"latestContestResult":null,"__typename":"PrintType"},{"id":"985036","name":"Pendant Slide Ocarina","slug":"pendant-slide-ocarina","ratingAvg":"5.0000000000","likesCount":31,"liked":null,"datePublished":"2025-05-09T07:53:21.724210+00:00","dateFeatured":null,"firstPublish":"2024-08-24T21:57:11.715665+00:00","downloadCount":165,"mmu":false,"category":{"id":"95","path":[{"id":"48","name":"Hobby & Makers","nameEn":"Hobby & Makers","__typename":"CategoryType"},{"id":"95","name":"Music","nameEn":"Music","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2025-05-09T07:53:21.742178+00:00","image":{"id":"3480040","filePath":"media/prints/985036/images/7506694_6e013b5c-a5ad-4a34-a2ff-f2d3117864f7_4e475f19-d635-4b3c-aa15-cb4a84831b84/pxl_20240824_2059550484.jpg","rotation":0,"imageHash":"SxgGBwIMtXhxhXtoqFmXqGl59lInK3YA","imageWidth":3023,"imageHeight":3024,"__typename":"PrintImageType"},"imagesCount":5,"nsfw":false,"aiGenerated":false,"politicalContent":false,"club":false,"price":null,"priceBeforeSale":null,"eligibleForNomination":false,"user":{"id":"637457","handle":"ECAN3_637457","verified":false,"dateVerified":null,"publicUsername":"E.C.3D","avatarFilePath":"media/auth/deb614da-caab-459c-b244-c1fa3147a9d1.jpg","badgesProfileLevel":{"profileLevel":11,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isHiddenForMe":false},"latestContestResult":null,"__typename":"PrintType"}],"featured":false,"__typename":"HighlightedModelsType"},"designer":false,"stripeAccountActive":null,"membership":null},"contests":[],"contestsResults":[],"prusameterPoints":null,"latestContestResult":null,"referencingArticles":[]}}}

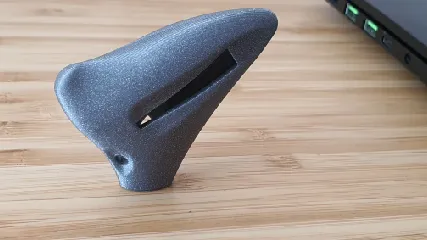

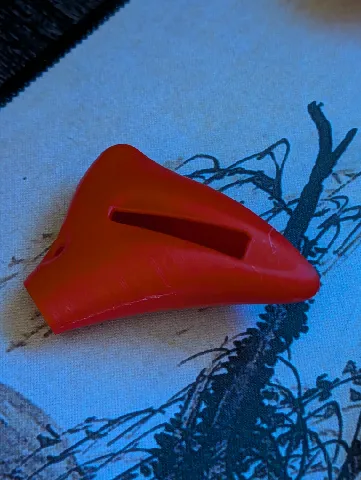

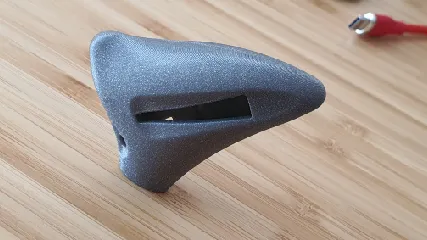

Pendant Slide Ocarina
