Description

Disclaimer: These and other models are available to all \"my club\" members starting at $5 per month, as well as for one-time purchase. Your support helps sustain the development efforts and the acquisition of modules.

Regarding the MMSS, I must say that in this one (UMSS) practically all the modules have been rebuilt, with special attention given to detail and functionality. They have been thoroughly tested, which involved several prototypes until they were perfected. That said, it is possible that Bambu Lab might change some of their parts at any given moment, and in such cases, it may be necessary to review or even create a new version of the module; this has happened before and I know it will happen again... Therefore, if you encounter any defects, I would be grateful if you could let me know before leaving a negative review. I appreciate your care and attention.

Introduction

These modules are part of the UMSS project, so you'll want to start there. Begin by creating and integrating tiles, which will eventually lead to the creation of boxes and other items. These \"containers\" will hold the modules, serving various purposes. In this case, they are tools and accessories compatible with all printers.

First and foremost, it's important to clarify that the 150x150mm tile box you\u2019ll find in the UMSS - Universal Modular Storage System is just an example. If you\u2019re planning to make a case, the largest you can create on the Bambu Lab Mini is 150x150mm. The case itself can be larger.

You have the flexibility to use this system as you see fit size wise. For example, you can use multiple 150x150mm boxes to store several modules, or opt for a larger box by using composite tiles like the 210x180mm tile, which allows you to maximize the space on Mk Prusa series, for the plates with a square area, like the Bambu lab X1, P1 and A1 series. for more on this please go the UMSS base project\u2026

Here you will find this containers:

1x universal pliers;

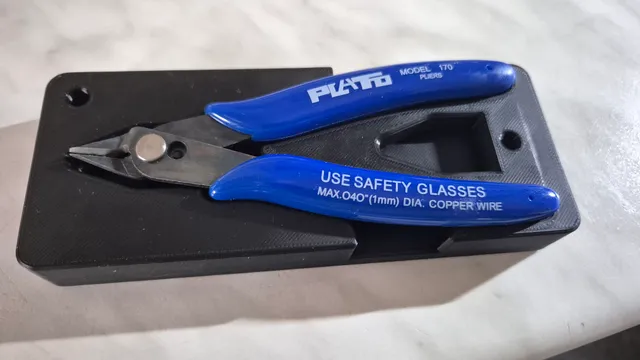

1x cut pliers;
1x spray bottle for IPA \"Isopropyl Alcohol\" (50ml) and cleaning wipe;

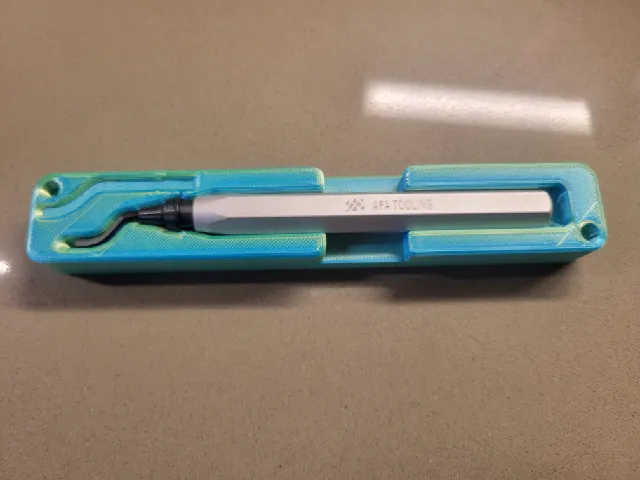

1x deburring tool;
1x Small deburring tool
more to come\u2026

Printing

Regarding printing, everything is quite simple as everything is pre-configured. You will find modules with pockets for magnets of 6.1 and 6.2mm. Choose the dimension that best suits your needs, keeping in mind that various factors can cause the magnet to not fit properly or be too loose. The magnet should fit with some pressure and then should not come out; if it does, use a small amount of glue at the base of the pocket. For more information on this, please visit the main page of this project here: UMSS - Universal Modular Storage System.

Some parts may one pause, or more, during to print to insert a internal magnet. Be carful with the orientation, the objetive is for the magnet to attract the tool. Modules with pauses:

1x deburring tool;
1x Small deburring tool.

Support the designer:

This design is free for the benefit of the community, but If you like my designs and want to contribute, you can make a donation to buymeacoffee or paypal, or even better, join \u201cMy Club\u201d here in printables.com, that will be greatly appreciated.

Change Log

(23-07-2024) - Initial release
(27-07-2024) - Geometric update on all 6x2 tiles
- Added a stackable wall
(05-09-2024) - Added Small deburring tool
