ECOVACS G1 Goat Blade Disc 6 Easy Print Version

Attention - use without guarantee - you may lose the guarantee here. Experimental version! Use at your own risk!

EASY PRINT VERSION - blades are 4mm further out instead of the main Version

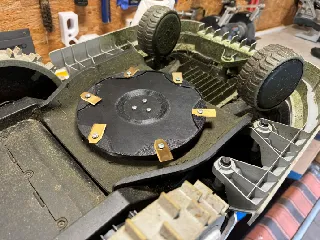

I designed a blade disc with more blades. Instead of 3 use this disc 6 blades.

The blades i use are diffrent from the original one. I ordered this ones: https://amzn.to/4bqEbSJ

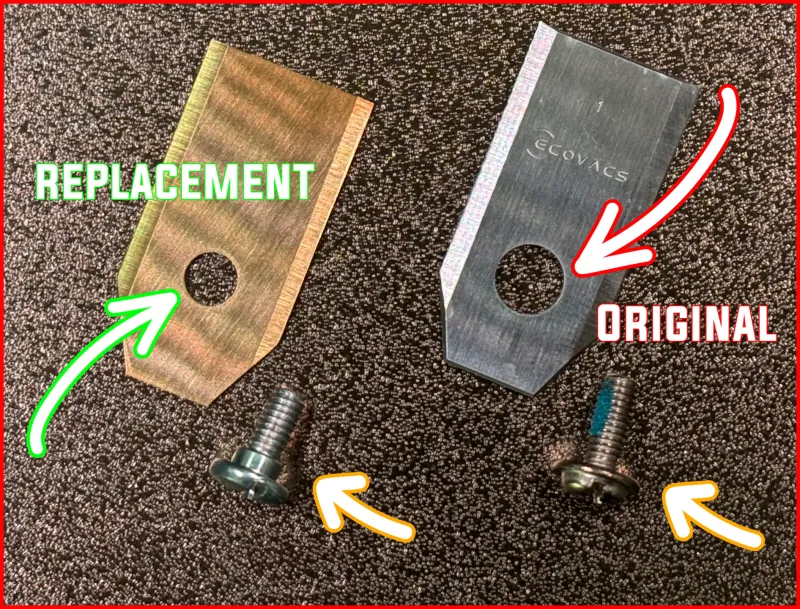

This use other screws and different holes in the blade that doesnt fit in the original one. That is one reason to draw a new blade disc. See picture below.

I uploaded two types of Blade Discs - One with blind holes for mount on the Lawn Mower (in the middle) and one without Blind holes. You need the blind holes for the original screws. Alternatively M4x16mm.

The disc is 10mm larger as the original + 4mm further out for the blade instead of the "Version 1 Main" one.

This easy Print Version will be weight more if you use my settings. This could affect the battery life.

Part List:

• 6x Heat Inserts: https://amzn.to/3WOAUIl
• 6x Blade with shoulder screws: https://amzn.to/4bqEbSJ
• optional:
• 3x Inox Screws M4x16 (for Version without blind holes): https://amzn.to/3UVY39w

My print settings:

You have to use support. If you have a Multimaterial system its pretty to use a interface for clear and nice surface (tutorial: https://youtu.be/Matf1Mna2zI?si=pkD_cQV2oMm4wECH)

For my first prints i use PETG with a PLA interface. it works well. Better is filament with GF or CF.

• Layer high: 0,24mm
• Walls: 4
• Top Layer: 4
• Bottom Layer: 4
• Infill: 33%

EASY PRINT VERSION -NO SUPPORTS NEEDED- blades are 4mm further out instead of the main Version
