Cargo Mooring Hook System 1/10 scale

This fastener is intended to be used with packing ribbon for presents. You can use the fabric type ribbon or the fully plastic one. Even though it is really tiny, it still works like the real deal! The MooringPoints are to be used with this awesome model but can be fitted on any others too of course

Printing:
Print all parts in the given orientation. Choose a layer hight from 0.1-0.2mm, depending on your use case. Scaling to your needs is easy to be done.

Note: the parts shown in the picture are scaled down to 65% and the ribbon is only 3.5mm wide.

Assembly:
Brush the Hook and the MooringPoint with a smal lighter flame and form them to shape.

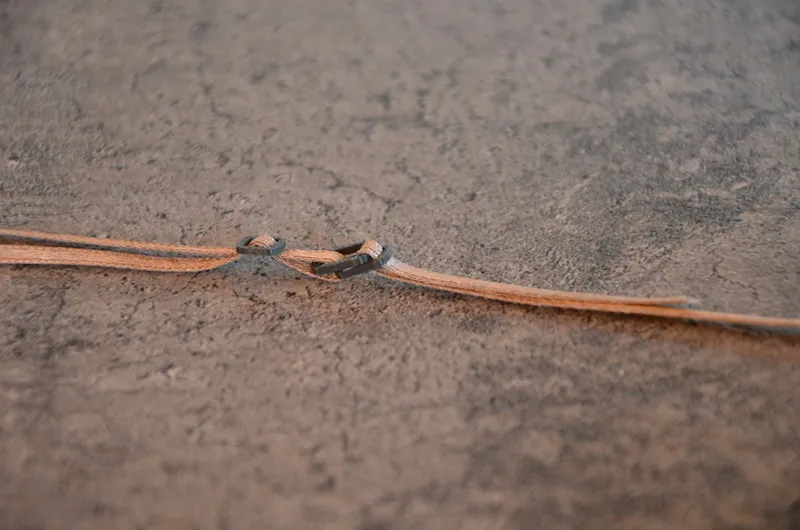

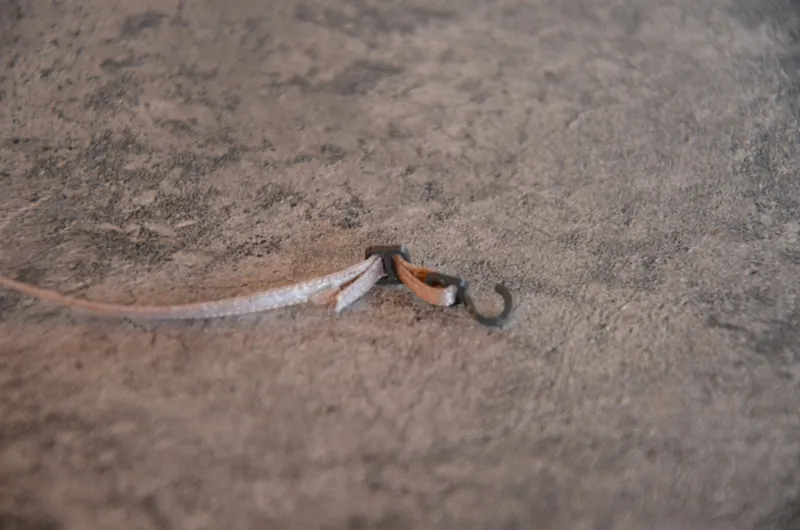

Thread the ribbon through the parts as seen on the pictures below.

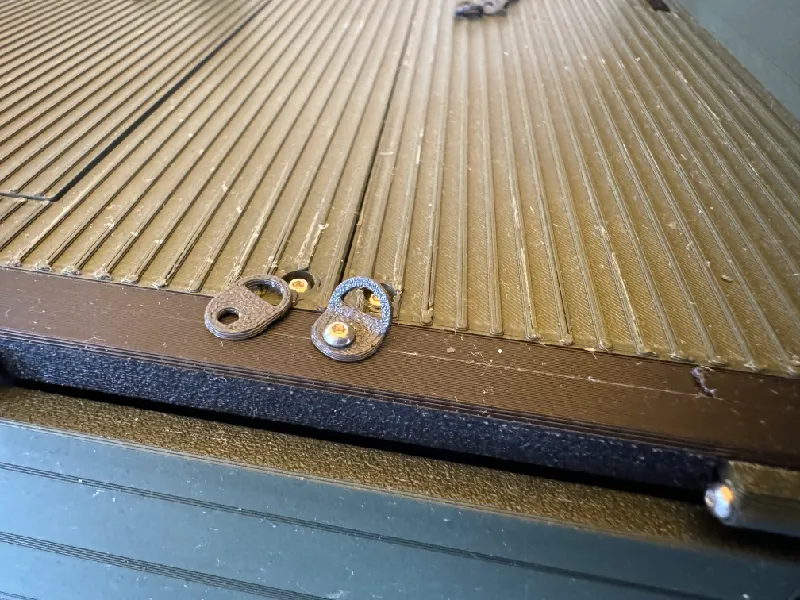

Mark the holes for the mooring points and drill them to 1.5mm. The Mooring points are intended to be attached with M2 screws

Done, enjoy :)

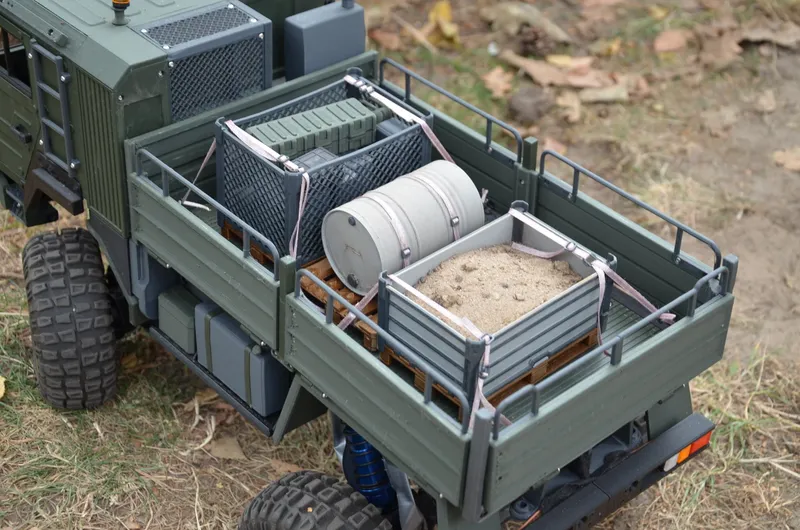

Looking for something to secure in place with your new mooring system? Maybe have a try with this collection

Re used the parts from the “Tie Down Straps” and also added some more.

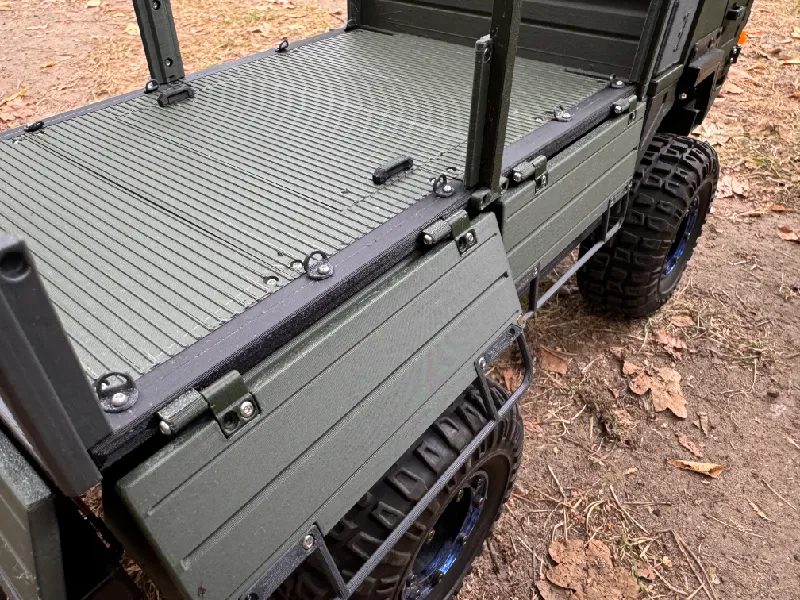

Created the mooring points to be the right size for the Armadillo
