Gridfinity base + boxes for aidB Eurobox 400x300 x 120&75mm

Gridfinity base + boxes for aidB Eurobox NextGen Economy 400x300x120mm and 400x300x75mm which will add 2 or 1 layers of 52mm high boxes into the Eurobox.

Features:

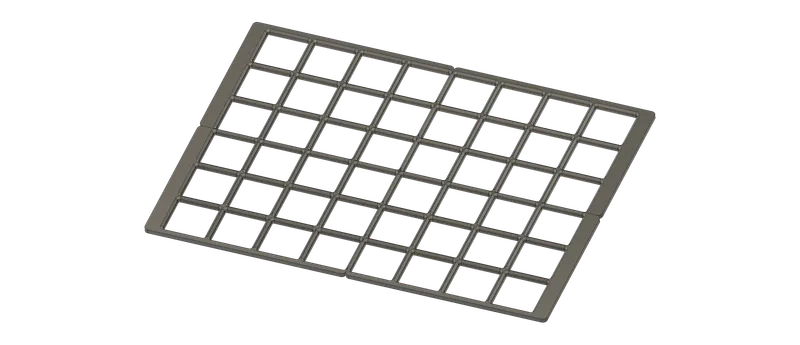

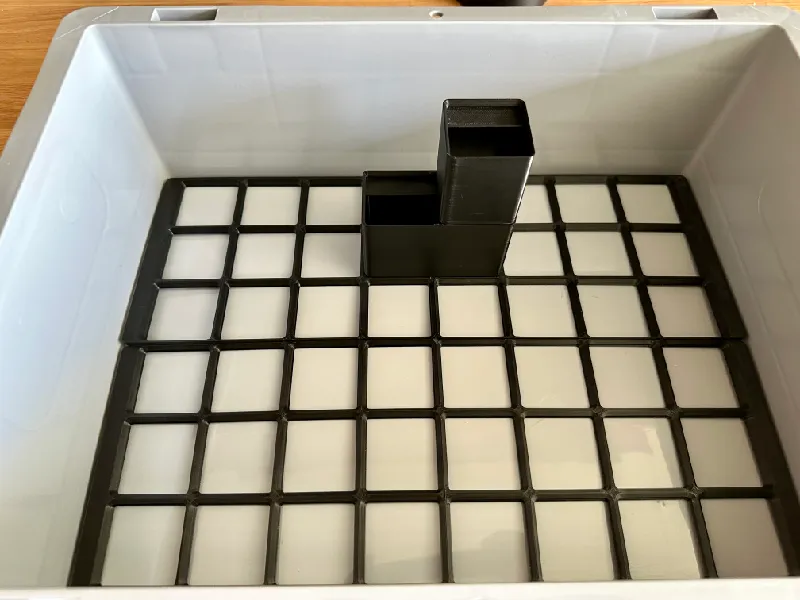

• Custom base plate in 4 parts which will fit into the Eurobox with a gap of around 1-2mm around the inside of the box.

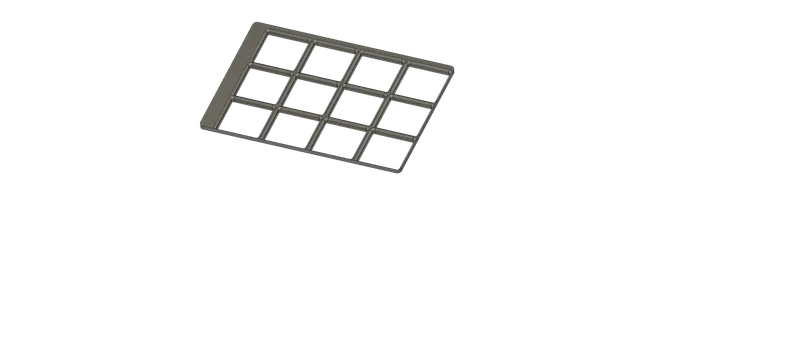

• The base plate is split into 4 pieces to be printed on small printers too in the thin design.

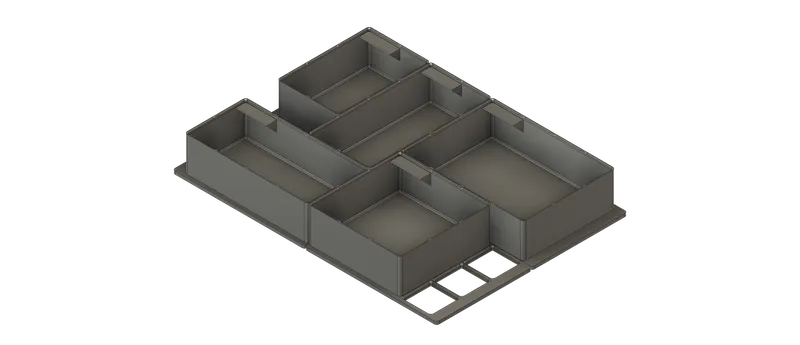

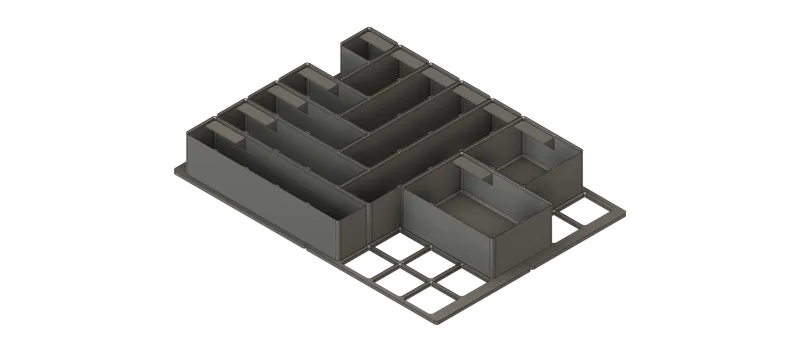

• Boxes from 1x1, 1x2 to 1x5, 2x1 to 5x1 plus 2x2 up to 2x6 and 4x2 plus 3x3, 3x4, 3x5 and 2x6 and 3x6 too.
• The boxes all have 1U wide label plate which needs no support to be printed.

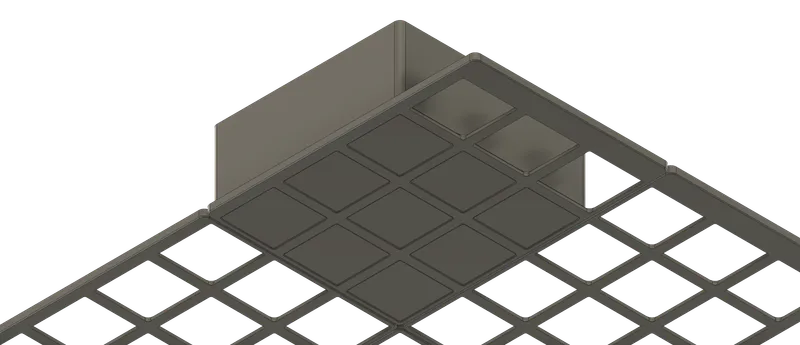

• All boxes larger than 1x1 have additional notches to hold upper boxes better in place.
• The height of the single Gridfinity boxes of 6.9U allows them to have 1 layer in the 75mm high EuroBox containers and 2 layers in the 120mm and you can still stack the EuroBox containers onto each other. =)

Note:

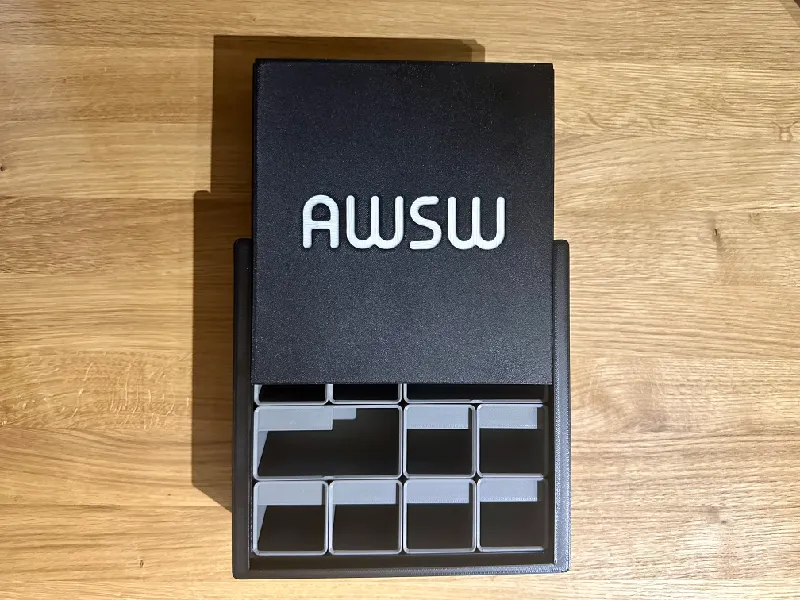

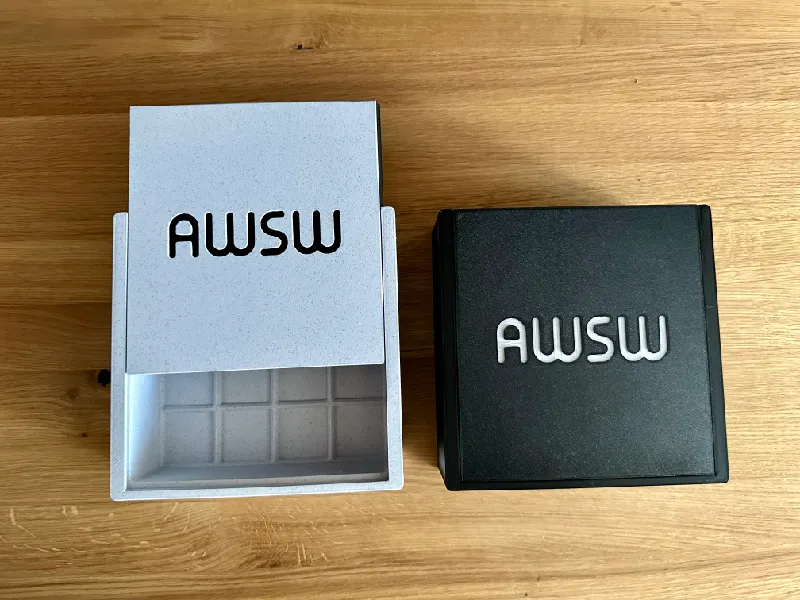

• If you are searching for a transport box for these containers, have a look here too:

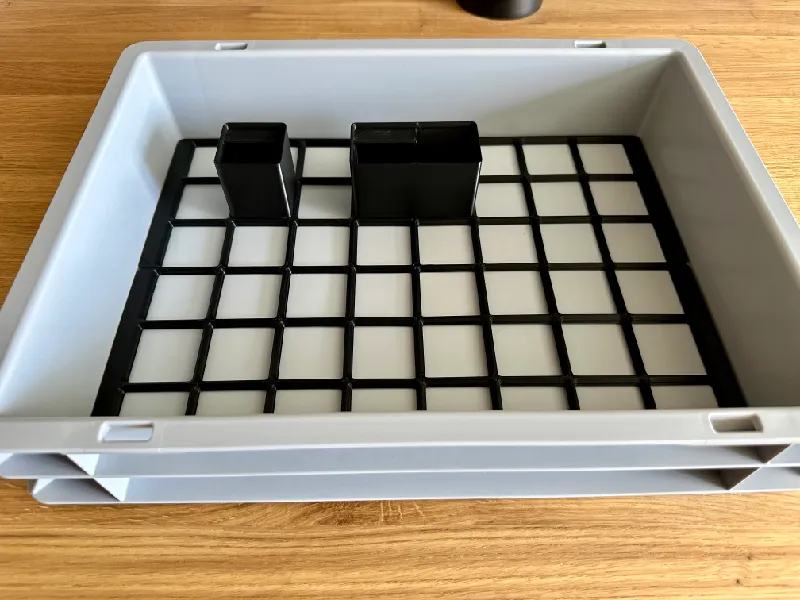

Some pictures:

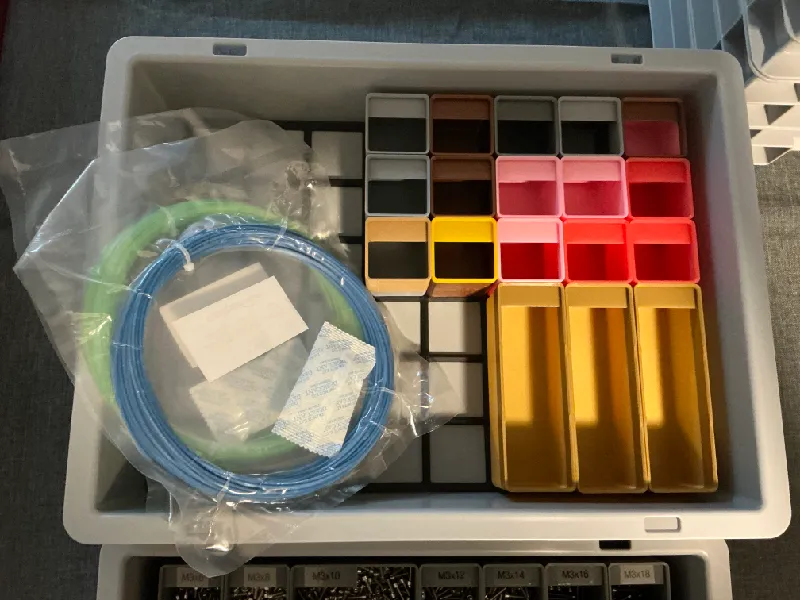

PS: Printing these 1x1 boxes is also a perfect way to get rid of filament samples or left over almost empty spools you might have laying around too….



Video:

Parts needed:

• As many as you like aidB Eurobox NextGen Economy 400x300x120mm and/or 400x300x75mm

Printing instructions:

• 0.2 speed profile
• No brim
• No supports
• Textured sheet used


Happy printing =)
