Modular Desk Fan 120mm (Optional Parkside X20V Mount)

Overview:

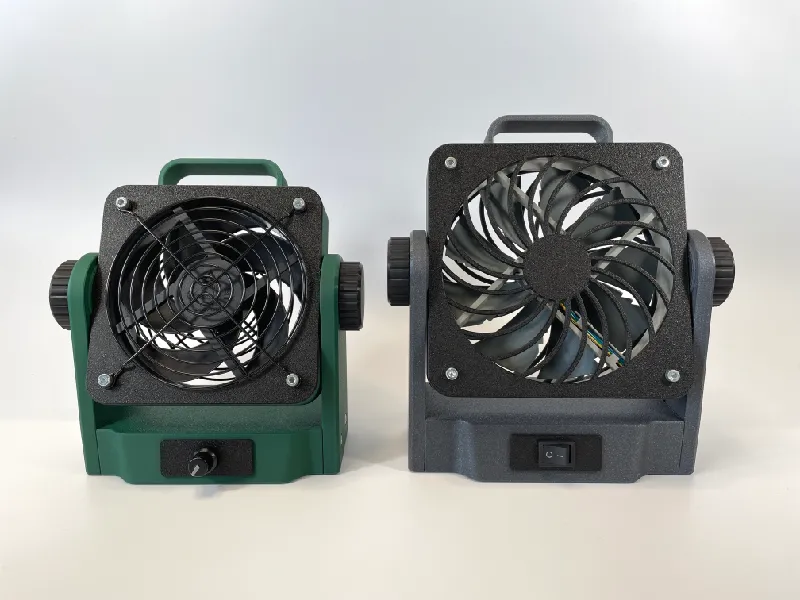

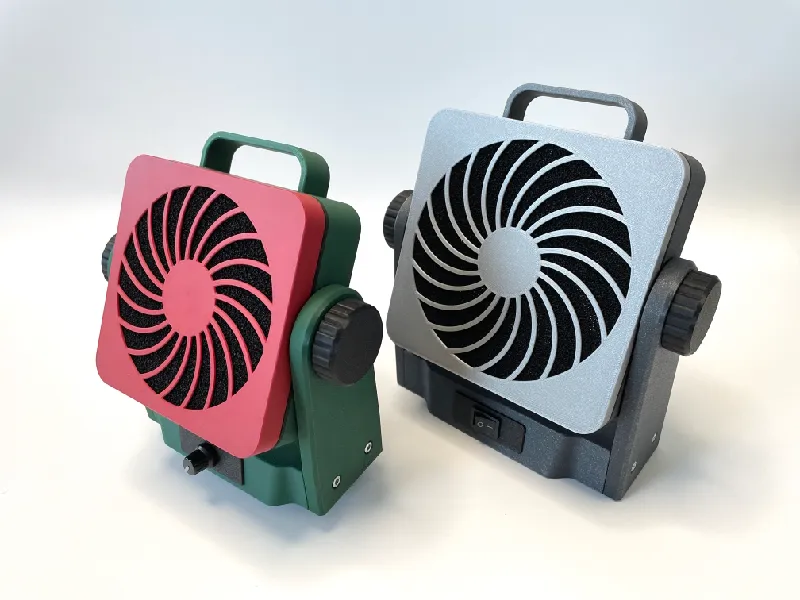

This is 3D-printed desk fan, designed to seamlessly blend functionality and style. Built around a powerful 120mm computer fan, this versatile device is perfect for keeping you cool or for fume extraction during soldering and other tasks. It has customizable airflow options and modular components. Whether you need a gentle breeze or a more powerful cooling effect, this fan can be tailored to meet your needs, making it an ideal addition to any workspace.

What sets this desk fan apart is its modular design, offering flexibility in both power and control options. You can choose between a simple on/off switch or a sophisticated speed controller to manage airflow precisely. The fan is compatible with various power sources, including a standard 12V adapter or a USB-C Power Delivery connection. It can be also mounted on top of the Parkside X20V battery.

This is the smaller brother of Modular Desk Fan 140mm.

Bill of Material:

• Base
  • Desk_Fan_120mm_Base
  • Option 1: Standard
    • Desk_Fan_120mm_Base_Cover
  • Option 2: Parkside X20V battery
    • Desk_Fan_120mm_Base_Cover_Battery
    • Battery_Connector
    • 4x M3x15mm Allen Bolt
    • 4x M3 Nut
    • 2x Male Faston terminals 6.3x0.8mm
    • 15cm AWG20 wires
  • 4x M4x20mm Allen Bolt
  • 4x M4 Nut
  • 4x M2.6x6mm self-tapping screw
  • (Optional) 4x Rubber Feet 10mm diameter

• Fan Holder
  • Option 1: Cooling Fan 120x25mm
    • Desk_Fan_120mm_Fan_Holder_Part1 or Desk_Fan_120mm_Fan_Holder_No_Grill_Part1
    • Desk_Fan_120mm_Fan_Holder_Part2 or Desk_Fan_120mm_Fan_Holder_No_Grill_Part2
    • Fan i.e. ARCTIC P12 Max, Noctua NF-P12 PWM, …
    • 4x M4x35mm Allen Bolt (M4x40mm if you use the metal grill)
  • 4x M4 Nut
  • 4x Desk_Fan_Nut_Cover or Desk_Fan_Nut_Cover_Grill
  • (Optional) 2x Metal Grill 120mm
  • (Optional) Airflow amplifier

• Side
  • Desk_Fan_120mm_Side_Part1
  • Desk_Fan_120mm_Side_Part2
  • 2x Desk_Fan_Nut

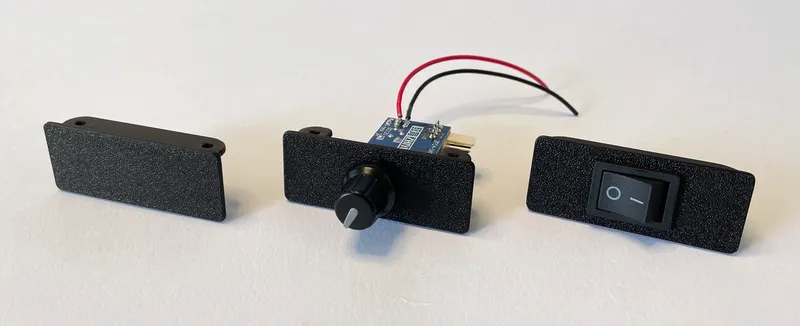

• Front panel
  • Option 1: Blank
    • Desk_Fan_Front_Module_Blank
    • 2x M2.6x6mm self-tapping screw
  • Option 2: Rocker Switch
    • Desk_Fan_Front_Module_Switch
    • Rocker switch 21x15mm
    • 2x M2.6x6mm self-tapping screw
  • Option 3: PWM signal generator
    • Desk_Fan_Front_Module_PWM
    • PWM Fan Speed Motor Controller
    • 2x M2.6x6mm self-tapping screw
  • Option 4: PWM driver
    • Comming soon

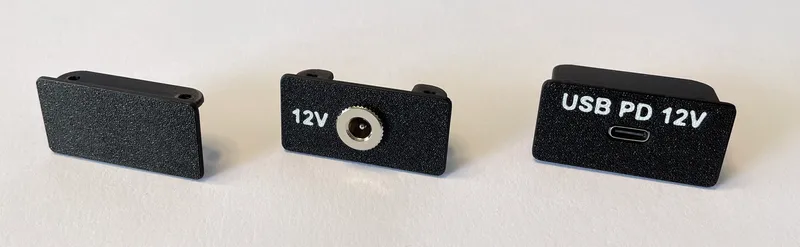

• Rear panel
  • Option 1: Blank
    • Desk_Fan_Back_Module_Blank
    • 2x M2.6x6mm self-tapping screw
  • Option 2: DC Jack
    • Desk_Fan_Back_Module_DC_Jack_11mm
    • DC connector 5.5x2.1mm (Type D)
    • 2x M2.6x6mm self-tapping screw
  • Option 3: USB-C Power Delivery (12V)
    • Desk_Fan_Back_Module_USB_PD
    • USB-C Power Delivery Trigger module 12V
    • 4x M2.6x6mm self-tapping screw
  • Option 4: USB-C connector (5V)
    • Comming soon
  • Option 5: Rocker Switch & Step-Down Convertor (This is needed for the Parkside X20V battery)
    • Desk_Fan_Back_Module_Switch_Stepdown
    • Step-Down Convertor
    • Rocker switch 21x15mm
    • 4x M2.6x6mm self-tapping screw

Assembly Instruction:

1. Print all the required parts.
2. Clean the parts and drill any closed holes.
3. Insert the computer fan into the fan holder. There is a small clearance in the holder to accommodate the fan with rubber dampers. If needed, you can use small spacers to fill in the clearance.
4. Run the fan cable through the side hole and downwards.
5. Cover the fan holder. Optionally, add the metal grill(s) or a flow amplifier, and secure everything together using four M4 screws and nuts.
6. Press the nut covers onto the nuts.
7. Attach the side plates to both sides. Place the wire into the groove and slightly tighten the plates with the large plastic nuts.
8. Insert four M4 nuts into the hexagon holes in the base.
9. Assemble the rear panel. For version with Parkside X20V battery mount see below.
10. Assemble the front panel.
11. Insert the rear and front panels into the base and secure them in position with self-tapping screws.
12. Connect the power supply to the power switch or PWM controller.
13. Run the fan wire through the side hole and position the base between the side plates.
14. Secure the base to the side plates with four M4 screws.
15. Connect the fan to the power switch or PWM controller.
16. Attach the base cover using self-tapping screws.
17. Glue the rubber feet onto the base.


Instructions for Parkside X20V battery mount:

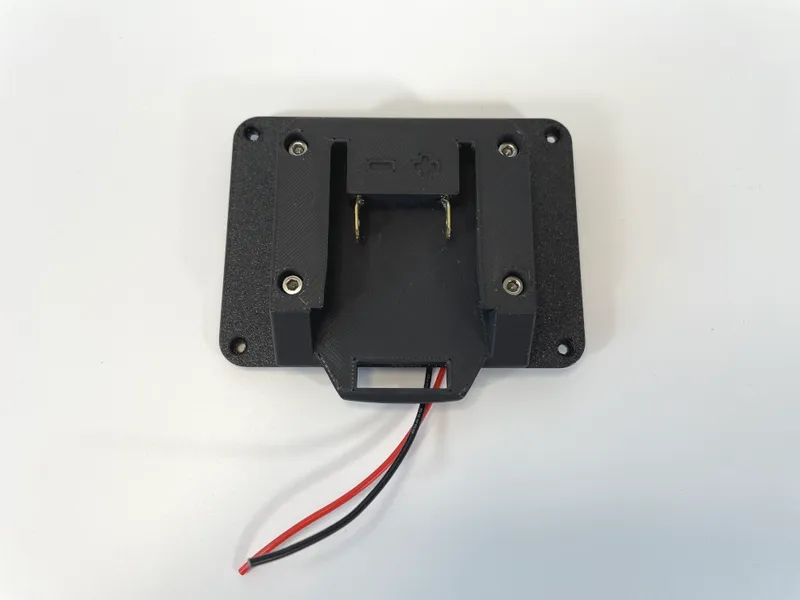

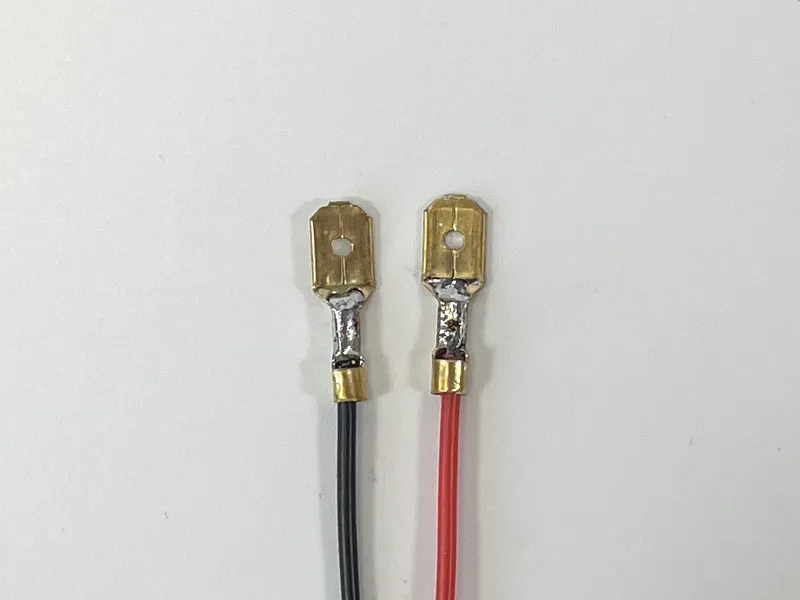

1. Solder 2 faston terminals to about 15cm long wires.



2. Push the wires throught the Battery_Connector block and press the faston terminals into the body (you can heat up little bit the faston terminals).
3. Press 4 pcs M3 nut into Desk_Fan_120mm_Base_Cover_Battery.
4. Screw the battery connector block and base cover together using 4 pcs of M3x15mm screw.

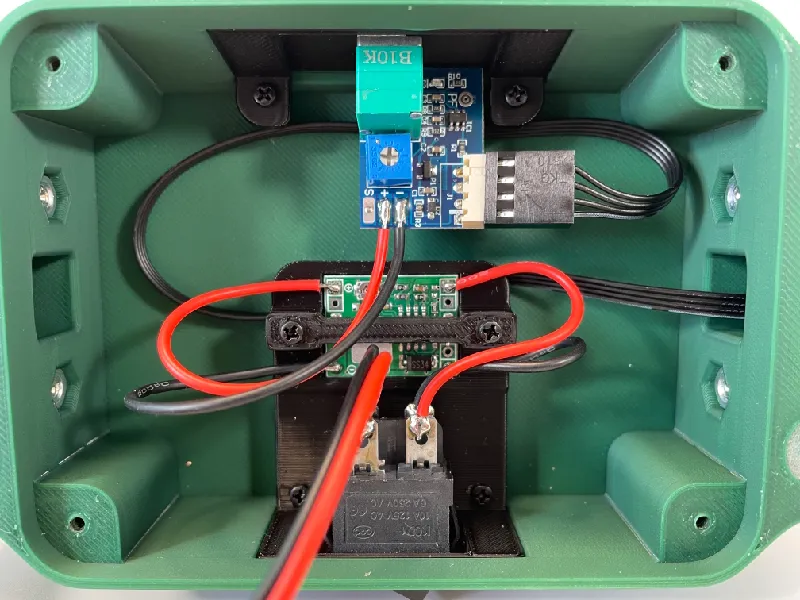

5. Mount the Step Down module on the Desk_Fan_Back_Module_Switch_Stepdown part.
6. Connect the rocker switch with the Step Down module by two short wires.
7. Solder the wires from battery to the rocker switch. Pay attention to the polarity.
8. Temporarily connect the battery, switch on the rocker switch and adjust the output voltage from the Step Down convertor to 12V using a voltemeter.
9. If PWM signal generator or PWM driver is used solder two wires from the Step Down module output to input of the module, otherwise connect the fan directly to the Step Down module output.



Filter cover which can be easily attached to filter out fumes during soldering can be found here.
