GoPro Compatible Mount for Ikea Skadis with T-Nut
Remixed @6d6178 original model as the tolerances were a little too tight.
11
34
0
143
updated August 9, 2024
Description
PDFCopied the below from the source file (check out the original model designer)
@6d6178 - Original file - Thank you
Action cameras need action mounts! This is a very strong mount for IKEA SKÅDIS pegboards that is compatible with GoPro cameras and accessories as well as the Modular Mount System. It uses the Skadis T-Nuts for a very secure hold and easy installation.
| Read more about the Skadis T-Nuts Mounting System and check out the Skadis T-Nuts Collection for more Skadis accessories that use T-Nuts. |
- Check out the Modular Mounting System Arms for compatible arms and knobs.
- You can use any GoPro-compatible knob, including original ones.
BOM
| Qty | Description | Sourcing |
|---|---|---|
| 2 | M2.5 DIN934 Hex Nut | Aliexpress |
| 2 | M2.5 Socket Head Cap Screw | Aliexpress |
Print 2 x T-Nuts for each.
Printing
The STL files are pre-rotated. Print them as-is.
- Layer height: 0.2mm
- Extrusion width: 0.4mm
- Perimeters: 6 (important for strength!)
- Infill: 20% or more
- Solid layers: 4 top, 4 bottom
- Supports: None
Assembly & Installation

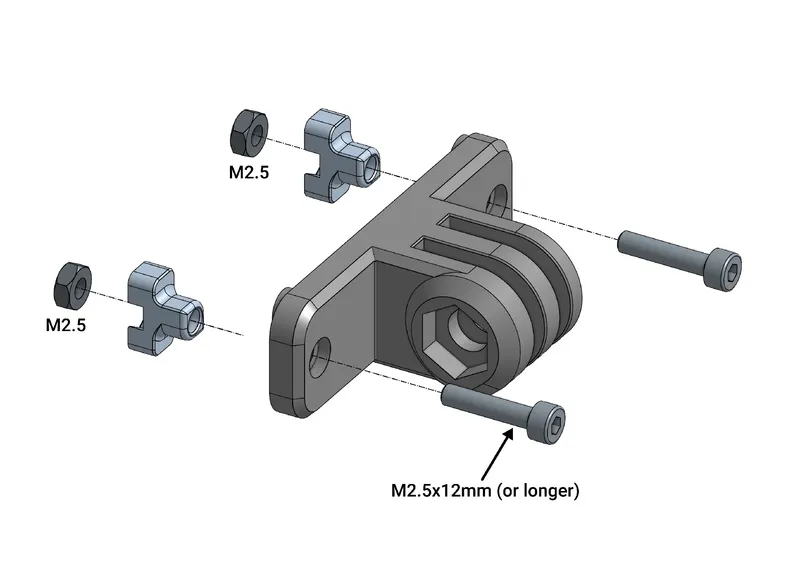

- Assemble the parts as shown below.
- Leave the T-Nuts loose so that there's at least 2mm between the T-Nut and the printed mount.
- For installation, orient the T-Nuts in the vertical position and stick them through the pegboard holes.
- Tighten the M2.5 screws. The T-Nut will automatically orient itself in the horizontal position.
Tags
Model origin
The author remixed this model.
Differences of the remix compared to the original
Slightly slacker tolerance on the mounting gaps.
