Armadillo off-road truck body for SCX10 III


Hard body that has been designed to fit the SCX10 III Base Camp builder's kit chassis (AXI03011). The body might fit other 313mm chassis as well but the mounts need to modified accordingly. There are step files included for the mounts in case you want to modify for other chassis.

Parts have been designed to be printable on a 180x180 printer.

3mf files and stl files that are oriented in the correct printing positions are included. The 3mf files have the needed supports already painted on to them.

The complete model/project can be found in the zip file from the “Other Files” section. This contains everything needed to print in one download.

A detailed step-by-step assembly manual is available here (or in the zip): https://docs.google.com/presentation/d/1LhOJXoZzJxAqCdthWAWUikAA-EAeHBXtCJQ2bQWVhv4



Truck specs

  • Dimensions:
    Width: 220mm (263mm with mirrors)
    Height: 240mm (body only) with 120mm wheels the total height is around 320mm depending on shock/spring setup.
    Length: 540mm
  • The truck has working doors that are kept shut with help of magnets. Also the bed doors, all 5 of them, can be folded down and can easily be unhinged/removed.
  • There is a roof rack where extra accesories can be attached, e.g. extra lights.
  • The battery can be accessed through a hatch in the bed floor to easily remove the battery when needing to re-charge/switch batteries.

The body is heavier than a lexan soft body so you might need stiffer springs for you shocks and/or harder foam inserts for the wheels to support the weight.

There are mods available for the truck, e.g. leds for the front bumper, different door looks and more coming. Check them out via my profile.



Required hardware list:

149 M2x4 screws
46 M2x6 screws
21 M2x8 screws
26 M2x10 screws
8 M2x12 screws
8 M2x16 screws

32 M3x6 screws
34 M3x8 screws
12 M3x10 screws
19 M3x12 screws
12 M3x16 screws
6 M3x20 screws
2 M3x30 screws

2 M5x10 screws

30 pcs 4x2mm round N45 magnets (4mm diameter, 2mm height)



Available modifications:

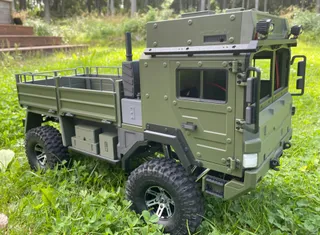

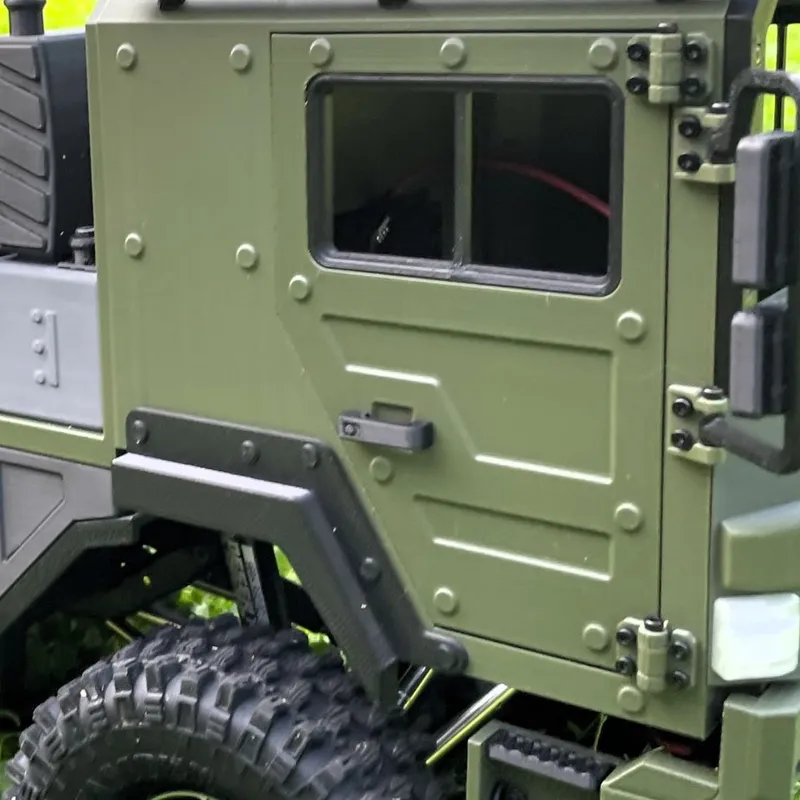

High visibility door mod, provides an alternative door look for your truck

https://www.printables.com/model/951131-high-visibility-door-mod-for-armadillo-off-road-tr

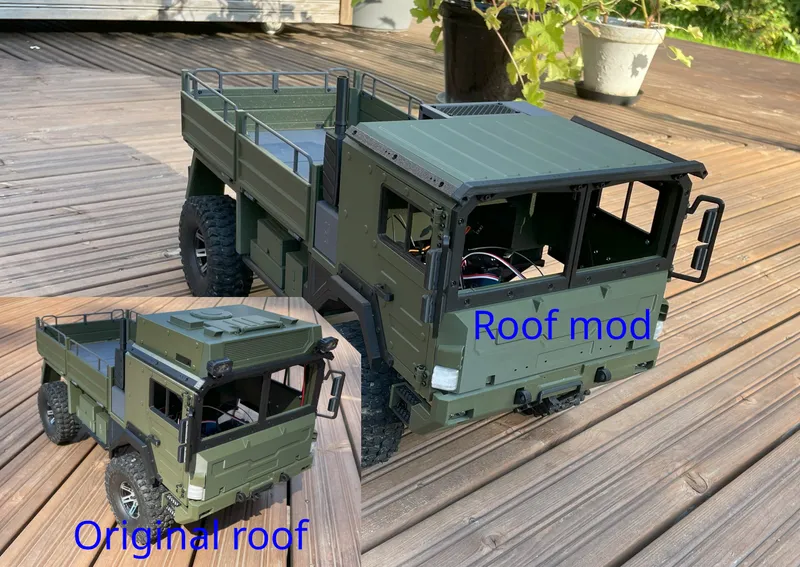

Flat roof modification ,provides an alternative look for the roof

https://www.printables.com/model/957040-flat-roof-mod-for-armadillo-off-road-truck-body

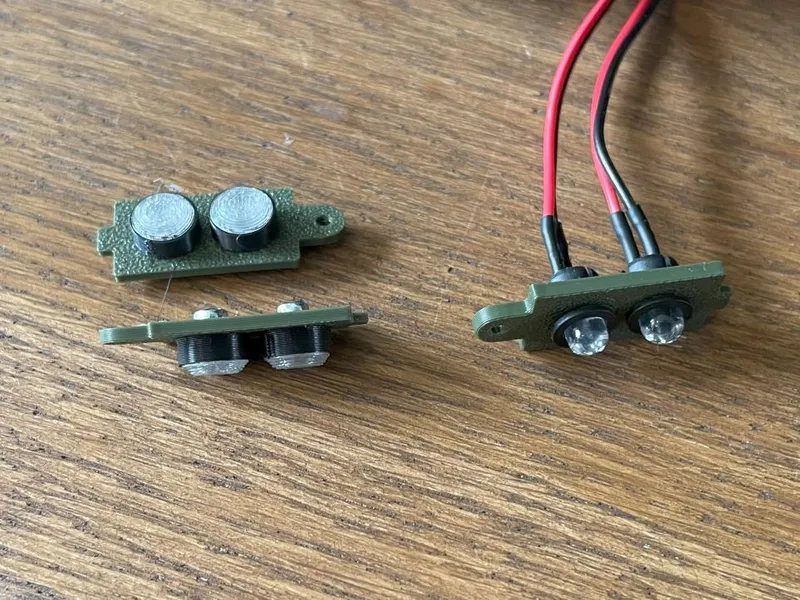

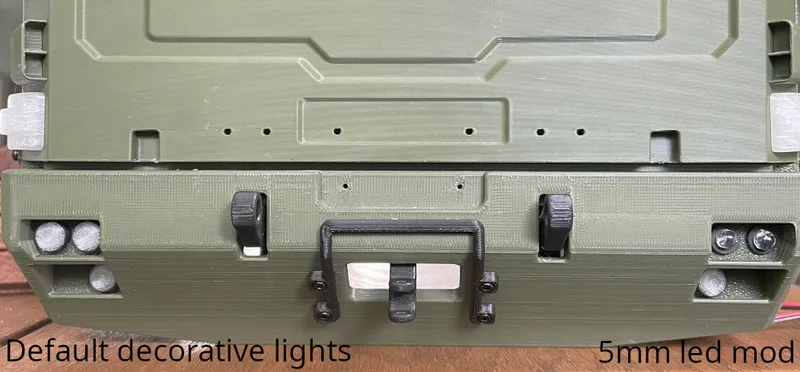

Front bumper 5mm LED lights

https://www.printables.com/model/951152-front-bumper-led-mod-for-armadillo-off-road-truck

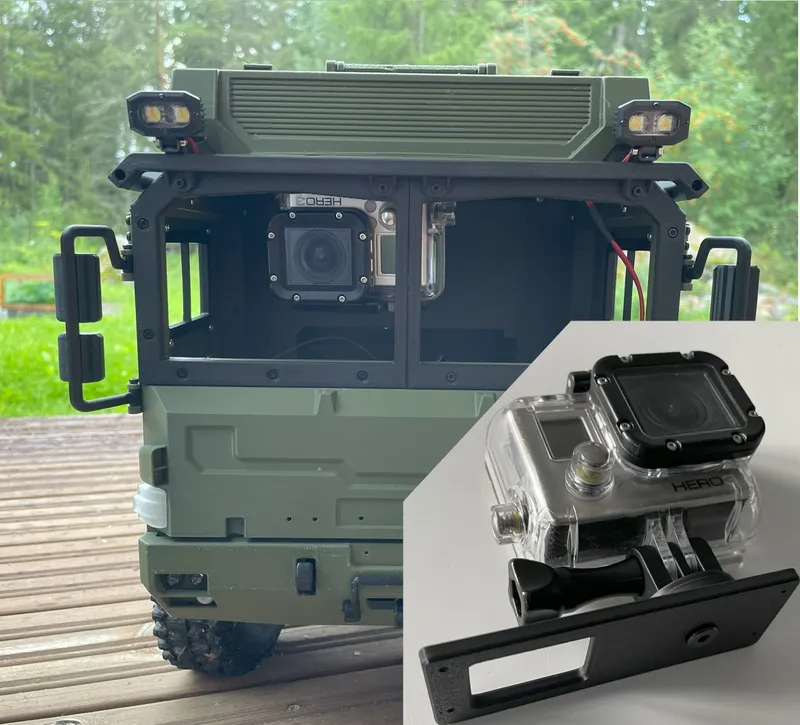

GoPro Internal mount

https://www.printables.com/model/964214-gopro-interior-mount-for-armadillo-truck
