Nitehawk-SB Cable Saver
Better safe than sorry, these tool heads move pretty fast. Will probably allow USB cable to last longer.
20
87
1
623
updated August 5, 2024
Description
PDFAbout LDO Nitehawk-SB Cable Saver

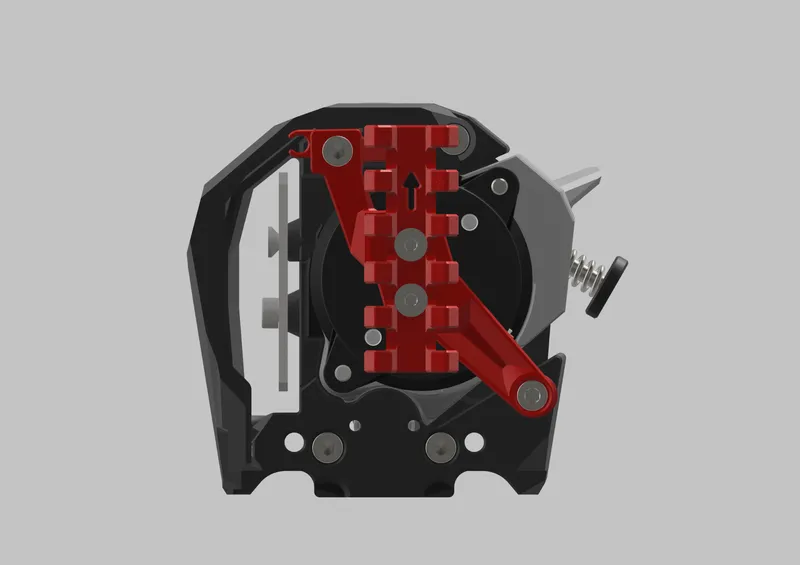

Better safe than sorry, these tool heads move pretty fast. This mod will probably allow Nitehwak's USB cable to last longer.
This model compliments with Galileo 2 + LDO Nitehawk SB USB cable strain relief / cable gland |  |
WHERE TO SOURCE MECHANICAL PARTS OF THE BUILD?
Self-source using BOM (bill of materials) |
| Mechanical parts | QTY |
|---|---|
| Zip ties (width 2mm) — Sourcing link | 3 |

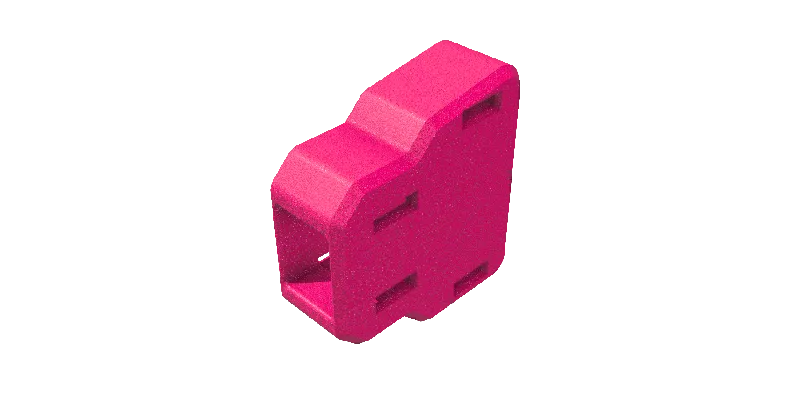

Printed Parts | |
|---|---|
| Printed parts | 2 |
PRINT GUIDELINES |
Here are print guidelines for you to follow in order to have decent success with printing parts:
| 3D PRINTING PROCESS | FDM |
| INFILL TYPE | Grid, Gyroid, Honeycomb, Triangle or Cubic |
| MATERIAL | ASA, ASA-CF, ABS, ABS-CF |
| INFILL PERCENTAGE | 40% |
| LAYER HEIGHT | Recommended: 0.2mm |
| WALL COUNT | Recommended: 4 |
| SOLID TOP/BOTTOM LAYERS | Recommended: 5 |
| EXTRUSION WIDTH | Forced 0.4mm |
Printing notes:
- Keep orientation on plate as in STL files
File naming for printed parts:
The parts use this naming convention:
- ACCENT COLOR — Files have “[a]” to the front of any STL file that is intended to be printed with accent color.
- COUNT OF PARTS — Files have “x1” at the end of any STL file. The number represents the count of identical parts to be printed.
HOW TO SUPPORT THE PROJECT |
- Press like and download model files.
- Consider becoming member of Iconic FAB Club on Printables and get all Paid models and Manuals for single membership fee, starting from $5.
CHANGELOG |
| Date | Change |
|---|---|
| 05.08.2024 | Initial version |
