Robot self watering planter - fixed/split for printing

Materials:

1) Pliers (to remove support material), have a look at the supplied gcode for examples

2) Sanding paper (to finish the surface) - but not necessary.

3) Paint (if you cannot print it with coloured filament)

Assembly:

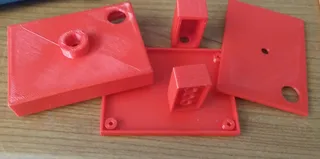

1. Assemble the planter as shown below.

2. Before you add soil, insert two cotton threads passing through the two holes at the bottom of the inner container. The best way is to tie a knot at the center of the thread so that it does not slip away to the bottom. Make sure there is enough length above and below the hole.

3. This thread keeps the soil moist by sucking water from the bottom container through capillary action.

You are ready to plant your favourite plant!

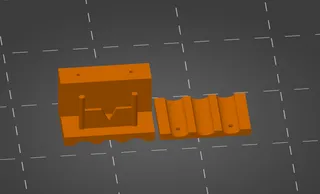

This version splits out the parts that need to be printed into their own STL files. The original is all merged and unprintable by itself.
