K1C (and later K1) adapters to fit my (V2 & V3) 270 degree door front hinges

Adapter plates for allowing K1C and later releases of the K1 to use my 270 degree hinges.

-----------------------------------------------------------------------------------------------------------------

These two (small) side panel hinge components replace the two larger side portions of the K1/K1 Max 270 degree hinge sets allowing the fitment of my 270 degree hinges to the K1C type 20mm corner screw enclosures.

Note:- Later revisions of the standard K1 started arriving with K1C frames. The spacing between the side panel corner screws on a Regular K1 was 60mm, later models of the K1 use 20mm spacing. K1 owners discovering that they have the more recent 20mm corner screw spacing will also need to use these K1C adapters to use my 270 degree hinge sets.

For more detailed information, check the main hinge information.

The Main 270 degree hinge components are here:-

270 Degree Hinges for K1 and K1 Max. Easy print option in component form, Not print in place. by Diablo | Download free STL model | Printables.com

--------------------------------------------------------------------------------------------------------------

The 3rd file named K1 demo in this file set is solely here to enable the 3d viewer on printables to show the parts and the hinges together.

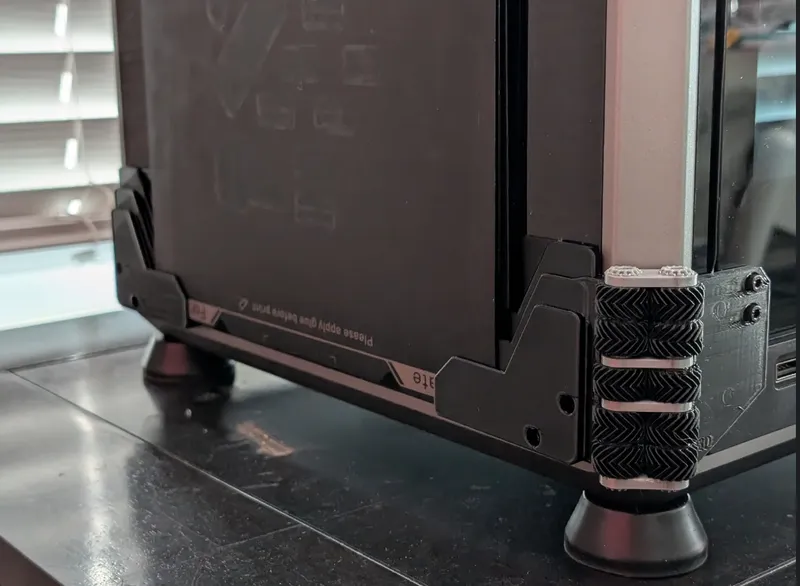

Given that the hinges are locked down in the licence, ‘C3D Garage’ asked if he could share a remake of the lower side hinge piece with the facility to store bed plates on the K1C. It's a useful option and better than the version I use myself on the max (my unreleased version was for a thick glass bed plus one flexible and was only for the max). Rather than reinvent the wheel I have ok'd his remix for the K1 and K1C and it can be found here https://www.printables.com/model/1071783-k1k1c-270-hinge-adapter-and-bed-plate-holder-combo

I can't test the prints myself as I don't currently have access to either of the smaller K printers and am not involved in the bed plate holder creation, but it looks like a good option to have for those with extra bed plates who may want that side storage functionality.
