Voron Enderwire - Full 2020 extrusion frame (Ender 3 Non-pro)

I was not happy with the way the stock Enderwire's (nonPRO) enclosure panels are mounted.
VHB tape is not a good way to make the whole assembly rigid.

Therefore I created this mod to fully implement a frame out of 2020 extrusions while still not increasing the overall footprint. Means - the original panels should still be compatible (you only need to screw them).

_____________________________________________________

Short assembly movie on TikTok

______________________________________________________

The building process is pretty much straightforward :

1. Replace stock front right and front left skirts
2. Replace stock rear right and rear left skirts
3. Assemble the front extrusion frame
4. Assemble the rear extrusion frame
5. Screw both frames to the front and back skirts
   1. → Front with 4x M4x8mm screws
   2. → Back with 4x M4x12mm screws
6. Place the front top corners and screw them with 8x M4x12mm screws
7. Place the rear top corners and screw them with 8x M4x12mm screws

     (8. In case you are using Nevermore V4 filters, I provided the corresponsing brackets. Fix them with 2x M4x8mm screws)

Extrusion frame will be screwed together like this :

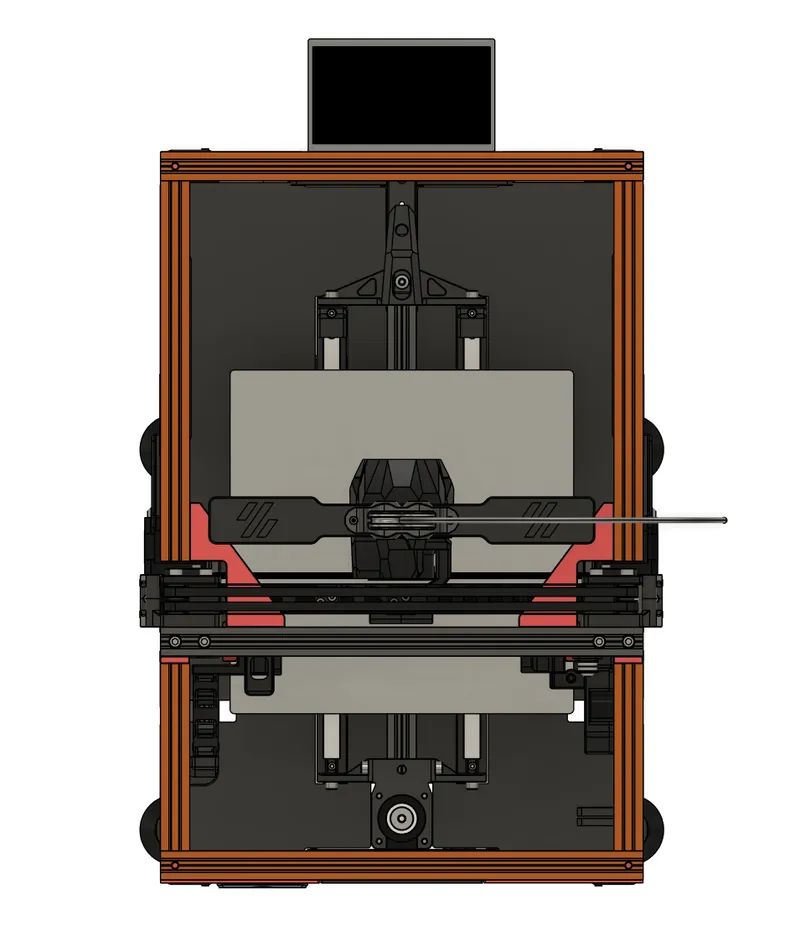

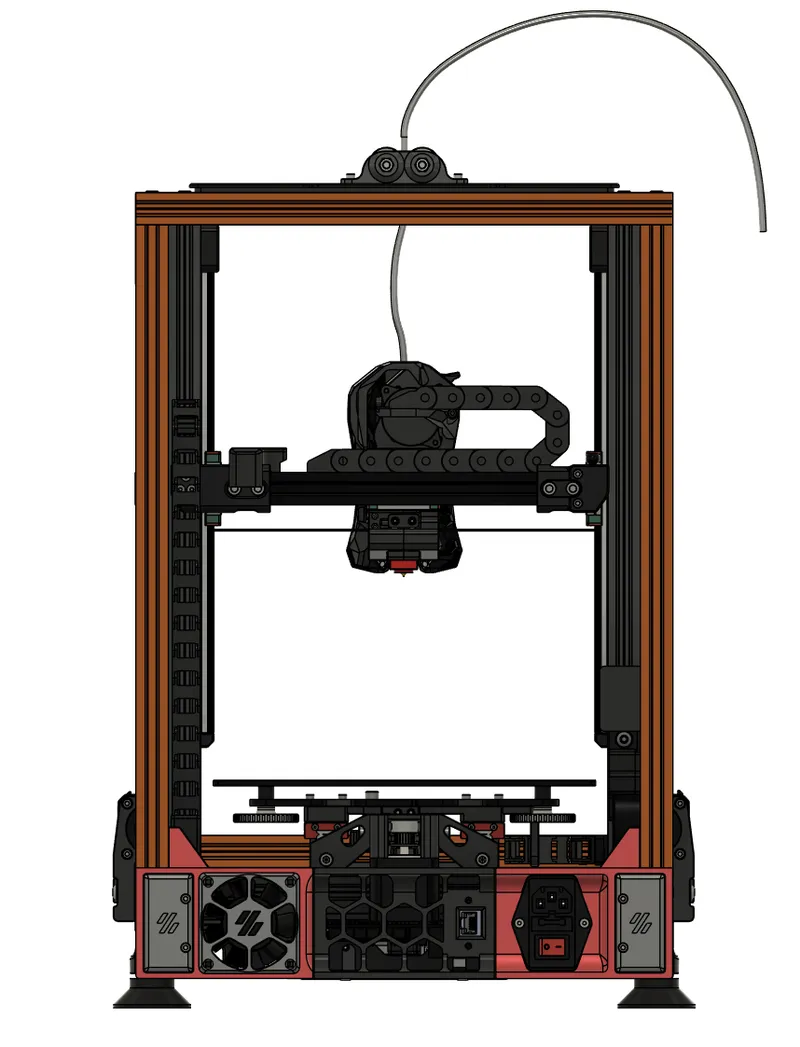

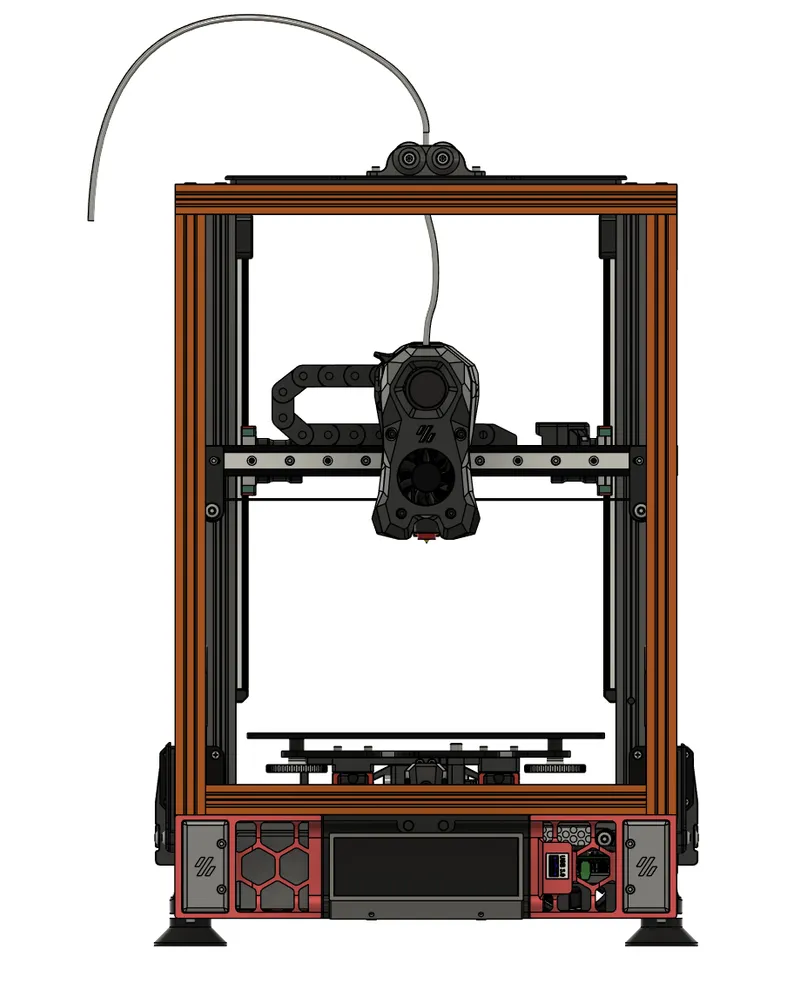

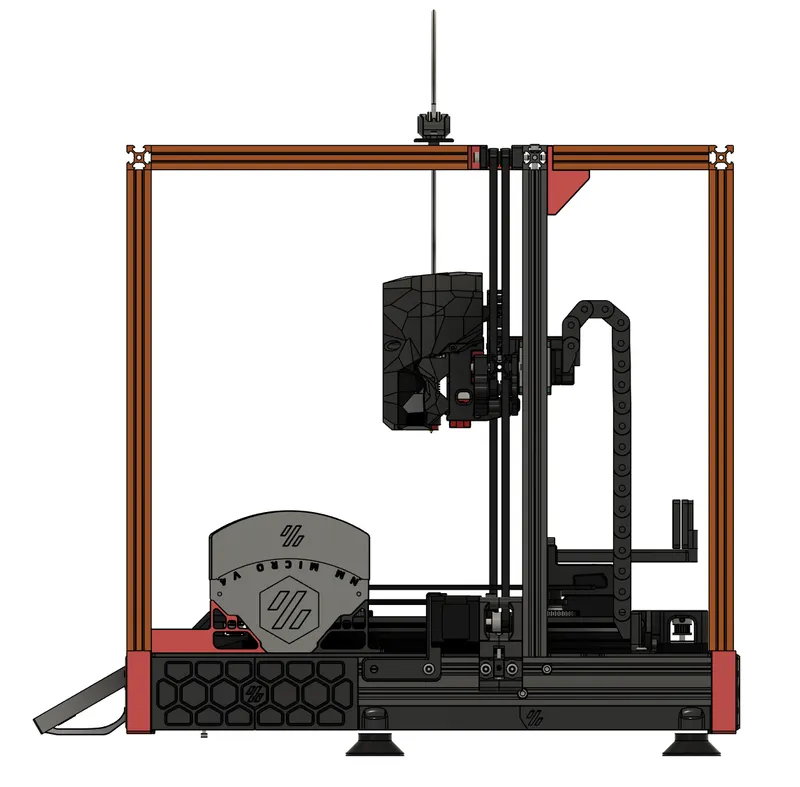

CAD Assembly :

Note - some holes are missing in the CAD pictures

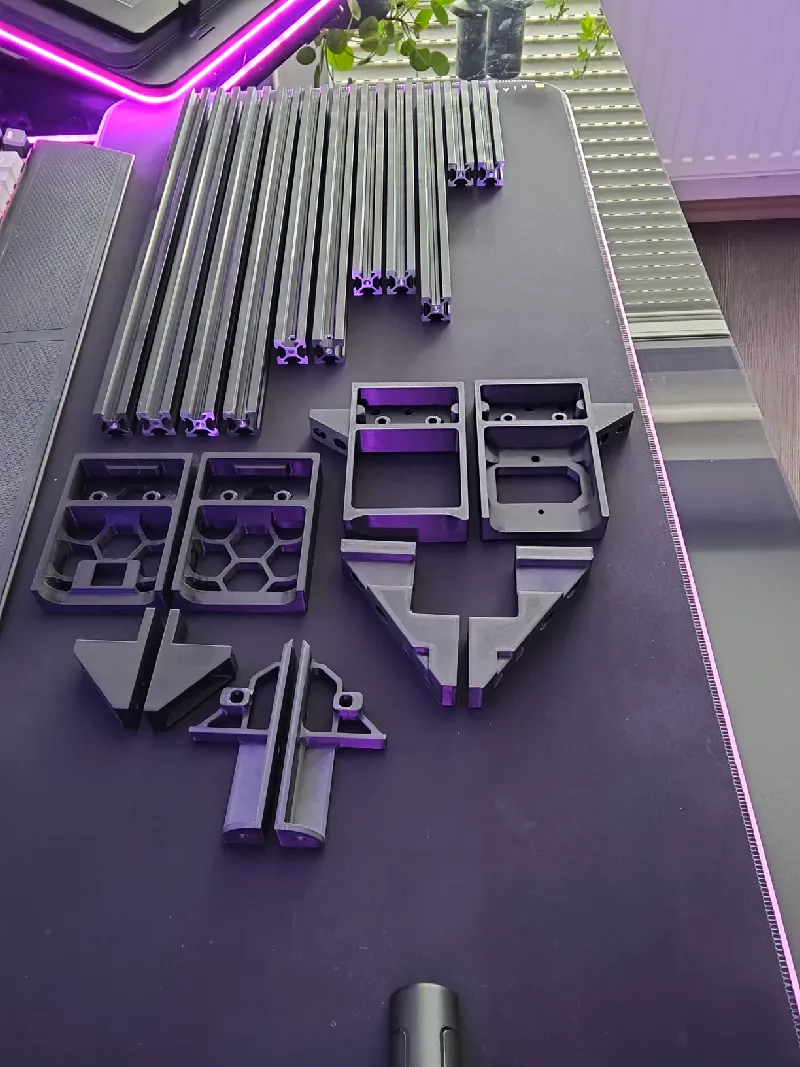

BOM:

• 2x 330mm 2020 extrusion (Both ends need 4.2mm holes to insert the hex key)
• 2x 395mm 2020 extrusion (M5 thread at one end)
• 2x 395mm 2020 extrusion (M5 thread at one end and 4,2mm hole to insert hex key at the opposite side)
• 1x 290mm 2020 extrusion (M5 thread at both ends)
• 2x 260mm 2020 extrusion (M5 thread at one end)
• 2x 128mm 2020 extrusion (M5 thread at one end)

___________________________________________________________________________

• 20x M4x12mm screw
• 6x M4x8mm screw
• 8x M5x10mm screw (flathead - for inserting into extrusion)
• 26x M4 T-Nut

Additional parts:

• All printed parts → Recommend ABS/ASA

Note - Pictured front skirts look different, I am using a version with a keystone
