4-in-row traveller game

Hello,

my daughter liked the 4-in-row game at school, so we made our own version.

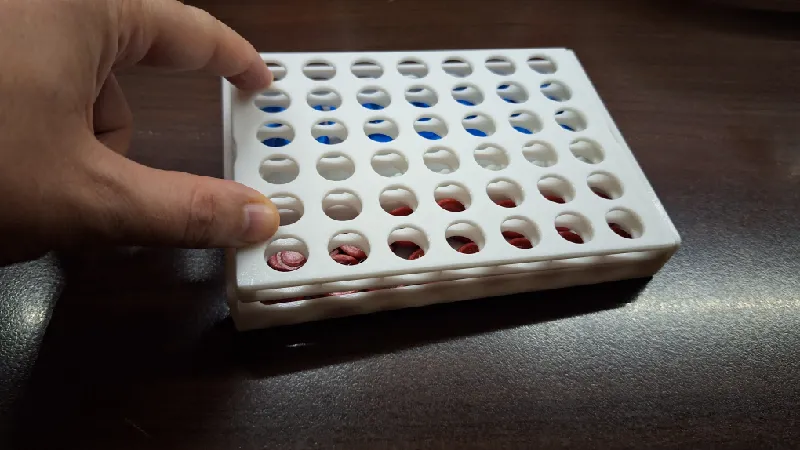

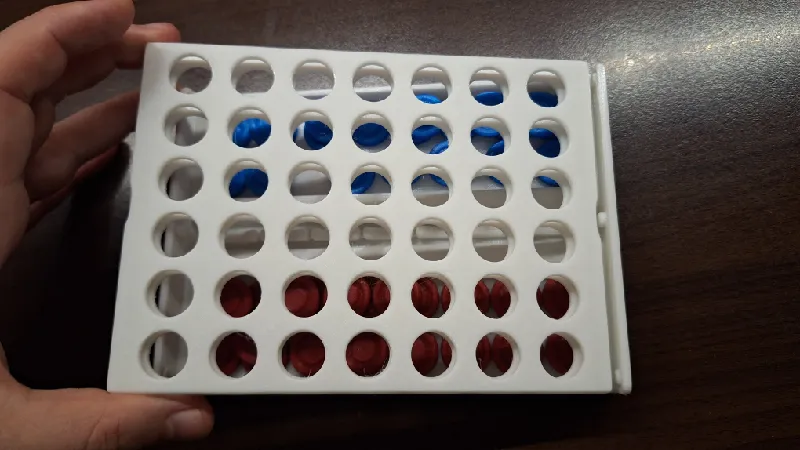

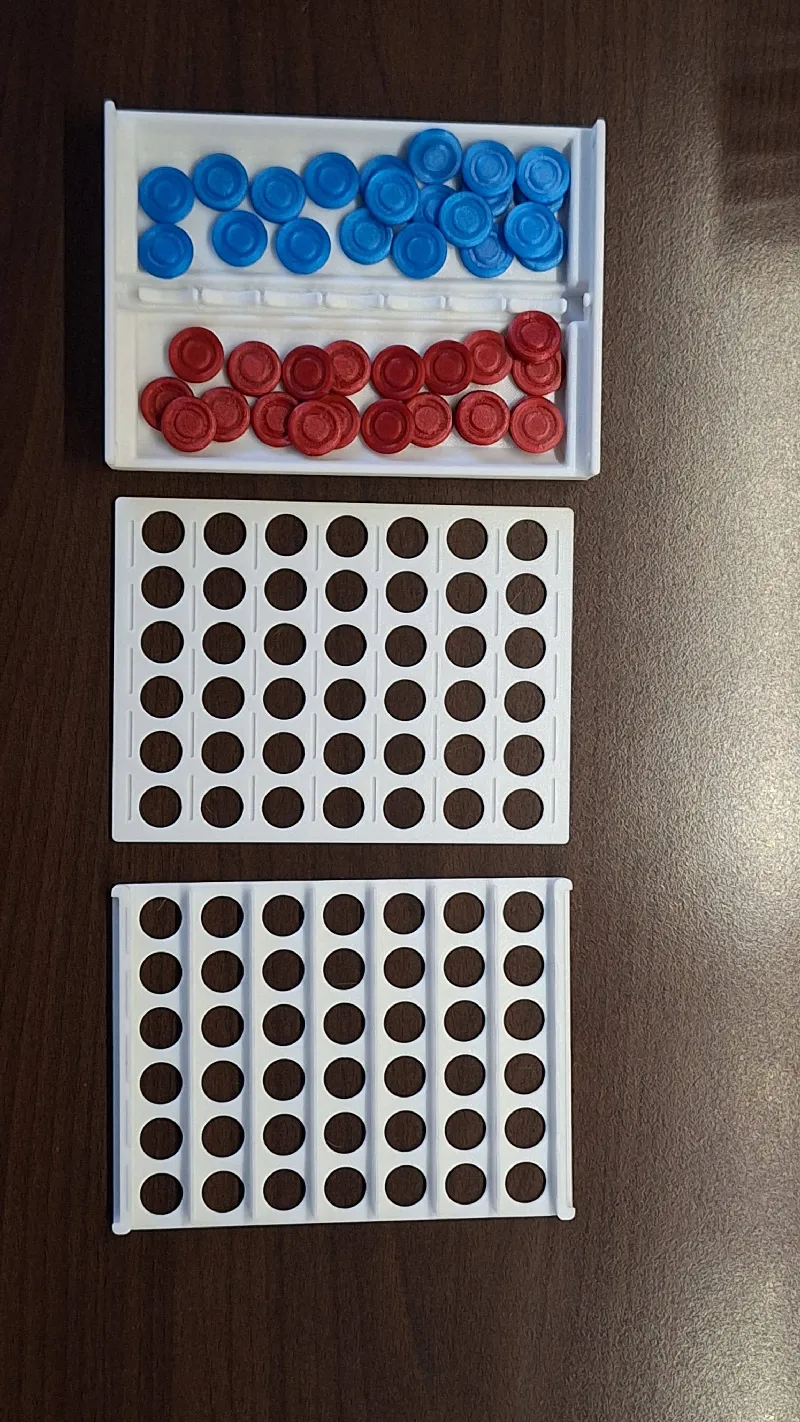

The playing surface (board) is inserted into the base. Just slide, rotate and push to hear a click. The latch holds it firmly in the open position and also in the transport position. There is a storage place for chips in the base.

For the game, it is necessary to have 21 chips for each player

Chips size: Diameter 18mm, thick 4,7mm.

How to print:

I prepared two versions:

Both versions: 0,15mm layer, 20% infill

1.Board glued from parts A and B (better for Bed slinger printers - like Prusa)

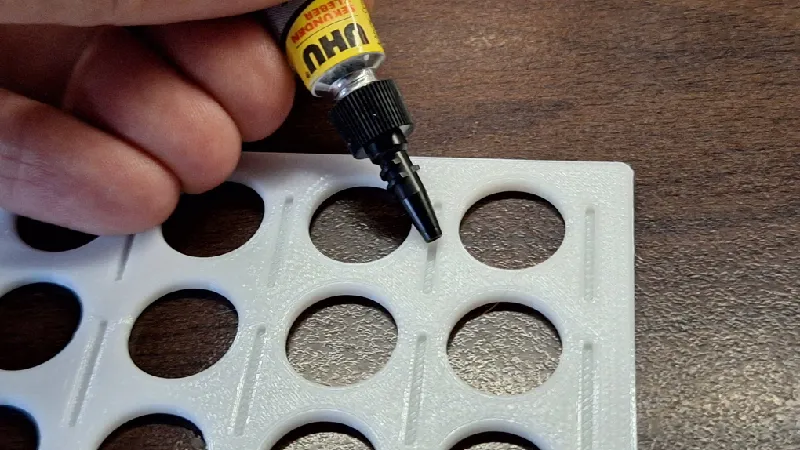

• no supports needed, just glue two parts using superglue
• Base with also no supports. Locking pins are made by bridge

2. Board in one place (A+B) Print Vertical With organic supports

Base withno supports. Locking pins are made by bridge

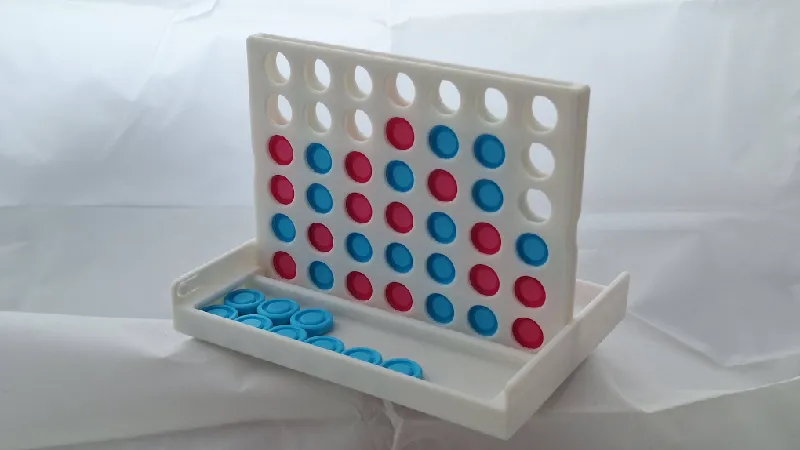

When the parts are printed, the game put it together. Place the board on the base and press the middle so that the board snaps into the base.

Happy printing and playing :-)
