Is there a document anywhere that explains what each part is for?
Raz's Desk Organizer
Modular Desk Shelf and Organizer
5,249
5254
39
139 k
updated
December 7, 2025
Makes
Comments
This project is awesome! I have the legs already attached to the shelf and it looks great. Question for you - I used the 157 shelf jig for the spacing. Are there drawers that also fit this spacing? Or is there only shelves? I like the spacing for the 157 shelf jig, and was hoping I could use shelves and drawers with this spacing. Thanks!
@trident727_11544 no sorry there no drawers for that spacing there is shelf and drawers for the standard leg spacing though. I’m glad you’re enjoying the project
Would have been nice if you clearly labeled the new symmetrical parts as such.
I've been printing on and off over the past few weeks for multiple organizers and now I have a bunch of parts with incompatible mounting holes and have to figure out what fits or doesn't fit and have to throw them out.
My own fault in the end, but could you put the old jigs and shelf rails back up? Or make a whole "OLD" folder?
Anyway, these are still of course awesome models and thank you.
@m00_4056037 apologies for the confusion, if you go to the other file section you can see a zip file called archive it has all the old files
@Amilcar_Gamez Oh I see, thanks for the help!

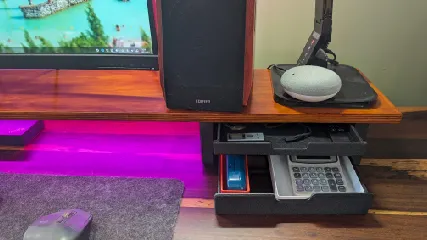

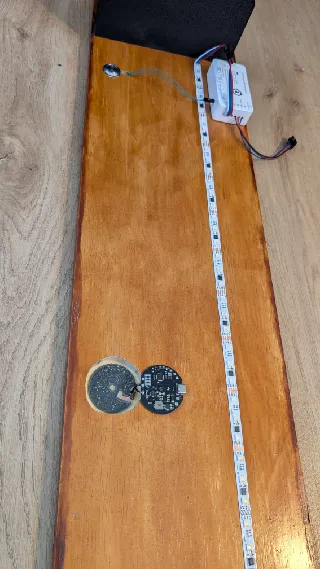

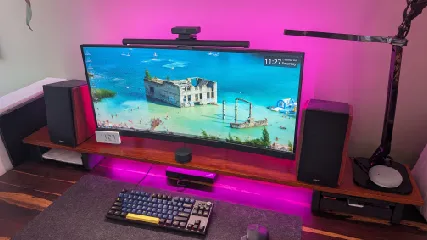

I used a spare piece of plywood I had, stained and varnished. I also routed out a hole for a phone charging pad, and put a strip of LEDs underneath which looks great!
You can also see my remix of the paper tray (to take A4 paper) and the laptop stand. See my profile for those! (edited)
This looks amazing! Well done, the led strip with the button is a very nice touch I might integrate that at some point
Hello! I'm very excited to build this (I bought a 3D printer just to print this job) and am going to acquire all the parts.
At my local ikea all the 7 7/8" boards are out of stock. Is it possible to follow this build and use a 11 3/4" (same board from Ikea) instead? (edited)
@Michael_3895970 i have versions of the legs and other pieces meat for the larger board from ikea so it will work just make sure you print the correct parts
Hello, I printed these feet:
-Table_Right Leg 115mmEM.3mf
and these rails:
Right Rail Large.3mf
Right Rail Small.3mf
The drawer doesn't fit, though. It's too high when I mount the rails.
I printed this drawer:
Large Tray.3mf
Can someone tell me where I can find the correct drawers in the file directory?
Thanks for your help and the great work!
❤️
@trinamicsstu_1948748 you need to print the rails according to the drawer you want, large for large and small for small all the files needed for the drawers are in the drawer folder

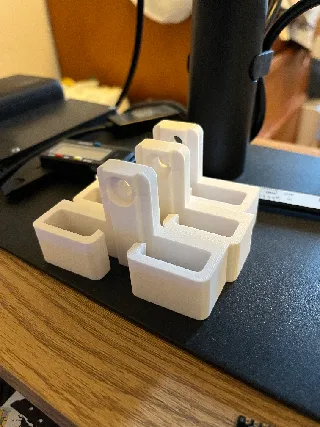

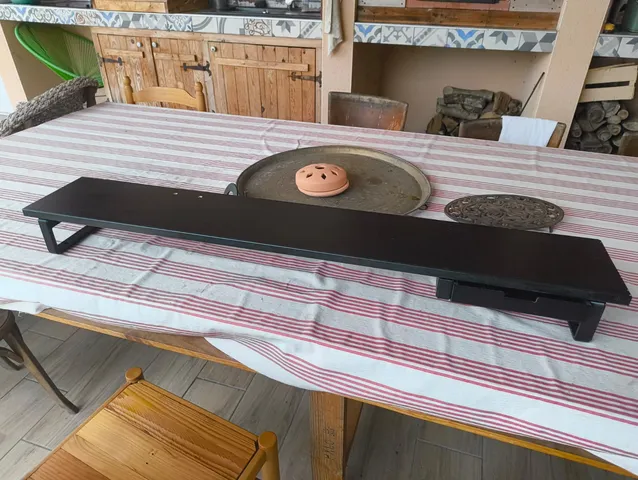

Just finished assembling everything!! Why aren’t the legs symmetric? It would simplify a lot of things: one file for the legs, one file for the jig, and no need to overthink which things to use, etc.
That’s a very good point, I guess I haven’t done it because it would require shifting the mounting wholes on pretty much every single part, but it can be done, thanks for you input! Also I see you printed my untested leg design; how do they look? It’s hard to tell but does the shelf top stick it beyond the legs like it should?
@Amilcar_Gamez I get the amount of work involved, but when I read the description I thought you were aiming for something simple and more or less universal. If I find the time, I’ll see what I can do to help automate the process.
As for the foot, no print issues at all, it fits perfectly. I ran it without supports on a Voron V2.4 350, draft profile, 0.24mm layer height. I’m pretty sure it would work fine at 0.28mm as well. Infill at 20–25% is more than enough in PETG; we’ll see over time if any deformation shows up.
The only problem I ran into: I only had a 190 mm board on hand, so I had to scale the models down a bit, not super convenient, especially since the templates seem to be made for Americans, hahaha !!
Keep up the good work. I showed may of my friends and they think this would be perfect for their set up.
