Raz's Desk Organizer:

Designed to be modular and expandable, Inspired by products from Grovemade and  Desky.



2024 Printables Awards Model Of the Year Nominee:

Thanks to all who nominated and voted for Raz's Desk Organizer in this years Printables Awards.  I appreciate the support, it keeps me motivated to come up with new ideas and projects! I have learned a lot from this project and plan to continue supporting it.



##################################################################

Shopping List
  •  Leg attachment hardware - 1/4-20 x 25/32 threaded wood inserts,  Hex Socket Drive 1/4-20 x 19/32" Screw-in Nuts
  • Threaded inserts for 3d Prints (for assembly) - M3x4x5 mm brass threaded inserts
  • Screws (for assembly) - M3 x 8 Hex Socket Flat Head Screws
  • Leg Feet (Optional but recommended) - Any feet will work as long as they are .7 inches or smaller
  • Mag Safe Charger (Optional) - Should work with any mag safe charger.
  • Designed around IKEA  7 7/8" BERGSHULT Shelf  choose between 47 inch or 31 inch.
  • Felt, sold at any hobby store/arts crafts isle. (Optional Upgrade)

##################################################################

Required Tools

  • Drill, with 3/8ths drill bit.
  • Soldering Iron
  • Allen Wrench set
  • Double Sided Tape

##################################################################

Print and Part List For Example in first Picture : Google Sheet

  • Will add more examples and builds in future, feel free to share yours! i can add them to this list.

##################################################################

Printing Details

  • Fuzzy Skin (Optional)
  • Infill - For Legs and Shelf Supports, 10% infill; For everything else 15% minimum infill recommended
  • Filament- Printed with Black Creality PLA. Note: PETG might be a better option for some of the accessories but no issues so far with PLA
  • Supports - Parts were designed to require minimal supports, orient them with flattest part touching build plate and enable supports everywhere.
Assembly Instructions/Tips

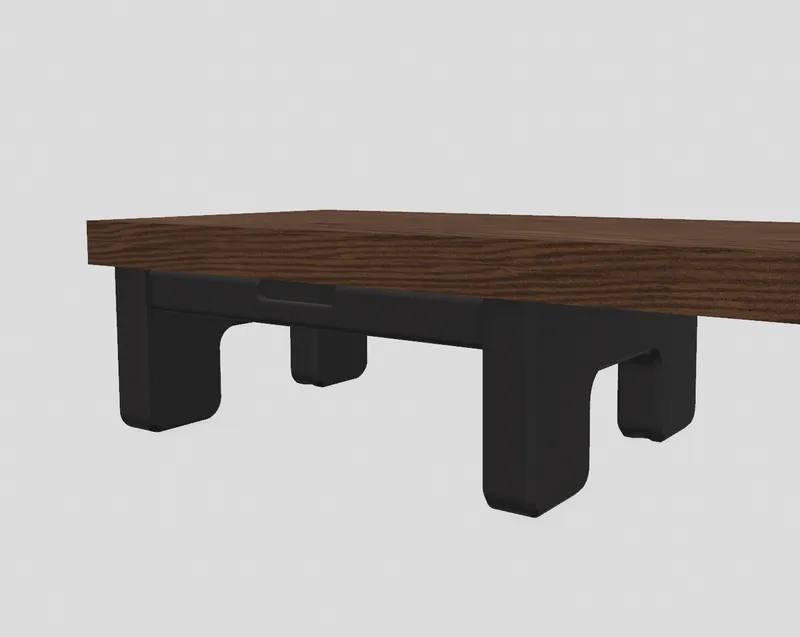

Legs

  • Print Jigs to help with mounting hole alignment. Tip: use double sided tape to fix on to surface, Use jigs with Left Right Labels facing the edge that will be facing you when on the desk.
  • Example of Jig usage-



  • Use 3/8ths drill bit to drill holes for Wood inserts.
  • Use Soldering iron to press threaded inserts into legs for mounting (this is optional if you do not plan on using DrawerTrays)
  • Use Hex Socket Drive 1/4-20 x 19/32" Screw-in Nuts  to attach legs to Ikea wood Shelf
  • Attach the drawer rails using flathead head hex screws

Bottom Mounted Shelves

  • The bottom mounted small shelves are friction assembled. Tip: The shelf part is keyed so make sure its aligned before adding pressure.
  • Use the "RazMade Table_Shelf Jig" to place the mounting holes
  • Recommended: You may run into issues with tolerances and the friction fit, Highly recommend considering this Remix for the shelves that use screws for assembling this piece.

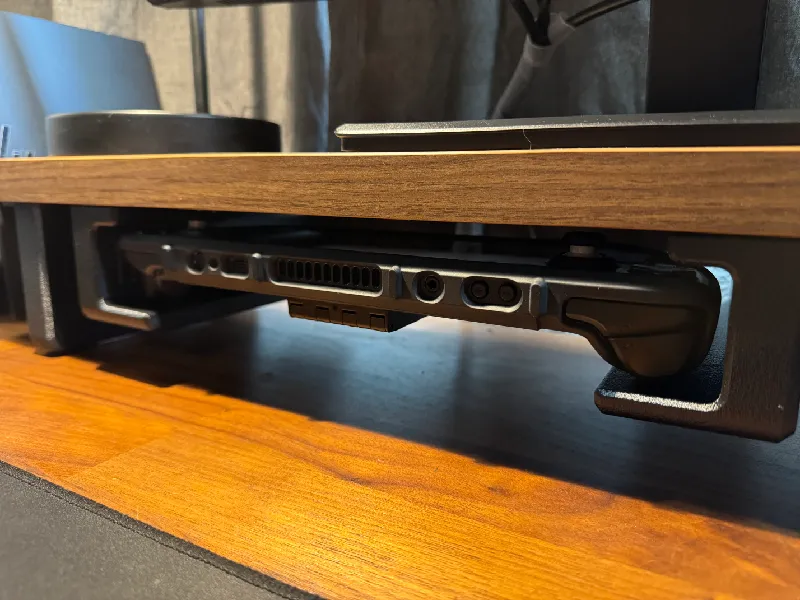

Peripheral Accessories( Stream Deck/Phone Mount)

  • Use "Leg Jig_LeftRight" to drill 1 hole for mounting accessories, use the hole that is closest to the edge of the IKEA shelf that will be facing you.
  • Place threaded wood insert in hole
  • attach Peripheral Mounts using Hex Socket Drive 1/4-20 x 19/32" Screw-in Nuts (Washer Optional)

Desk Tray

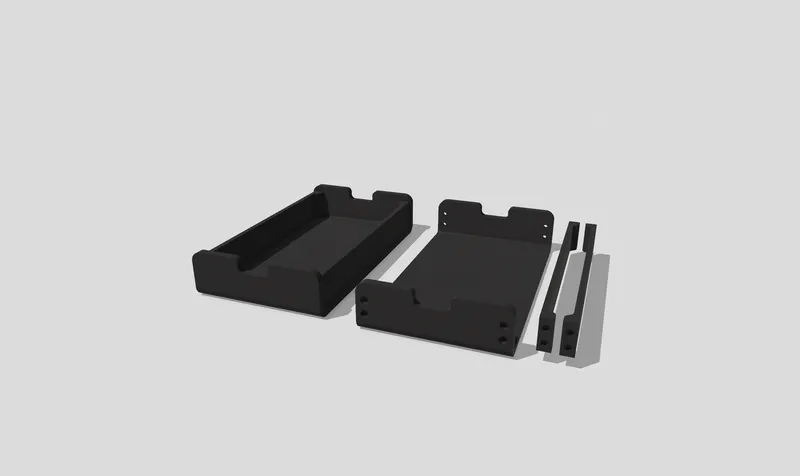

  • Push threaded inserts into “Desk Tray_TraySide_L” and "Desk Tray_TraySide_R"
  • Screw TraySide into place
  • Tip: If you plan on lining tray with felt, use double sided tape to attach it before putting on the tray sides.

Note

  • I have created some solid versions of models which would normally require threaded inserts and assembly, the versions required assembly were designed to print faster with less supports.

##################################################################

Size Options

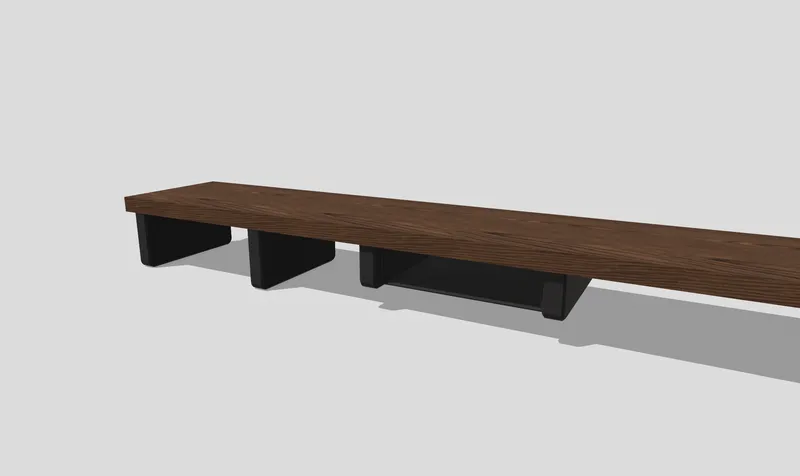

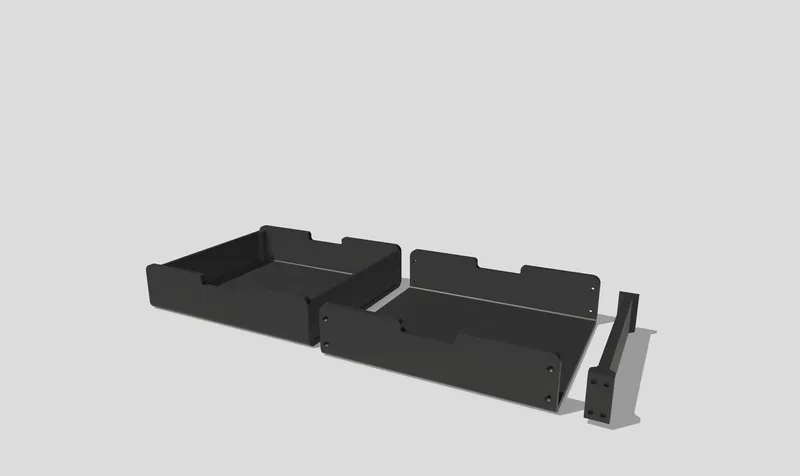

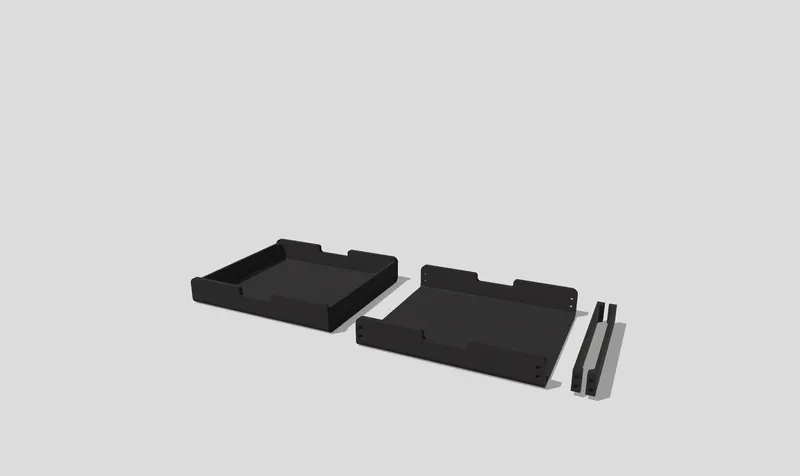

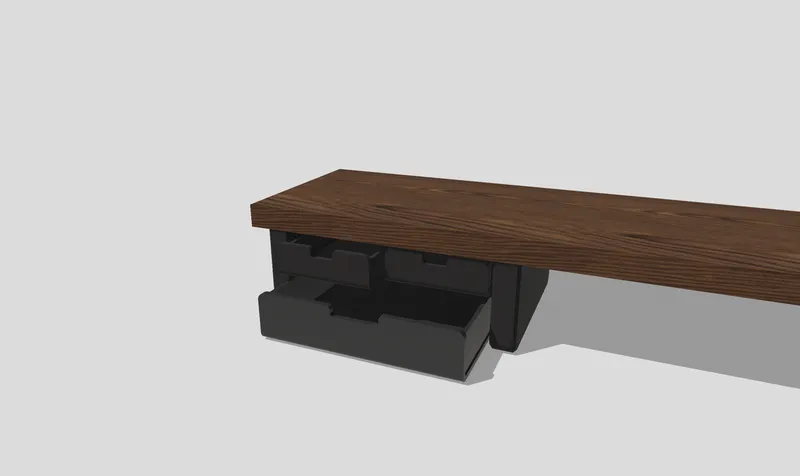

  • Drawers - have two different size options, make sure you print the matching rails.

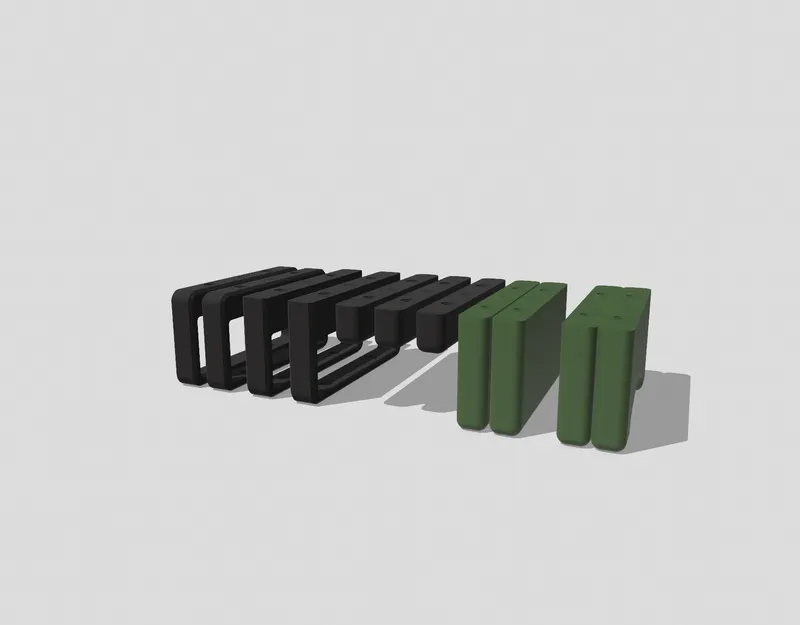

  • Legs - have to different size options as well, 95mm and 115mm. Measure the space under your monitor to help decide which to pick.

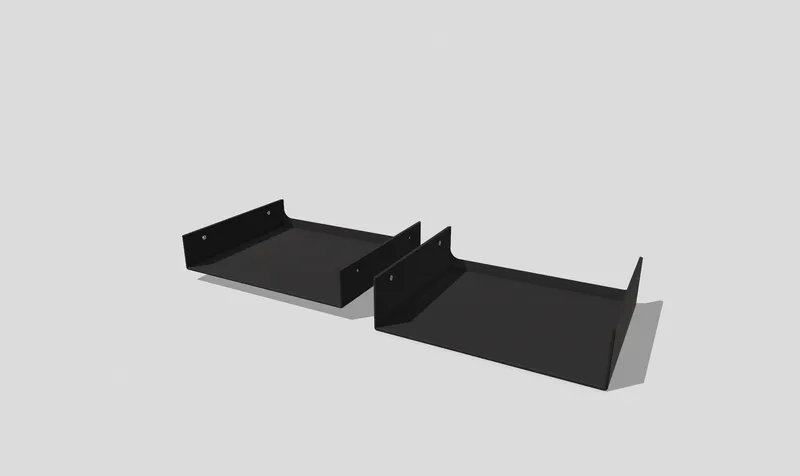

  • Shelves - two different width options for the small undermounted shelves 137mm and 157mm. make sure you use the appropriate jig for the mounting holes.
  • Phone Mount - two different sizes 40 and 65mm for different sized phones or tablets.

##################################################################

Thanks for Reading! - If you have any questions on assembly please feel free to leave a comment, or if you have any requests for new modules or attachments.

##################################################################

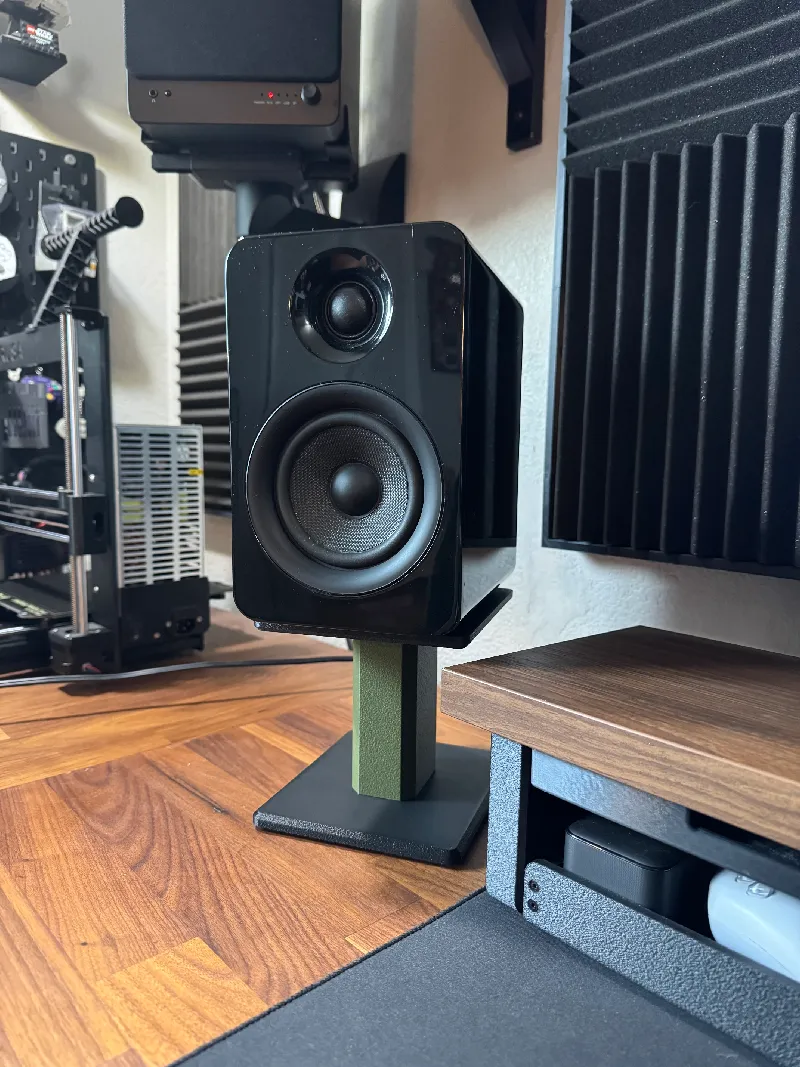

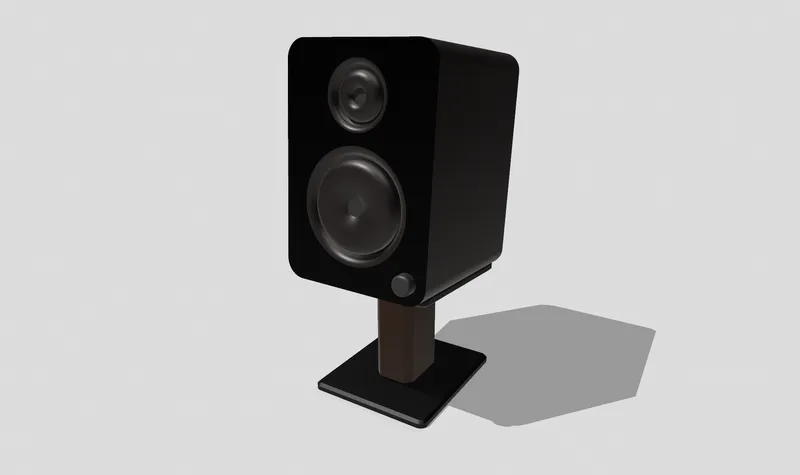

***Updates***

Headphone Mount added 08.16.24



##################################################################

Macropad Mount  added 08.23.24

 -Macropad files and instructions are here - Ali Express Macro Pad with Knob Case



















##################################################################

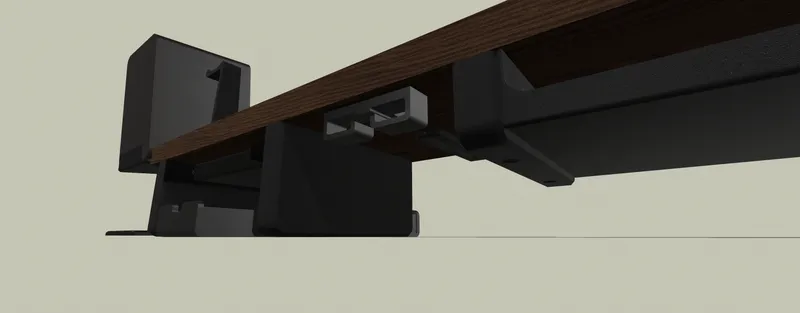

Laptop Dock added 09.23.24

-Added two different sizes 20mm and 25mm, recommended for smaller lighter laptops.

-For mounting, you can use the screw holes to mark the spot, on the shelf and drill or use a leg jig as the spacing for the mounting hardware is the same as the legs.

-Recommended: add felt to bottom and wall of dock using double sided tape to reduce friction.























##################################################################

Support For extra drawers added 09.29.24

-added a new version of legs with extra mounting holes for rails this will allow adding 3 small drawers or 1 small and one large as shown below.



































##################################################################

Updated Stream Deck Mount,  10.06.24

new version removes the bottom lip, purely for aesthetic purposes

##################################################################

Apple Watch Charger Mount Added, 10.08.24

added apple watch charging stand as requested, i am unable to test it at the moment as i do not have an apple watch, double sided tape is required to attach Charger to the mount.

##################################################################

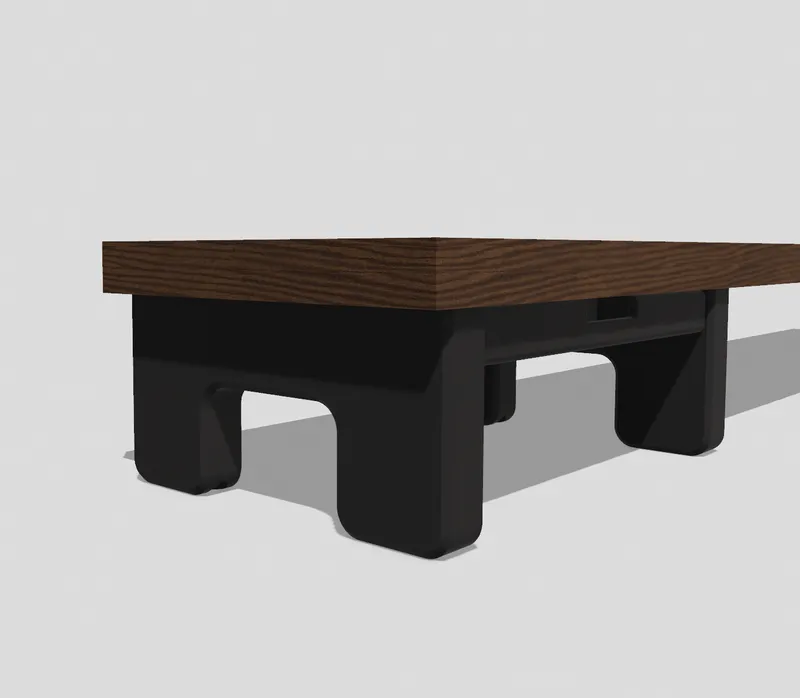

Added Center Support for drawers, 10.12.24

Center support for using multiple drawers in a horizontal Configuration(Pictured Below)























v

Fixed issue with hole spacing on legs and drawer supports, 10.12.24

Mounting holes were .5 MM off center, updated legs and drill templates to be centered.

##################################################################

Added Larger Headphone Mount for bigger Headphones
