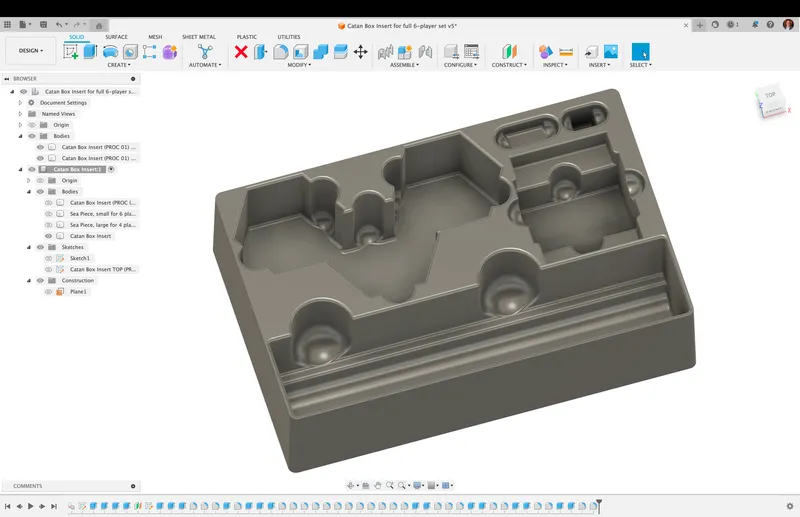

Catan printed caddy for thick custom game pieces (1/4" / 6.35mm) + large wooden box list made of laser cut plywood, v1.0

Join my Design8Studio Club for only $5/month and get this model and all its files plus all other models too!


Watch this video for all the details on both printed tray pieces & laser-cut wooden box lid:

Links mentioned in the video:

• My Etsy shop - https://design8studioshop.etsy.com
• This custom game board on Etsy - https://www.etsy.com/listing/1473511521/free-ship-us-custom-made-lavish-hexagon
• My Printables Profile - https://www.printables.com/@design8studio
• My Printables Club & Store - https://www.printables.com/@design8studio/store
• AD5M printer - $295 on Amazon - https://amzn.to/3OUYVcc
• AD5M printer - $299 on Flashforge site - https://flashforge.com/products/adventurer-5m

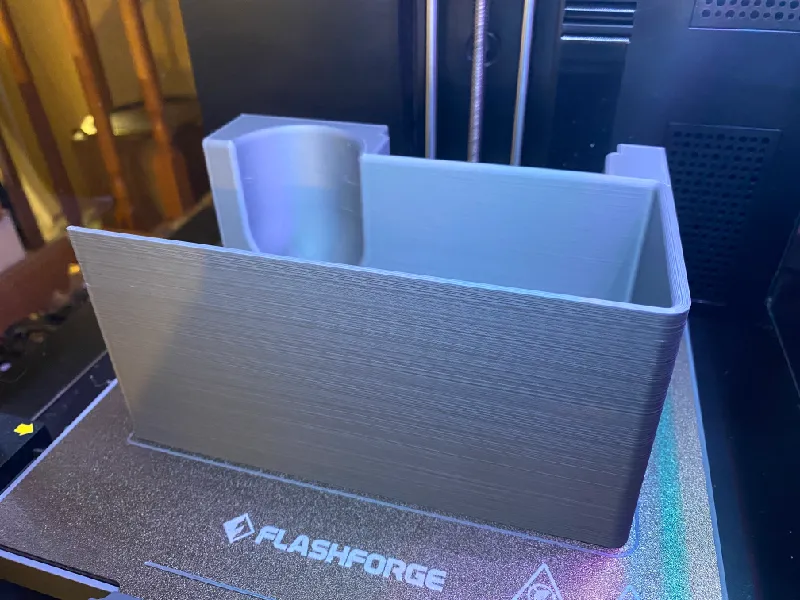

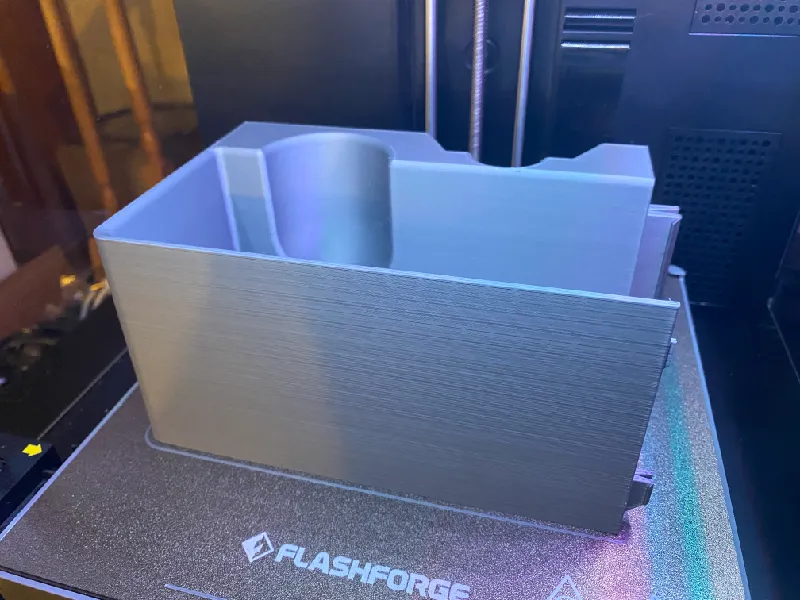

Print settings for tray / caddy

• Print as oriented
• No supports needed
• Filament: PLA, or PLA+ — PETG may also be used
• For 0.4 mm nozzle:
  • Perimeter walls: 2
• For 0.6 mm nozzle:
  • Perimeter walls: 1
• Infill: 10% (no more than 15%), “adaptive cubic” pattern recommended

*Note: all Amazon product links shown here are affiliate links.

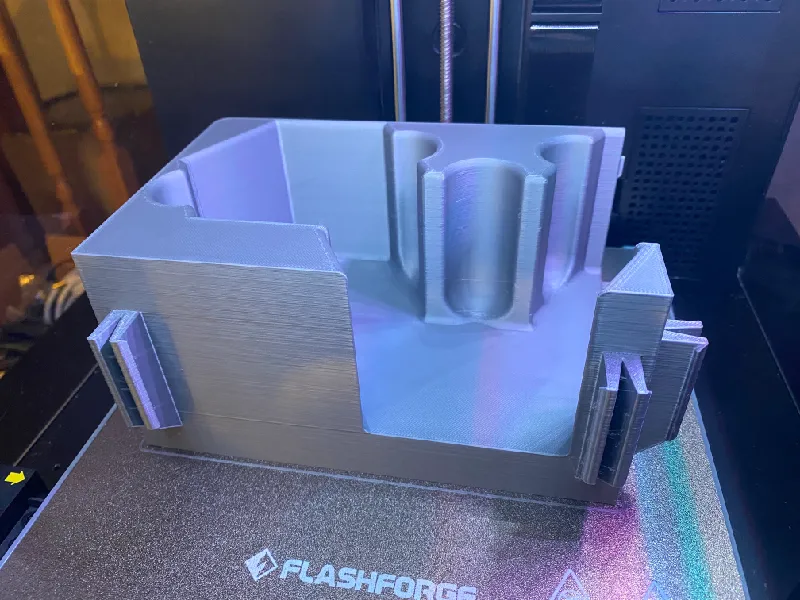

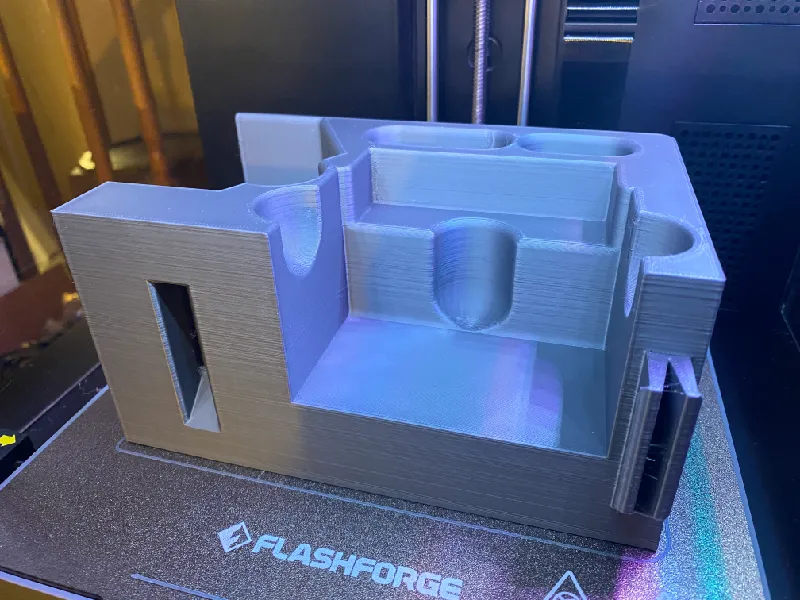

Assembly for tray / caddy

• To squeeze the interlocking latches / sockets together, I used clamps such as these:
  • 6" Irwin Quick-Grip One-Handed Mini Bar Clamp, 4 Pack - https://amzn.to/3LwRwgY
  • 18" Irwin Quick-Grip Bar Clamp, One-Handed, Medium-Duty - https://amzn.to/4fbXCRx
• No glue is needed

Laser settings for cutting box lid

• On my OMTech 100-watt CO2 laser, I used:
  • Number of passes: 1
  • Power: 82%
  • Speed: 7 mm/sec

Assembly for box

• I made sparing use of this “quick setting" wood glue:
  • Titebond Original Wood Glue - https://amzn.to/3Y9Haes
• I used these clamps made for squared gluing of frames etc:
  • Corner Clamp 2pcs - https://amzn.to/4d7HbUG
• …but these kind of clamps would probably work too:
  • Corner Clamps for Woodworking, Set of 4 - https://amzn.to/46eG6Iv
• As well as all of the clamps used for assembly of the tray:
  • 6" Irwin Quick-Grip One-Handed Mini Bar Clamp, 4 Pack - https://amzn.to/3LwRwgY
  • 18" Irwin Quick-Grip Bar Clamp, One-Handed, Medium-Duty - https://amzn.to/4fbXCRx

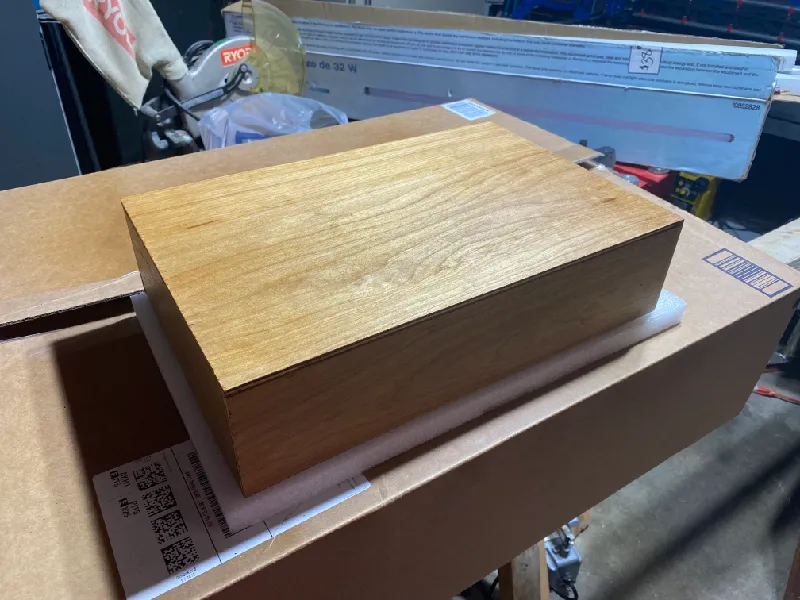

Finishing for box

I first sealed the plywood's grain with one coat (by foam brush) of polyurethane (link below), then sanded it down lightly with a 150-grit sand paper, then stained it with one coat of wood stain (link below), wiped off the excess stain soon after, then laser engraved a name/message onto the top, then sprayed a final coat of “2x” clear polyurethane (link below).

• Minwax Golden Oak Wood Finish Oil-Based Wood Stain, 1 qt - https://amzn.to/3Sf31gM
• Minwax Fast Drying Polyurethane Protective Wood Finish, Warm Satin, 1 qt - https://amzn.to/46bRAw8
• 24 pcs Sand Paper Variety Pack - https://amzn.to/3SbgAOr
• Rust-Oleum Painter's Touch 2X Ultra Cover Spray Paint, 12 oz, Semi-Gloss Clear (Pack of 2) - https://amzn.to/3Y6jxUc
