Collapsible Pen (12 faces)

UPTADE (25.07.2024): Added 12 faces for the "Threaded Cap" element. If you have a multi-color printer, you can try printing in several colors

UPTADE (20.07.2024):  Added the “Reduced Refill Holder” with a smaller hole for the pen refill (-0.02mm) for a better fit. I recommend printing both versions as printers may vary.

Printing parameters
- Nozzle size: 0.4 mm
- Layer height: 0.2mm
- Infill: 100%
- Material: PLA
- Supports: Not required
- Walls: 3

Printing the Parts
The “Refill Holder” must be printed in two colors (white for the height of 0-30mm, and a second color from 30.2mm to the end). The other parts should be printed in a single color.

Required materials

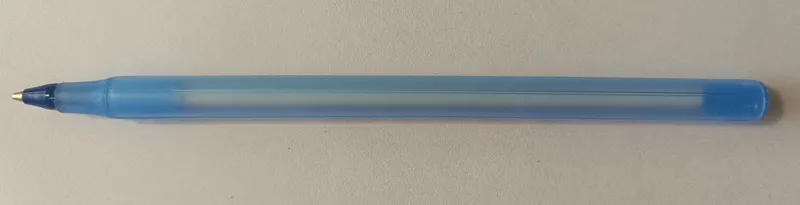

You need a BIC pen (see the photo below).

Preparing the pen

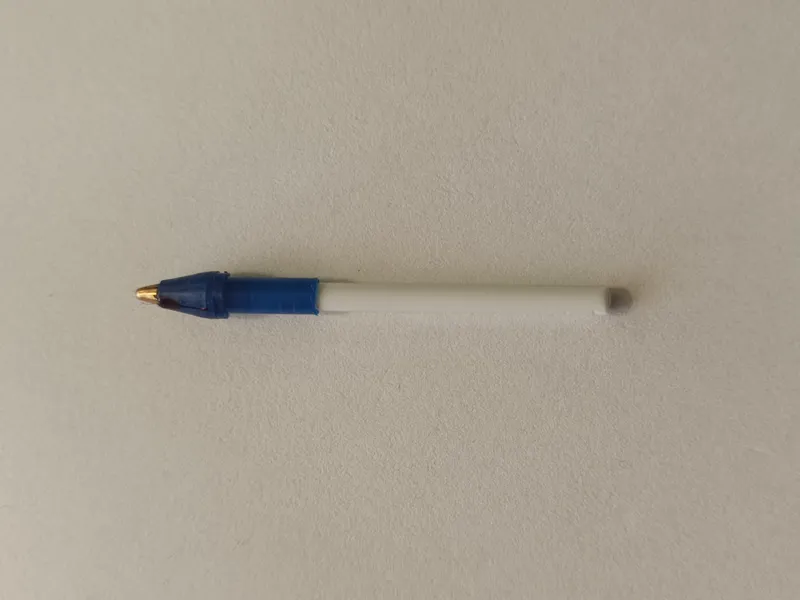

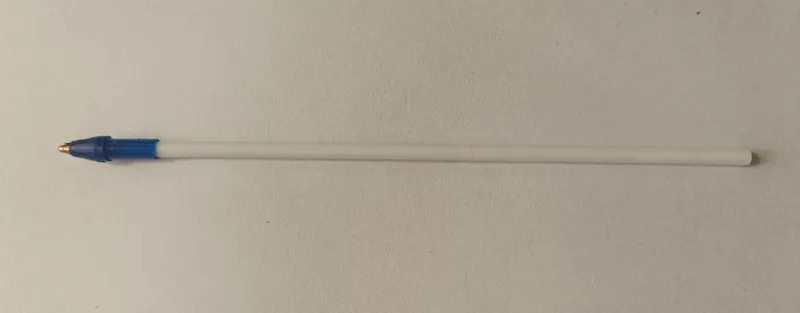

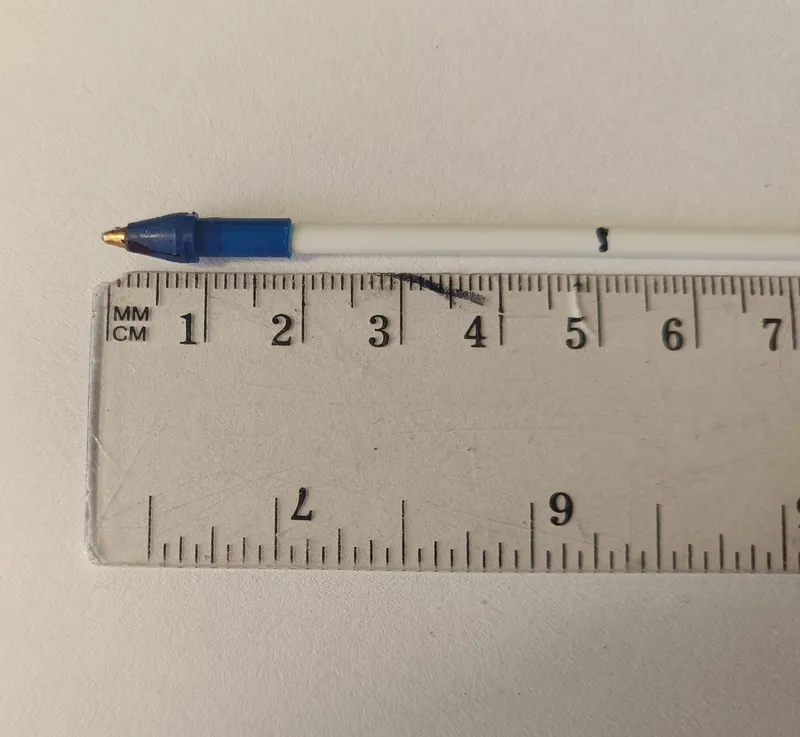

You will need a BIC pen refill (IMPORTANT: the refill must be partially empty because the ink might leak). You need to cut it so that it is no longer than 5 cm. If you have any idea on how to avoid the need for the ink to be partially empty, let me know and I will try to add a modification.

Note: I did not have an empty refill, so cutting the refill got my hands a bit dirty.

Assembly of the pill pen
After printing all the parts, simply fit them together. Then, insert the cut pen refill.

If any part does not fit properly, let me know, and I will try to assist. (Issues may arise due to variations in different printers.)
