CREALITY K1 | K1C HONEYCOMB SIDE PANELS [VENTS + SPOOL HOLDER]

*If you have any issues with printing or assembly, feel free to message me, and I'll do my best to assist you 😉.

*The panels aim to reduce the internal temperature of 3D printers, facilitating efficient printing of materials like PLA.

/////ATTENTION

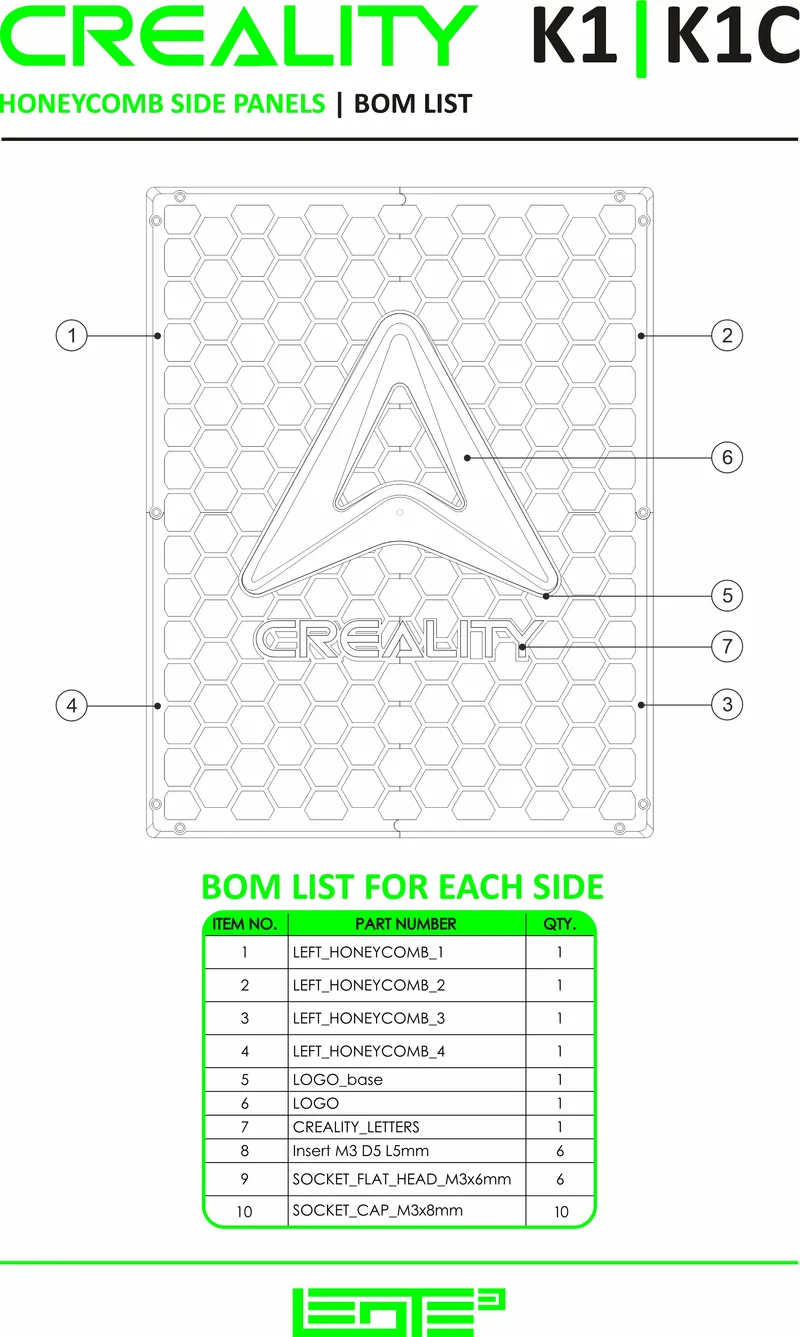

The assembly manual is available in the downloads section as a PDF

/////LOGO AND LETTERING LINK

https://www.printables.com/model/945999-creality-logo-lettering

______________________________________________________________________________________________________________

/////LINKS FOR THE HARDWARE USED IN ALL MY PROJECTS * affiliate links

INSERTS M3 x 4mm (L) x 5mm (D): https://amzn.to/3EovAVw

HEX SOCKET CAP M3 6mm-30mm (STAINLESS): https://amzn.to/4imGAQW

HEX SOCKET CAP M3 6-20mm (BLACK): https://amzn.to/3R7wjx4

FLAT HEAD SOCKET CAP M3 4mm-12mm (STAINLESS): https://amzn.to/3G3Z1wr

FLAT HEAD SOCKET CAP M3 8mm-25mm (BLACK): https://amzn.to/43JeThP

________________________________________________________________________________________________________________

*Given the size of the pieces, you'll need to adjust the supports to [SNUG] in OrcaSlicer or print the pieces with the front face down. This reduces the number of supports needed and ensures the pieces fit within the print area.

• Before starting printing the pieces, I recommend printing this tool https://www.printables.com/model/899470-xyz-accuracy-test-calibration-tool to test the dimensional accuracy of your printers and use this tool https://www.printables.com/model/480907-shrinkage-calculator-dimensional-calibration-tool to determine the correct scale based on the filament shrinkage you’ll be using.
• The pieces were developed with very tight tolerances (0.2mm) to ensure proper alignment and functionality of the assembly, so it’s important to make sure everything is well-calibrated or that you understand what is needed for everything to work correctly.


NEW UPDATE 13/04/2025

NEW VERSION OF THE HONEYCOMB VENT
*This new version doesn't have the logo.

*It also includes a new version of the RIGHT_HONEYCOMB_2  with mounting points for the filament sensor - RIGHT_HONEYCOMB_2_SENSOR

• Use the same inserts you used for the rest of the project in the holes to fix the sensor.

/////DESCRIPTION

K1 | K1C HONEYCOMB VENTILATION SIDE PANELS

• The panels aim to reduce the internal temperature of 3D printers, facilitating efficient printing of materials like PLA and similar filaments.
• This project is intended for all makers who exclusively use PLA or similar materials in their 3D printers.
• Currently, it's necessary to open the door and remove the top cover of the printer to reduce the internal temperature. Otherwise, the temperature becomes too high for printing PLA, causing nozzle clogs. This process is inconvenient and can compromise print quality.
• The panels are designed with honeycomb openings, significantly increasing airflow inside the printer. These panels replace the original fully enclosed ones, eliminating the need to operate the printer with the door open and lid removed.
