Sovol SV08 TOP HAT with BTT 5" Display

WARNING: Calibrate shrinkage before you print. These are long pieces and errors will show.

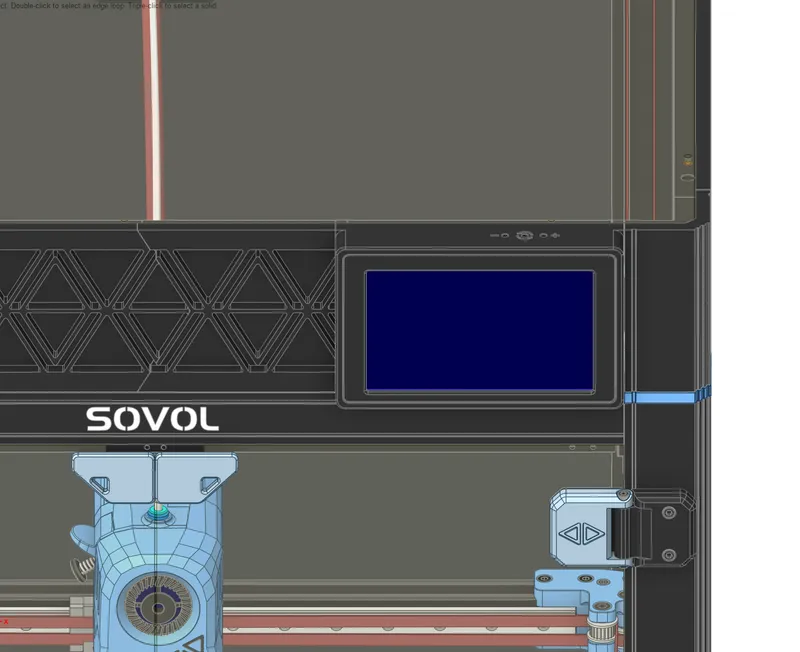

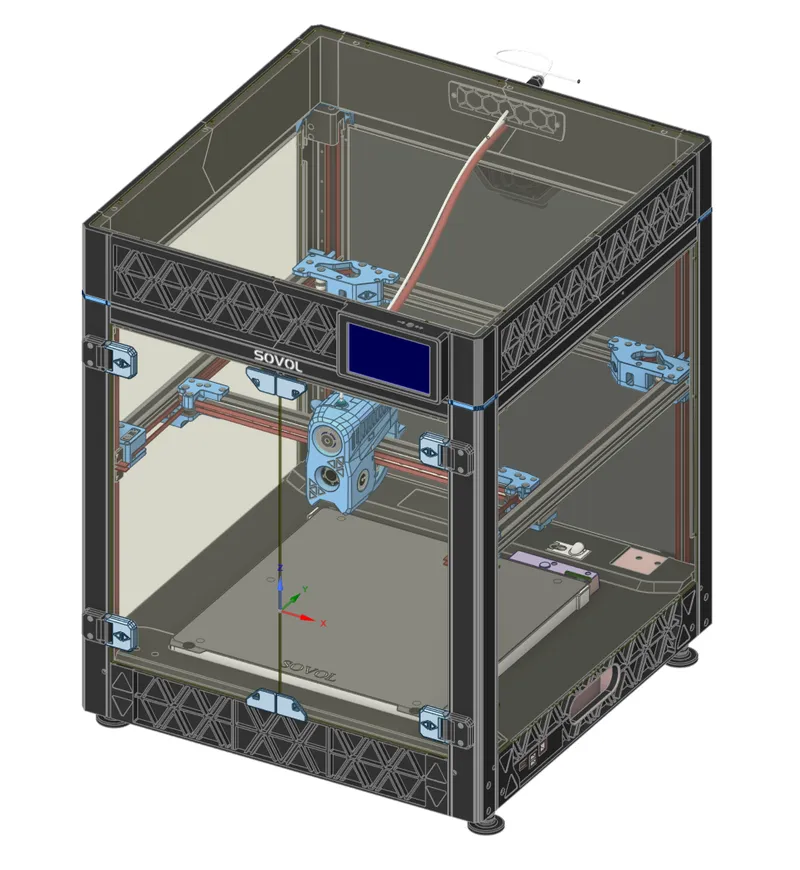

BTT HDMI 5" V1.2 Integrated in the top hat we made for the Sovol SV08

It has Built In cable management and also you have 3 hole on top to dim or increase the brightness + to rotate the display.

All the files are already in the correct orientation and they need a little bit of support for the “lip” that will hold the top acrylic panel

Print Settings

3 walls
5 top
4 bottom
0.2 layer height
10% Gyroid infill.

If you want to have long ABS prints or other hi temp material I recommend to print the top hat in ABS

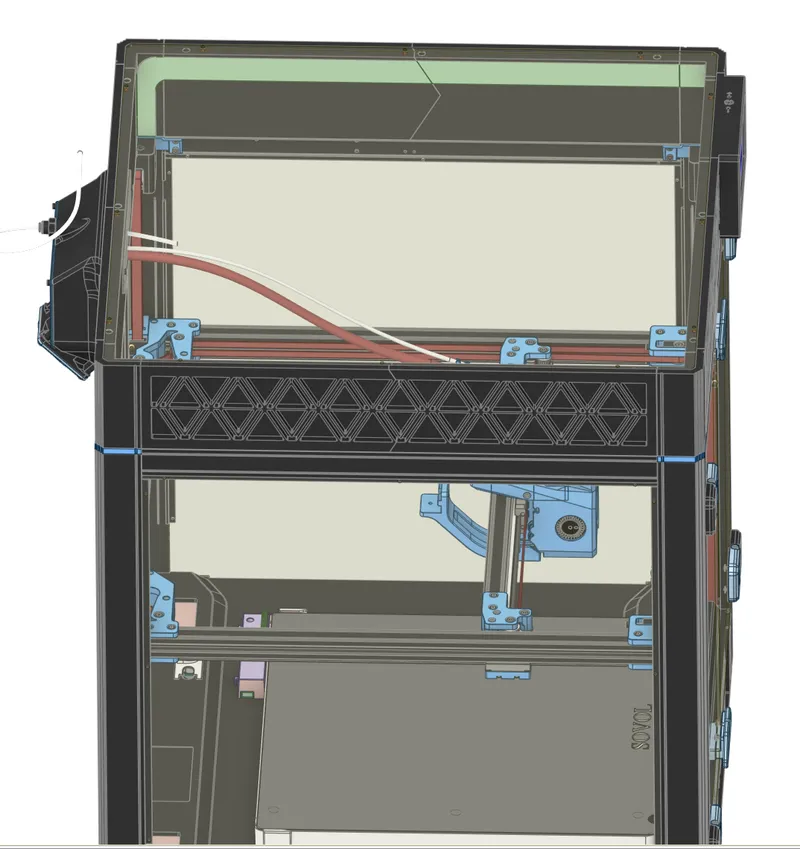

The cables are routed through the top hat and they came out in to the back of the 3d printer. you will need longer cables at least 170 cm for both usb and hdmi

BOM

this is the exact display that we have used to make the design

BIGTREETECH HDMI7 V1.2 HDMI5 HDMI Touch Screen 5 inch IPS Screen Display

https://s.click.aliexpress.com/e/_Dn2WOf1

Screws

11x M3x 35mm to secure the top hat to the frame

1x M3x 10mm to secure the display holder to the frame

12x M3x 8mm to secure the display in to the holder and the back cover

Heat set inserts

12x M3 x4.5OD x 4mm long

If you want to Enclose the 3D printer here are the DXF for the acrylic panels

https://www.printables.com/model/879399-sovol-sv08-panels-for-the-enclosure

Here you can find the plate if you want to remove the small display and to cover the holes.

https://www.printables.com/model/933262-sovol-sv08-cover-instead-of-the-factory-display
