Modular Compact Memory Card Case

///本图纸禁止商业使用，遵循Creative Commons (4.0 International License) Attribution-NonCommercial
///

///COMMERCIAL USE IS NOT ALLOWED///

*一部分零件设计使用TPU打印以便达到最佳保护效果和使用体验，用PETG或者PLA也不是不行，但是你可能会发现卡槽安装后拆不下来

*SOME PARTS ARE DESIGNED TO BE PRINTED IN TPU FOR BEST PERFORMANCE. PRINTING THESE PARTS WITH PETG OR PLA IS ALSO FUNCTIONAL BUT YOU MAY FIND IT REALLY HARD TO DISASSEMBLE THE SLOTS.

模块化紧凑型摄影卡盒有两个槽位供你安装不同卡槽方案

Modular Compact Memory Card Case is a modular card organizer with 2 available spaces to mount different card slot solutions.

卡槽模板已公开，你可以给你自己的卡设计自己的卡槽收纳方案。

The template of slot is available, you can design you own slot solutions for your cards.

兼容如下主流存储卡：SD, TF, CF, CFexpress Type B, CFexpress Type A*

Compatible with following mainstream memory cards: SD, TF, CF, CFexpress Type B, CFexpress Type A*

*因为我没有CFexpress Type A 卡，所以兼容这种卡的卡槽我没法测试

*Because I don't have a CFexpress Type A card, slot for this type is non-tested.

这个卡盒的容量设计上小于其他的卡盒，因为我问了一圈我认识的人发现大多数业余摄影师没什么对卡收纳的需求（除了SD和TF）。所以尽管容量不大，这个卡盒应该是能满足各位的需求的

This card case's storage space is designed to be smaller than other card case, because via my research I found most amateur photographers have little demand for card storage (Except SD and TF). So, even the storage is smaller, this card case should fit most people's need.

预设卡槽列表：

Preset Slots List:

Slot#1-CF x1

Slot#2-CFe Type B x1

Slot#3-SDx2 TFx2 SIM_EJECTION_PINx1 For TPU

Slot#4-SDx2 TFx2 5mm_TF_EJECTION_BARx1 For PETG

Slot#5-SDx2 TFx2 For PETG

Slot#6-CFe Type Cx1 SDx1 TFx2 4mm_TF_EJECTION_BARx1(NON-TESTED 未测试*)

Slot#7-TEMPLATE 卡槽预设

*不以“TPU-/PETG-”开头的卡槽文件两种材料都可打印

*Slot files whose names without “TPU-/PETG-” can be printed both in TPU and PETG.

*CFe Type C卡的尺寸我参考的这里 www.sony.com.hk/zh/electronics/xqd-memory-cards/cea-g-series#product_details_default

*CFe Type C Card‘s measurements from www.sony.com.hk/zh/electronics/xqd-memory-cards/cea-g-series#product_details_default

打印清单（因为文件名使用中文会有编码错误，所以统一使用英文）：

PRINT LISTS:

如果你能打印tpu，你需要至少打印如下文件：

If you can print tpu, you need to print at least the following files:

   Case.stl

   Locker.stl

   ANY SLOTS x2

如果你打不了，你需要至少打印如下文件：

If you can not, you need to print at least the following files:

   Case&Locker.stl

   ANT SLOTS x2

打印注意事项：

PRINT TIPS:

尽管我尝试避免支撑（拆支撑很麻烦），但是对于“Case.stl”"Case&Locker.stl"（也就是盒子本体）必须指定一些支撑，因为我画图水平太菜了

Even l had tried to avoid support, due to my poor amateur drawing ability, the support is unavoidable for the file "Case.stl" and "Case&Locker.stl".

以下图片说明了如何在热床上摆放零件，如何对必要零件“Case.stl”,"Case&Locker.stl"指定支撑，如何组装卡盒

The following photos show how the parts are positioned on the heat bed, how to add support for “Case.stl”,"Case&Locker.stl" and how to assemble the parts.

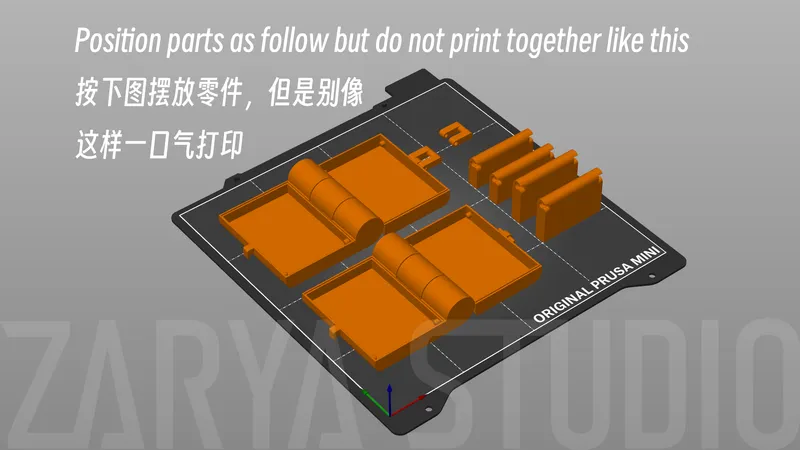

1.How the parts are positioned on the heat bed

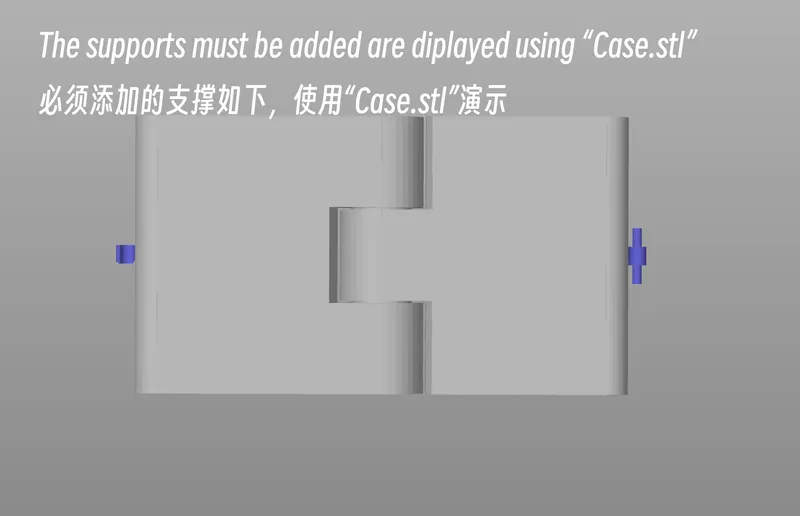

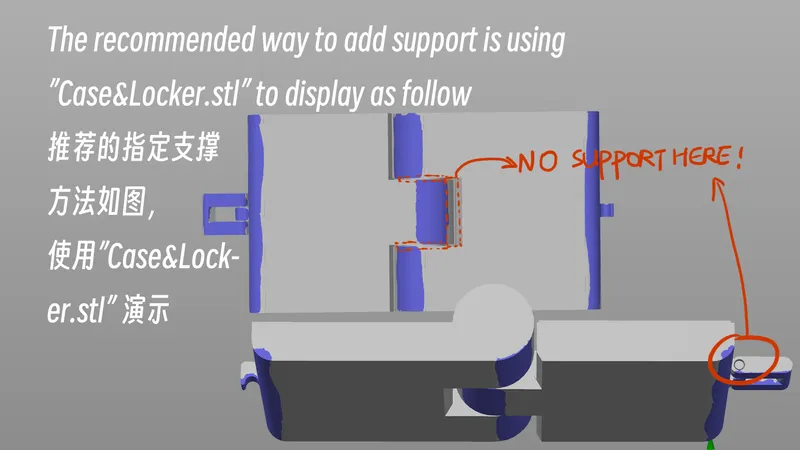

2.How to add support for “Case.stl”,"Case&Locker.stl"

*You need nozzle pliers or other tools to remove support.

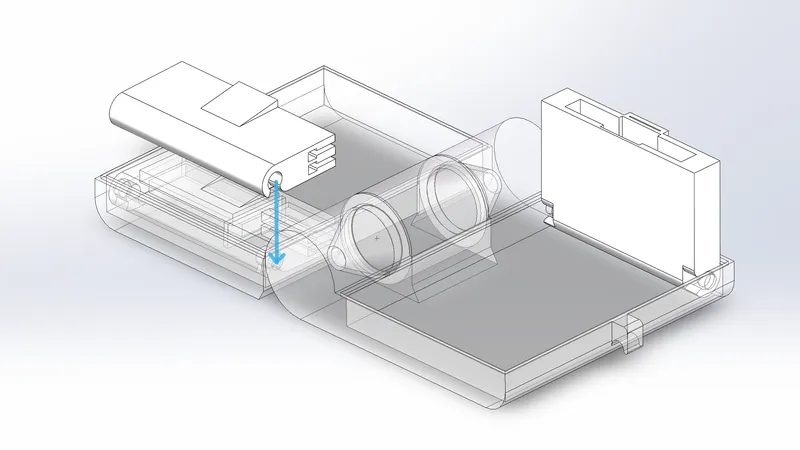

3.How to assemble the parts.

我用我的prusa mini做了所有的打印测试，所以你们应该打印上没什么问题

I did all the print tests with my prusa mini.

唯一要注意的地方就是别开自动支撑，打开打印风扇

The only tip I suggest is to disable auto support and turn on your print fan.

你应该用自己的打印参数就能打的很好

You should have fun printing the parts with your own preset printing settings.

使用卡盒注意事项：

Precautions For Use:

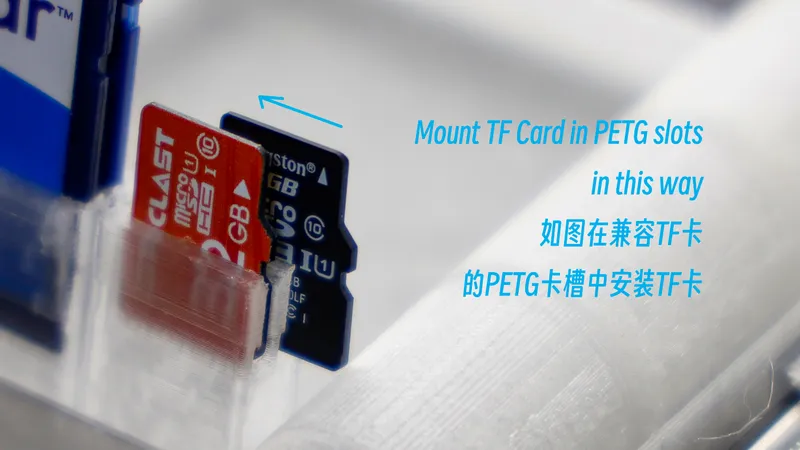

PETG slots for TF cards have a different way to mount the card:

Please rotate the slot through the handle. Rotating through SD card may break the card.

Don't forget to share your ideas and slot solutions with me.

Designed by Zarya Studio with love.

Enjoy :)
