Galileo 2 + LDO Nitehawk SB USB cable strain relief / cable gland
No PG-7 cable gland required.
56
262
2
2458
updated
August 6, 2024
Description
PDFAbout Galileo 2 + LDO Nitehawk SB USB cable strain relief / cable gland
Not a biggest fan of PG-7 cable glands (like me) and willing to make safe and secure LDO Nitehawk-SB USB cable strain relief using Galileo 2 Extruder?
This one is probably for you.
WHERE TO SOURCE MECHANICAL PARTS OF THE BUILD?
Self-source using BOM (bill of materials) |

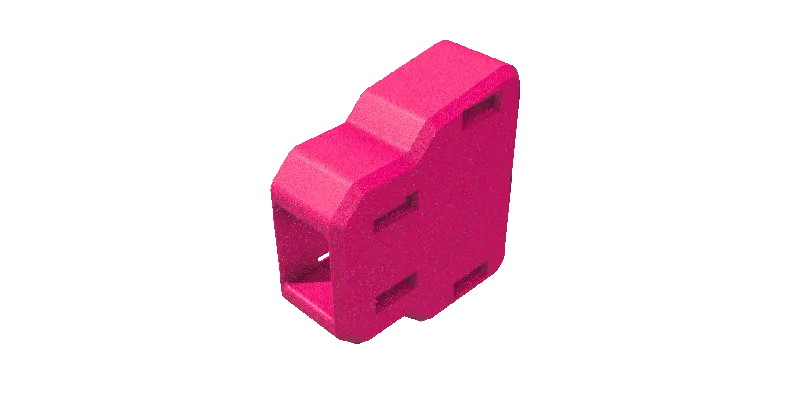

| Mechanical parts | QTY |
|---|---|
| M3x8 SHCS — Bolt | Sourcing link | 1 |
| M3x50 SHCS — Bolt | Sourcing link | 1 |
| M3x8 FHCS — Bolts | Sourcing link | 2 |
| M3 5x4 — Heatset Inserts | Sourcing link | 3 |
Printed Parts | |
|---|---|
| Printed parts | 4 |

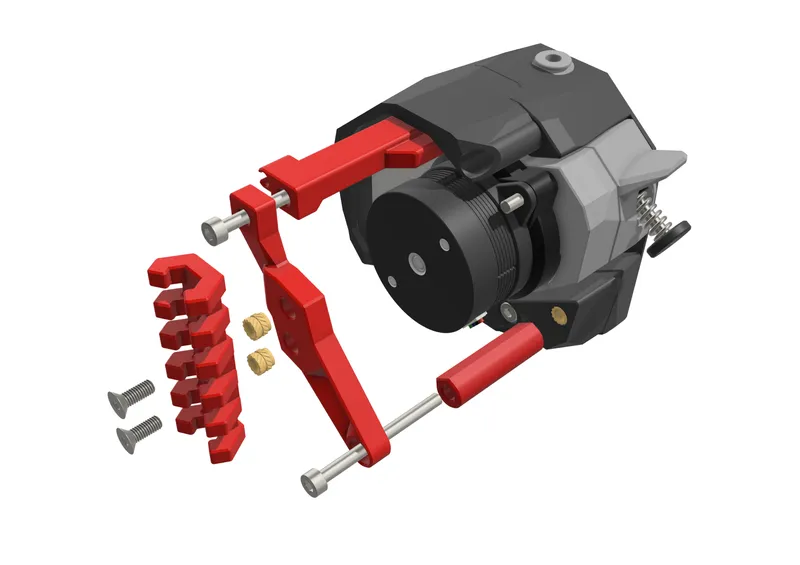

ASSEMBLY INSTRUCTIONS (EXPLODED VIEW)
| This model compliments with Nitehawk-SB Cable Saver |  |
PRINT GUIDELINES |
Here are print guidelines for you to follow in order to have decent success with printing parts:
| 3D PRINTING PROCESS | FDM |
| INFILL TYPE | Grid, Gyroid, Honeycomb, Triangle or Cubic |
| MATERIAL | ASA, ASA-CF, ABS, ABS-CF |
| INFILL PERCENTAGE | 40% |
| LAYER HEIGHT | Recommended: 0.2mm |
| WALL COUNT | Recommended: 4 |
| SOLID TOP/BOTTOM LAYERS | Recommended: 5 |
| EXTRUSION WIDTH | Forced 0.4mm |
Printing notes:
- Keep orientation on plate as in STL files.
File naming for printed parts:
The parts use this naming convention:
- ACCENT COLOR — Files have “[a]” to the front of any STL file that is intended to be printed with accent color.
- COUNT OF PARTS — Files have “x1” at the end of any STL file. The number represents the count of identical parts to be printed.
HOW TO SUPPORT THE PROJECT |
- Press like and download model files.
- Consider becoming member of Iconic FAB Club on Printables and get all Paid models and Manuals for single membership fee, starting from $5.
CHANGELOG |
| Date | Change |
|---|---|
| 05.08.2024 | Second version, redesigned and tested |
| 08.07.2024 | Initial version (full write-off, had major design flaw) |
Tags
Model origin
The author remixed this model.
Differences of the remix compared to the original
This version is allows to mount Nitehawk-SB cable with zipties, no need for PG-7 cable gland
