Neptune4Plus | QuickToolChanger H2V2S Remix V1

I remix the designs are for user easily to change to use another Extruder kit on their Elegoo Neptune 4 Series or maybe Neptune 3 Series

N4Plus-QTC-Base
My Print Settings
Infill: 30%-35%
Layer Height: 0.2mm
Perimeter: 4
Top/Bottom Layer: 4
Material: PETG/ABS

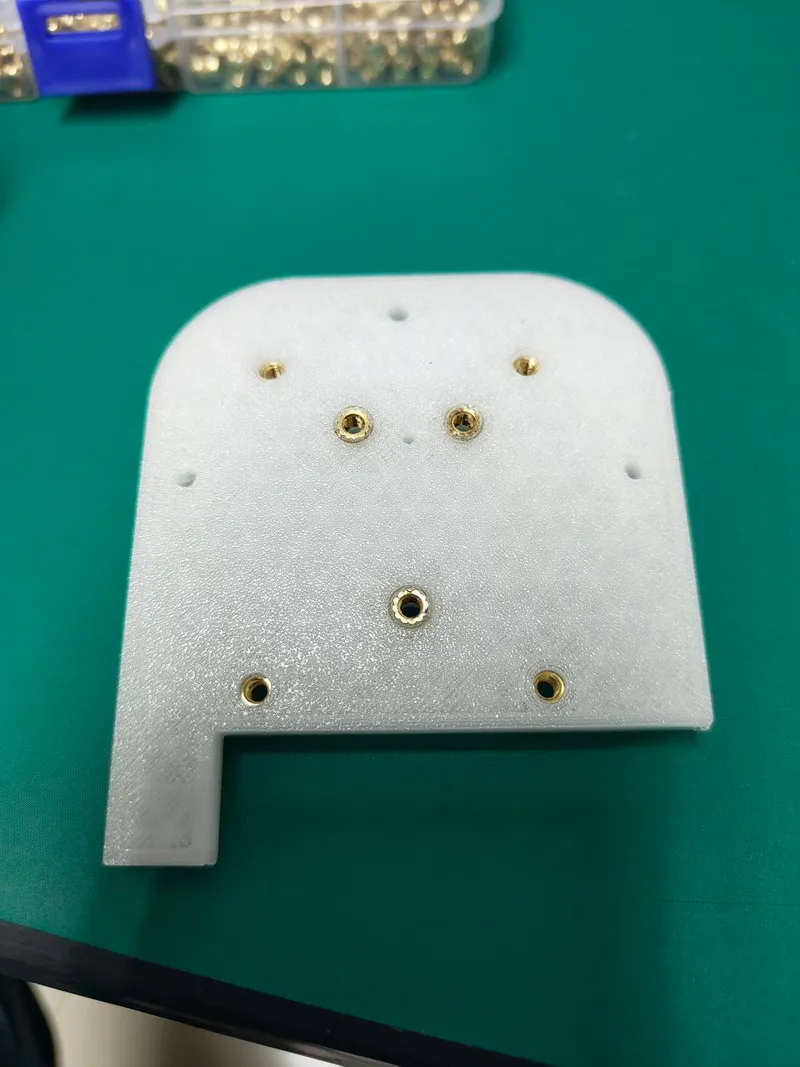

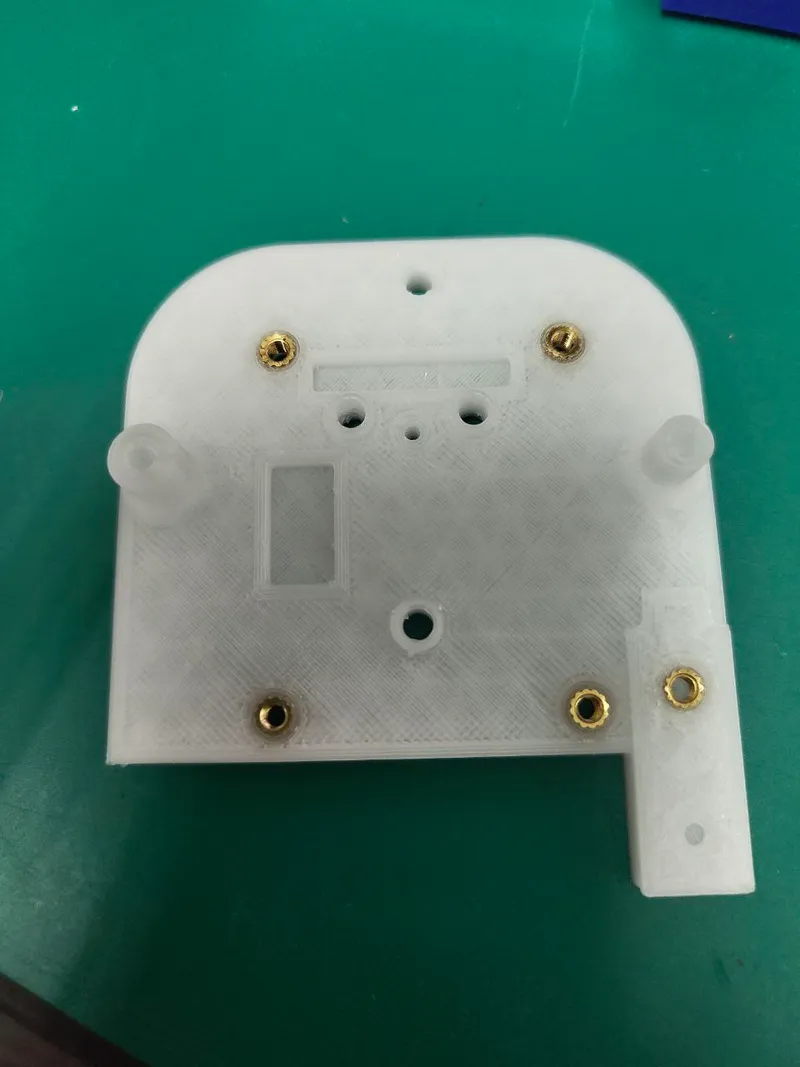

N4Plus-QTC-Base (Back View)
Heat Insert for QTC Base
M3x4.5x4 - 4pcs

Heat Insert for Probe Sensor
M3x4.5x3 - 1pcs

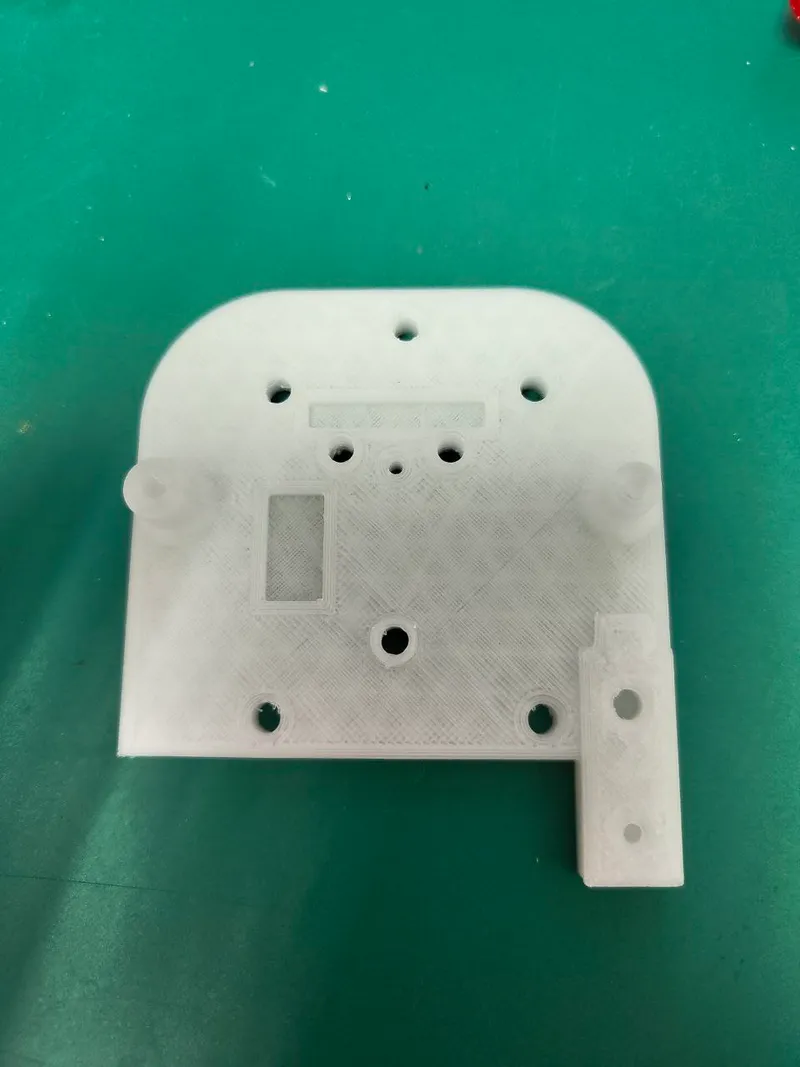

N4Plus-QTC-Base (Front View)
Heat Insert for X-Axis Gantry Linear Rail Mounting
M3x4.5x4 - 3pcs



For Probe Sensor & Elegoo Extruder Board, I got them from Ali Express website. I tested it, it usable.

Probe Sensor
https://www.aliexpress.com/item/1005005957007058.html?spm=a2g0o.order_list.order_list_main.99.520d1802NBnSEr
Cap Screw M3x6 - 1pcs

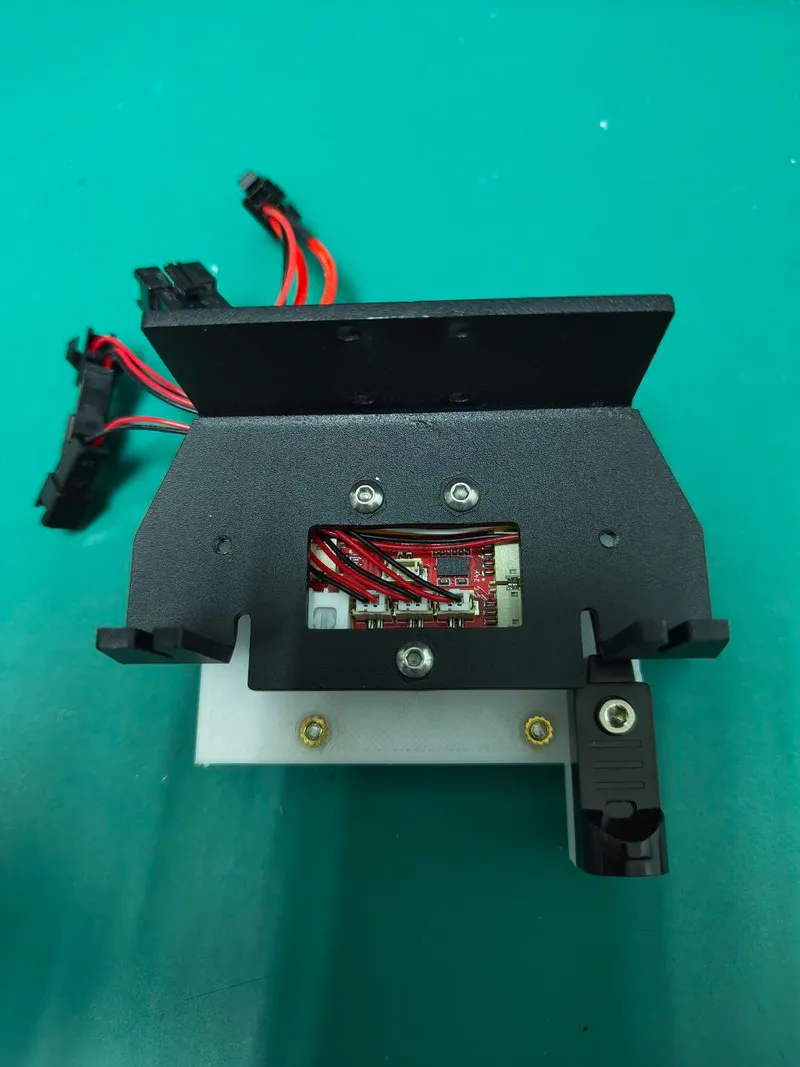

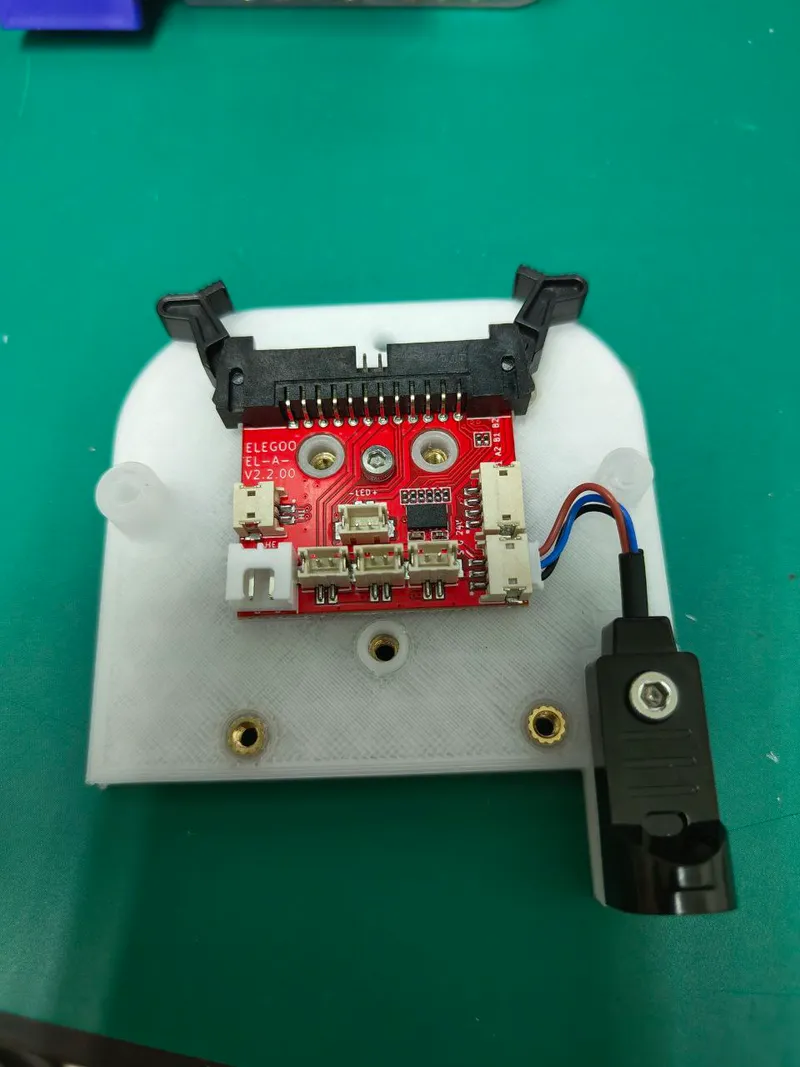

Elegoo Extruder Board v2.2
https://www.aliexpress.com/item/1005006236767069.html?spm=a2g0o.order_list.order_list_main.94.520d1802NBnSEr
Cap Screw M2.5x4 - 1pcs

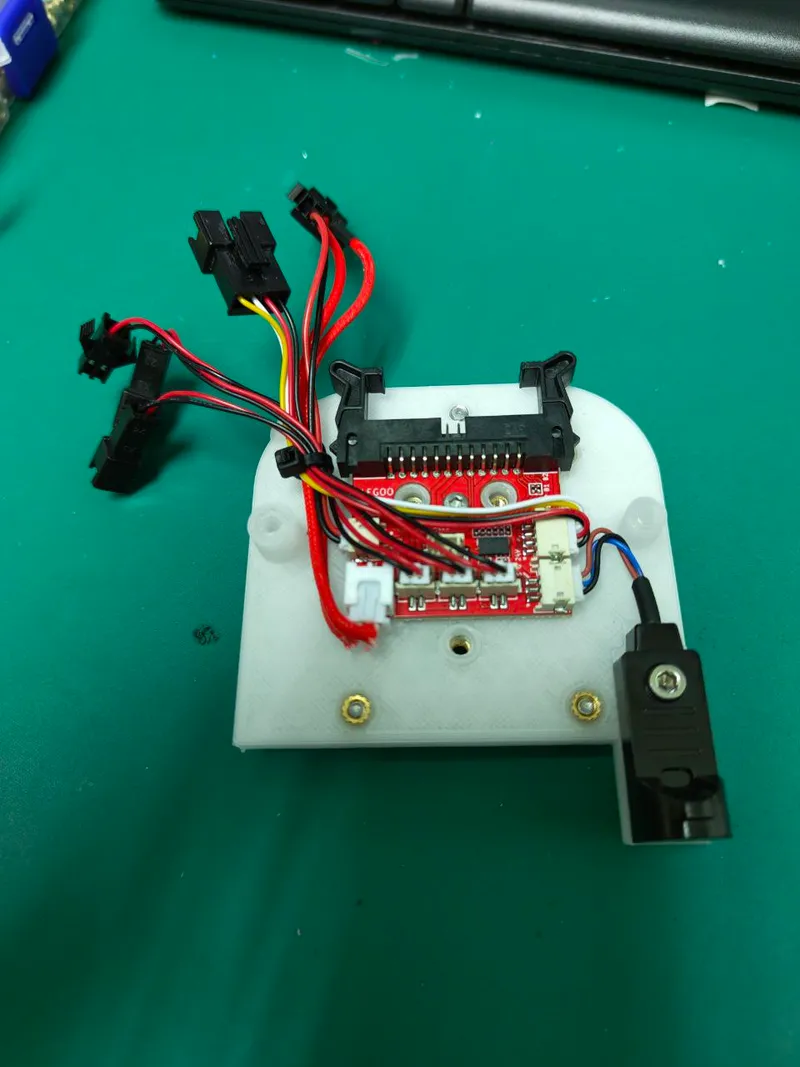

I wire them this way:~
ZH1.5 connector 2pin to JST SM 2.54mm Male Connector with Cable 100mm - 2pin for Fan1

ZH1.5 connector 2pin to JST SM 2.54mm Female Connector with Cable 100mm - 2pin for Fan2, Fan3

ZH1.5 Male Connector 2pin with Cable 100mm + XH2.54 Male Connector 2pin with Heater Cable 100mm to JST SM 2.54mm Male Connector 4pin for TH & HE

ZH1.5 connector to JST SM 2.54mm Female Connector with Cable 100mm - 4pin for Extruder Stepper Motor

ZH1.5 & XH2.54 with 10-20CM Cable
https://www.aliexpress.com/item/4001235017139.html?spm=a2g0o.productlist.main.7.690a5b6eJ9NMmt&algo_pvid=37da6b5b-13d7-4105-93ed-0fcd5e2fce87&aem_p4p_detail=20240708041053310010765434120000904932&algo_exp_id=37da6b5b-13d7-4105-93ed-0fcd5e2fce87-3&pdp_npi=4%40dis%21MYR%217.28%216.90%21%21%211.52%211.44%21%402140c5a717204370538021824ef4ac%2110000015400386646%21sea%21MY%212443287461%21&curPageLogUid=iNrAsyCaQWjW&utparam-url=scene%3Asearch%7Cquery_from%3A&search_p4p_id=20240708041053310010765434120000904932_1

JST SM Connectors
https://www.aliexpress.com/item/33003863385.html?spm=a2g0o.productlist.main.17.6a5745083FmRXL&algo_pvid=e6339290-abfa-4207-a871-99c4b16d1e9e&algo_exp_id=e6339290-abfa-4207-a871-99c4b16d1e9e-8&pdp_npi=4%40dis%21MYR%216.27%214.88%21%21%211.31%211.02%21%402140c5a717204371718726304ef4ac%2167001365879%21sea%21MY%212443287461%21&curPageLogUid=p1yRj2huvsN8&utparam-url=scene%3Asearch%7Cquery_from%3A


X-Axis Gantry Linear Rail Mounting
Button Screw M3x16 - 3pcs
https://www.aliexpress.com/item/1005006629328967.html?spm=a2g0o.order_list.order_list_main.84.520d1802NBnSEr
The linear rail mounting may need to modify abit. Else there's alternative link below:
https://strong3d.myshopify.com/collections/elegoo-linear-rail

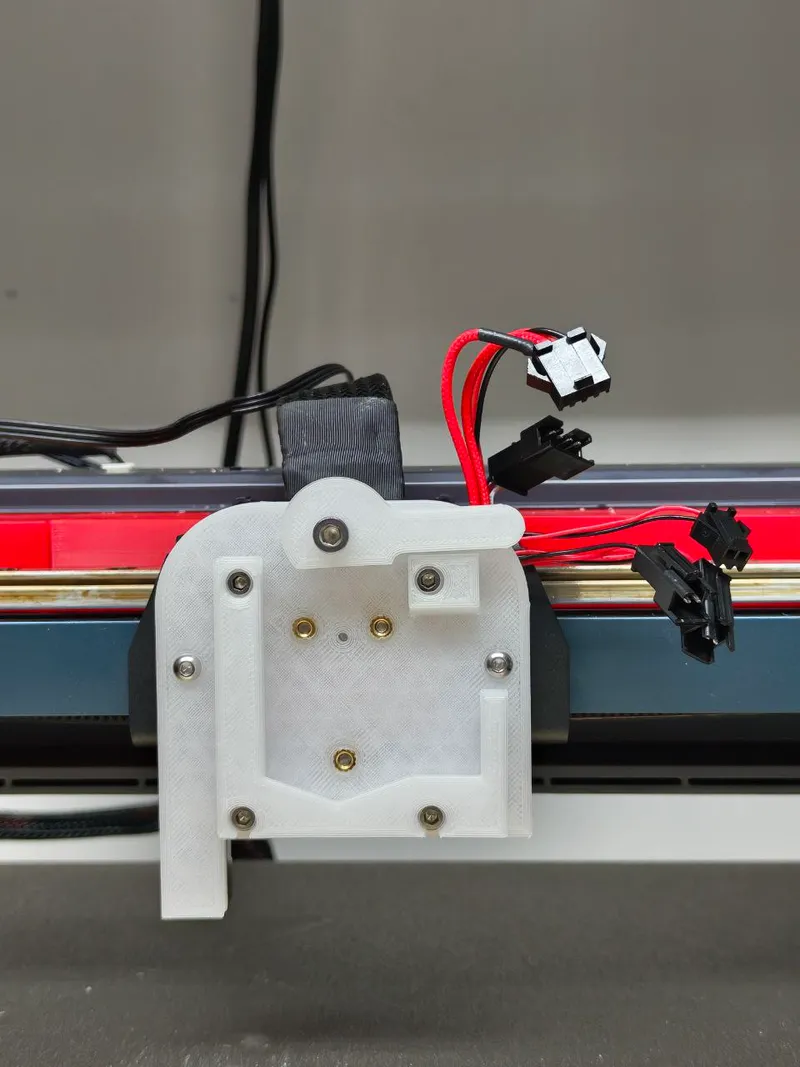

QTC-QuickMount-Remix - Handle
Cap Screw M4x12 - 1pcs

QTC-QuickMount-Remix - Base
Cap Screw M3x6 - 4pcs

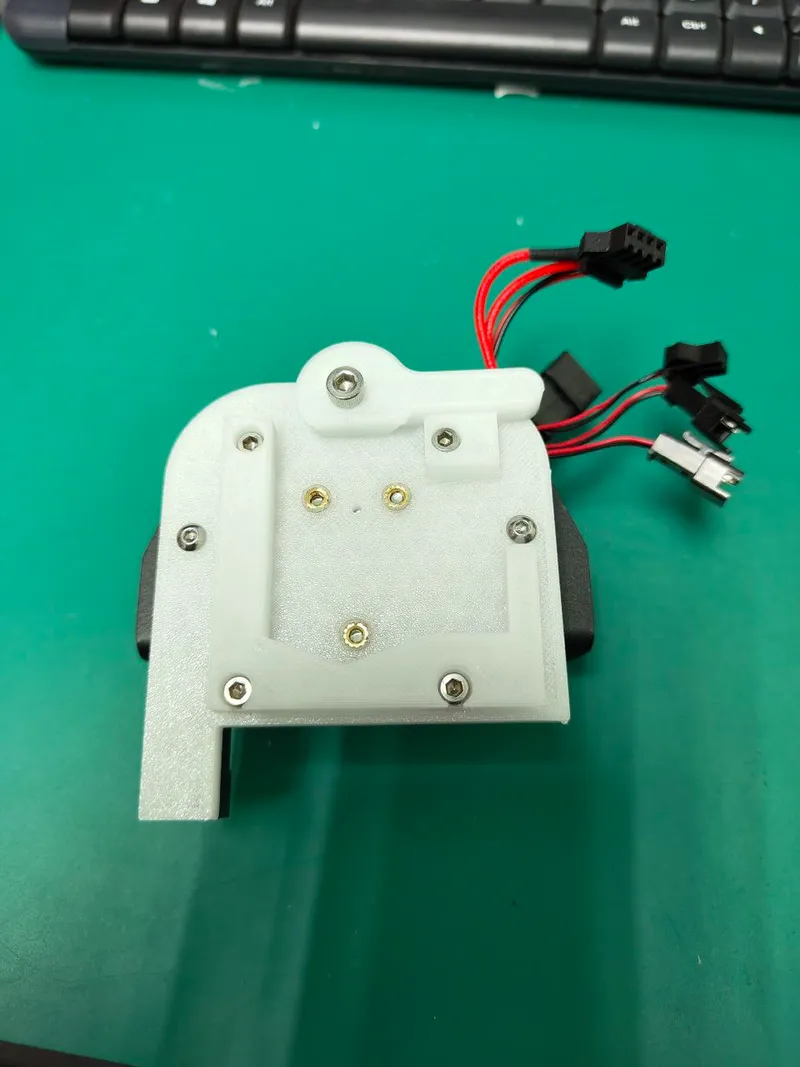

N4Plus-QTC-Base
Button Screw M3x18 - 2pcs

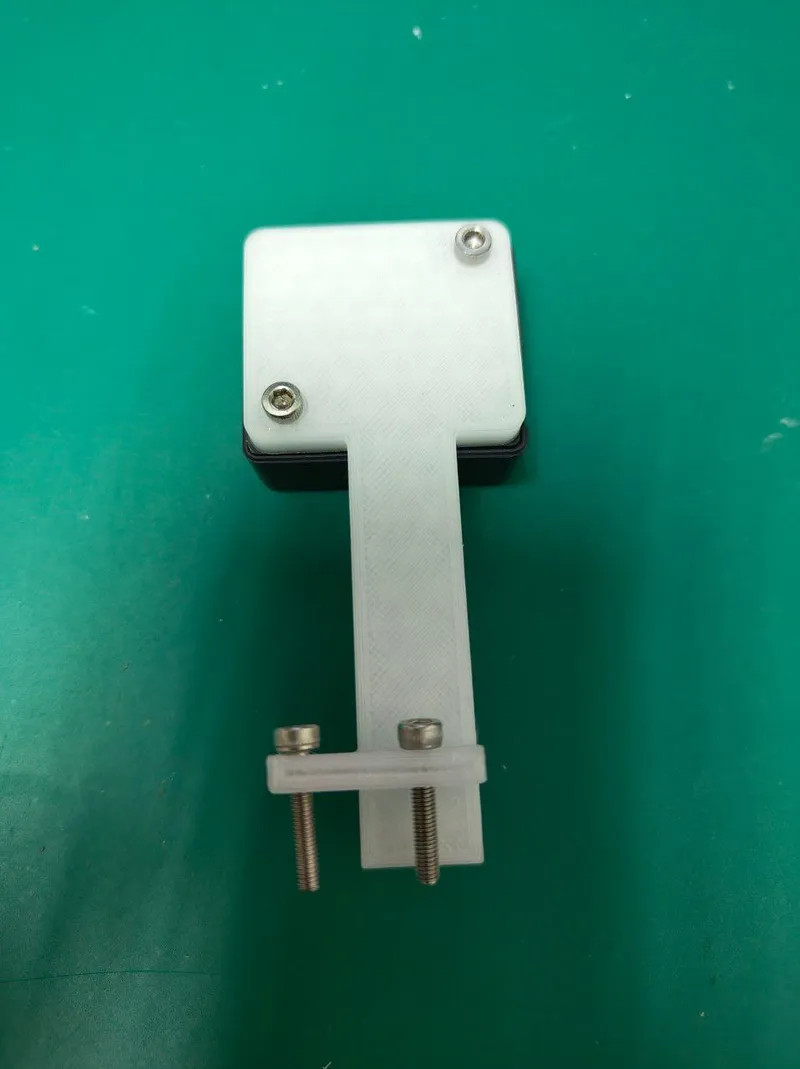

N4Plus-ShortFilamentSensor-Mount on QTC & MAD Base of Biqu H2 Extruder
Cap Screw M3x12 - 2pcs
Cap Screw M3x16 - 2pcs

For parts: QTC-BiquH2Mount
Can refer the installation from this link below:
https://www.printables.com/model/477922-biqu-h2v2s-quick-mount-ebb42-nice-fan

For Orca Slicer, my Extruder Offset setting:
X: -5
Y: -32

Printable Area change Y: 330

[It is recommended to upgrade Y-Axis to Linear Rail Kit as well]
https://strong3d.myshopify.com/products/elegoo-neptune-4-plus-upgrade-kit

Feel free to upgrade your Neptune printer. Enjoy Printing :)

I remix design of MAD Base & Quick Mount designs to use on my Neptune4Plus for better changing Extruder Kit in more convenient way.
