Prusa Mini Enclosure PSU mounts

PSU mounts

The Prusa Mini is a fantastic printer and the case is the perfect finishing touch.

I hope there will be some documentation on how to mount the PSU's so that the printer can be carried around without dangling external PSU's.

Until then, here is a model of a PSU mount for the MINI Main PSU.

NOTE: There seems to be different MINI Main PSU versions out there for the Prusa mini, please check before printing !

As a bonus a trick on how/where I mounted the Filtration / LED PSU with 2 cable ties.

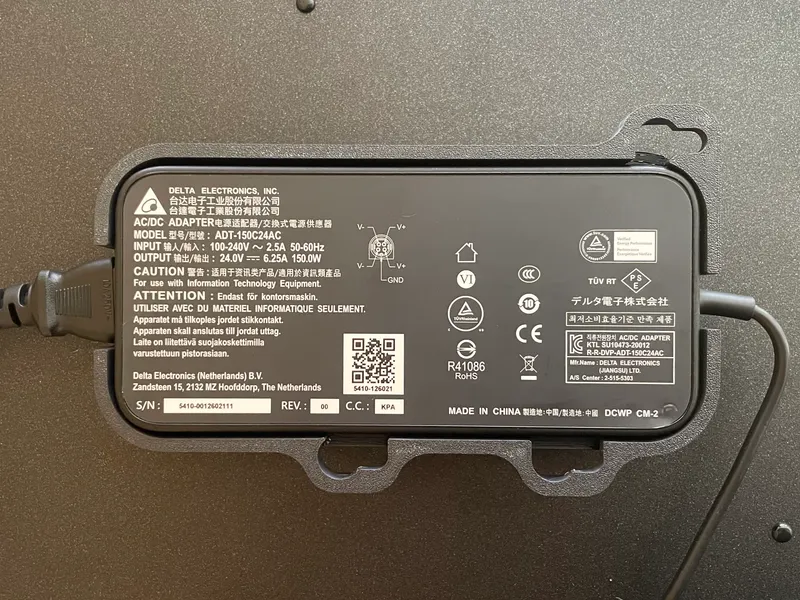

#1 Prusa MINI Main PSU mount

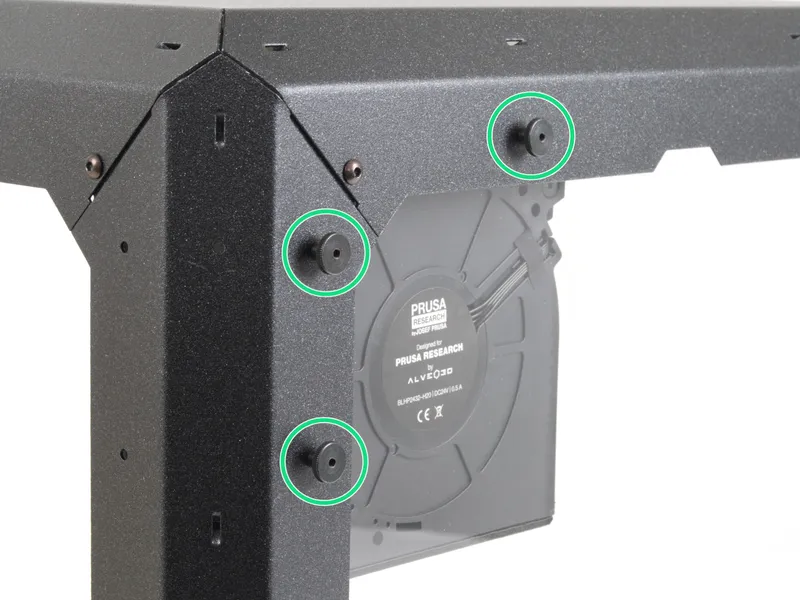

This is a PSU mount for the Prusa Mini Enclosure that fits into the "Thumb nut M3" that comes along with the "Advanced filtration system (add-on)"

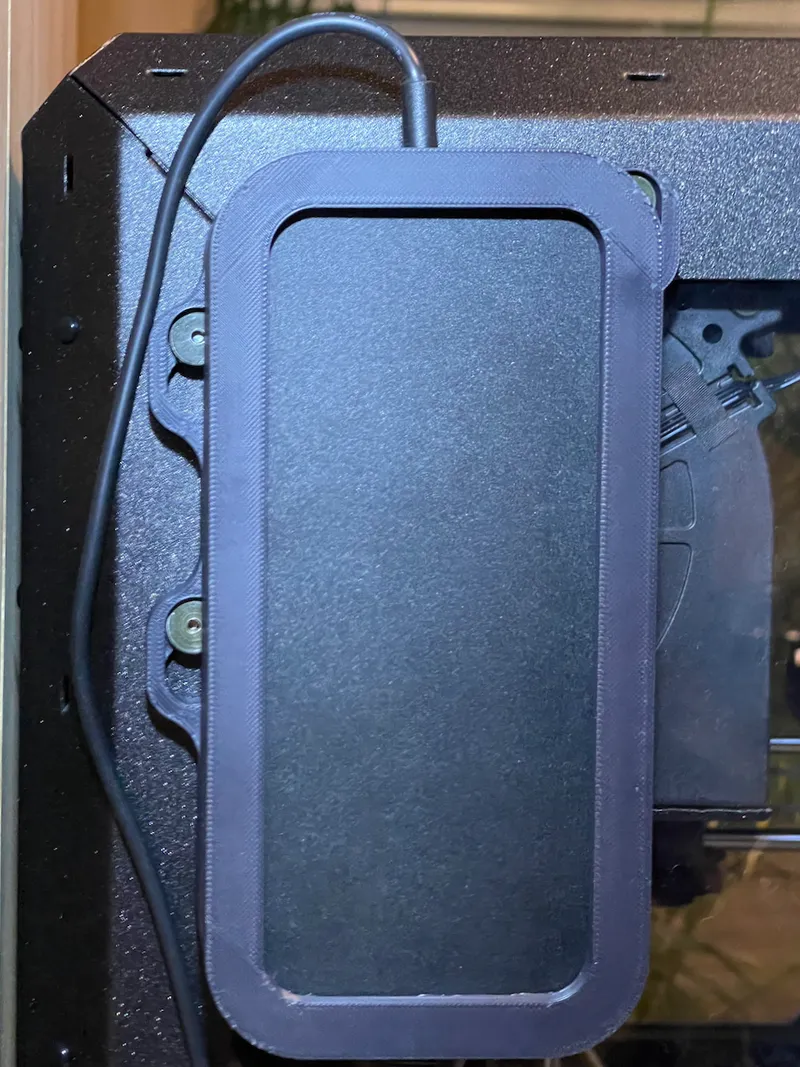

The PSU mount is simply hooked into the 3 thumb nuts.

Print recommendation:

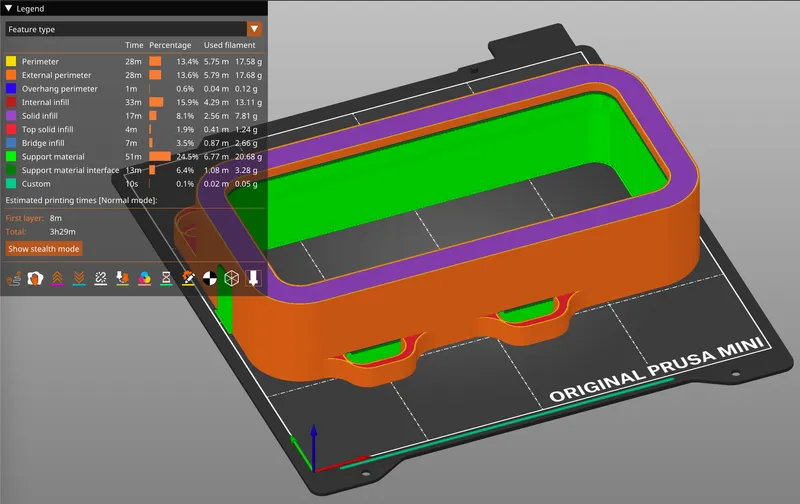

Print the direction shown below, it requires a bit more support structure, but it will have much better finish on outside also better fit for the thumb nuts.

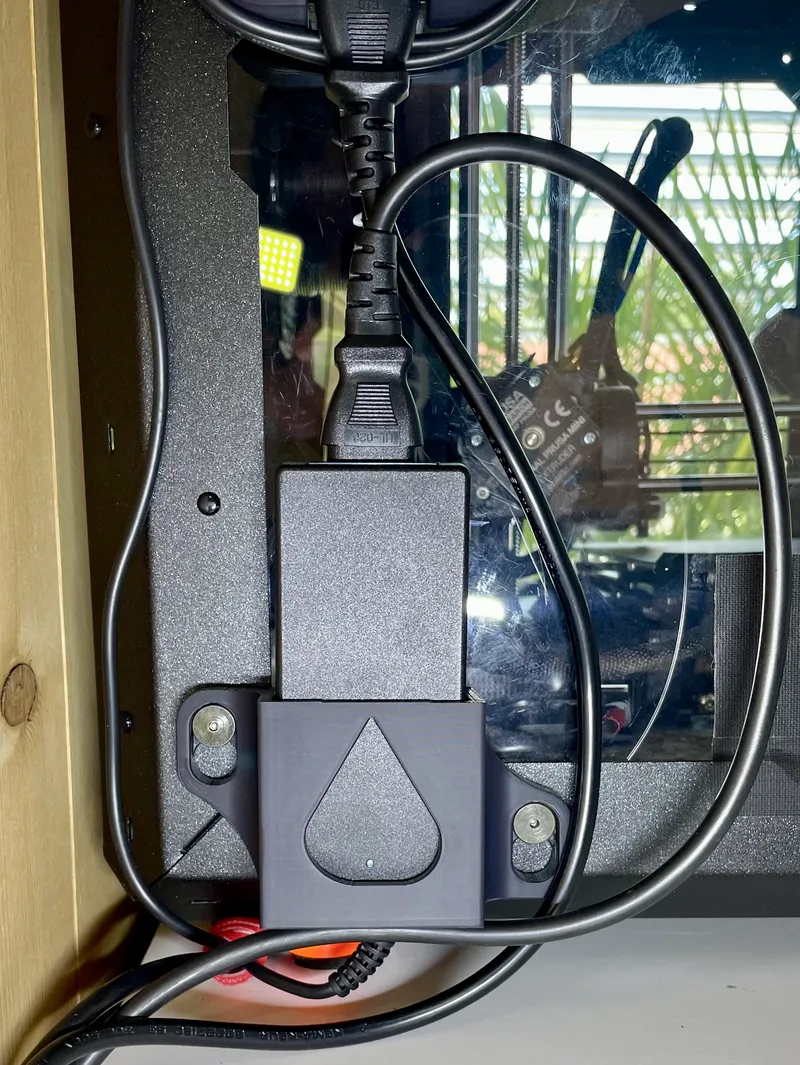

#2 Filtration / LED PSU  mount

For the FAN PSU I added an additional Model Prusa-mini-enclosure-FANPSU-mount-V1.stl

There are 2 "Thumb nut M3" left that can be used for the 2nd mount for the FAN PSU.

Print recommendation:

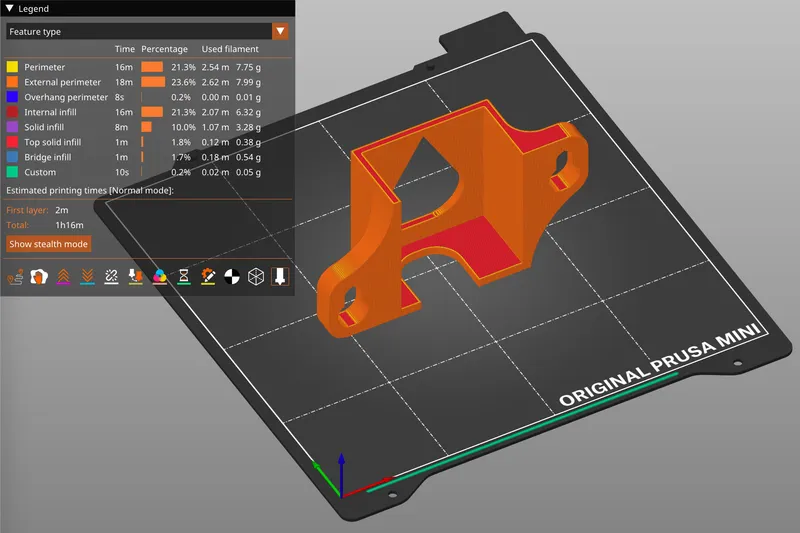

Print in stand direction, no support needed.

Enjoy your Prusa Mini Enclosure, now with the PSU's mounted to it.

Thanks,
nean

Changelog:

20240707: Prusa-mini-enclosure-PSU-mount-V3 → more 0.2mm more freedom tolerance for the thumb nuts

20240726 : Prusa-mini-enclosure-FANPSU-mount-V1 added

20240729: DimTrit release: Prusa-mini-enclosure-FANLEDPSU-mount-M3heatinsert-V2 and Prusa-mini-enclosure-FANLEDPSU-mount-M3heatinsert-V2 added
