Customizable Star Trek Tags

With PrusaSlicer you can easily make your own Star Trek stand tags with the ability to adjust text, font, size, and positioning.

The idea is simple: you open a blank tag in the slicer then add in a provided logo stl, then using PrusaSlicer's built in 3D text generator you make your own label then merge it all together into a solid model.

Update Log

July 13 2024 - Added missing Nemesis logo.

Model Notes

The logos provided are pre-scaled so should be ready to just add and position (except ‘Enterprise’ logo is too wide.)

There is also a ‘magnet negative’ file that can be used to add 6x2mm magnet holes to the peg-less tags. This can be done with PrusaSlicer's negative modifier. Also can be scaled-up on z to add a keychain hole instead.

Instructions

If you are familiar with adding text using PrusaSlicer, these are the quick settings:

Set font to ‘Tw Cen MT' and enable 'Bold’. (this is if you want the tag to match the same format as the original tags, otherwise use any font you want)
Set scale of text object to 72%
Set text ‘Depth’ to 3.1 mm

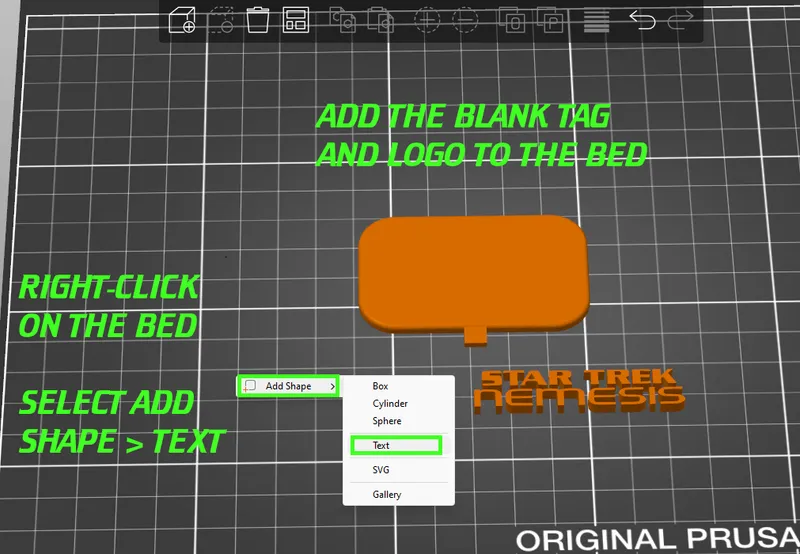

Step 1

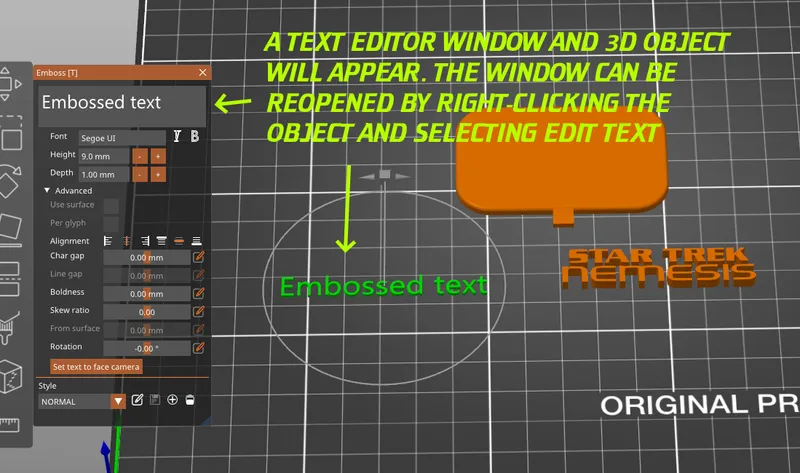

Step 2

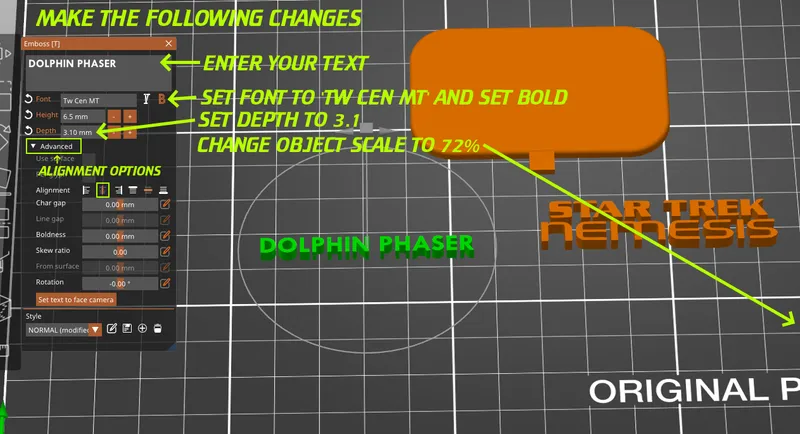

Step 3

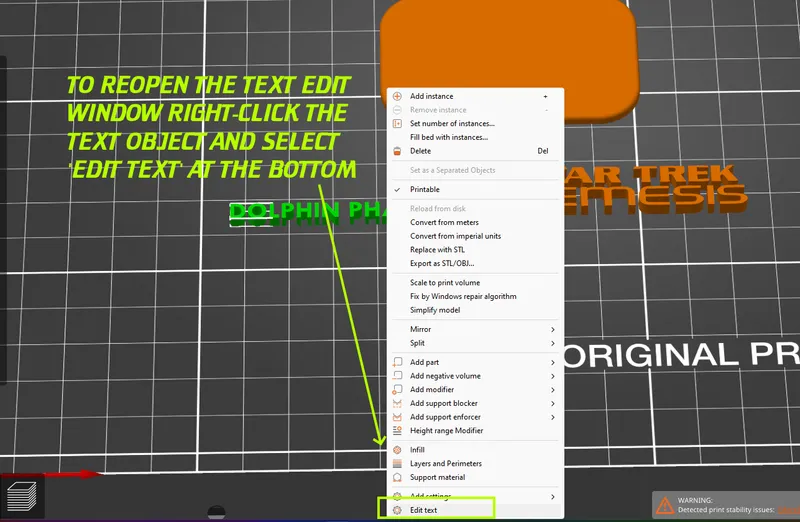

Step 4

Step 5

Step 6

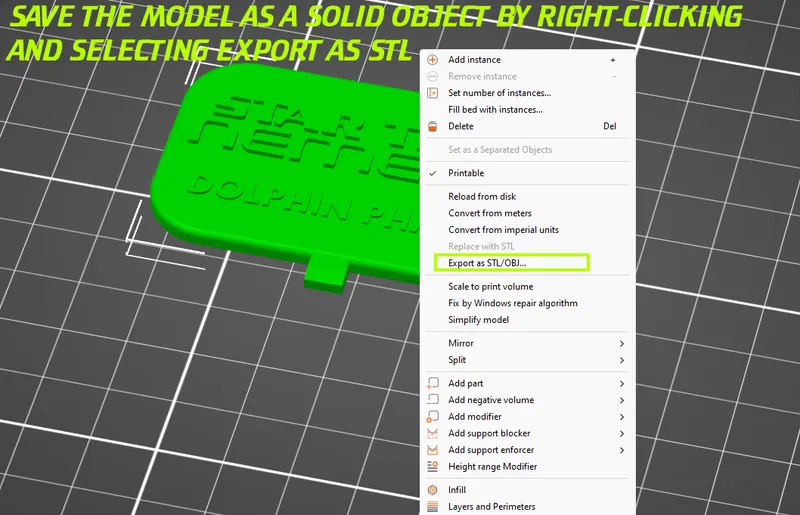

Step 7

Feel free to share remixes of your custom tags.
