Swash Plate Engine (No Extra Hardware Needed)

This fully 3D printable swash plate engine is based on the INNengine e-REX. It is not to scale to the e-REX, but shows how it functions. The model rotates to show the piston movement and has a removable section to view inside the engine. Intake, exhaust, and cooling channels are featured to show basic functionality.

The model is sectioned into pieces that are printable on a 220mm x 220mm x 250mm build volume. All parts are 3D printable so no additional hardware is needed to assemble.

Part names with quantities and suggested infill are listed in the Swash Plate Parts List.pdf file. Everything is designed so minimal supports are needed. The suggested orientations and paint on supports are shown below. Blue is on the build surface and Green is where support is needed.

MAIN BODY CUTOUT (No Support)

MAIN BODY LEFT (Paint-On Support)

MAIN BODY RIGHT (Paint-On Support)

BODY END CUTOUT (Supports on build plate only)

BODY END RIGHT (Supports on build plate only)

BODY END LEFT (Supports on build plate only)

BODY END BOTTOM (Supports on build plate only)

BODY END BOLT (No Supports)

SWASH PLATE (Paint-On Support)

DRIVE END SHAFT (No Supports)

DRIVE END SHAFT SCREW (No Supports)

MAIN DRIVE BEARING (Supports on build plate only)

PISTON & PISTON RIGHT (Paint-On Support)

PISTON BEARING PIN (Paint-On Support)

PISTON BEARING PIN SCREW (No Supports)

PISTON BEARING DOWN FORCE (No Supports)

PISTON BEARING UP FORCE (No Supports)

SPARK PLUG (Paint-On Support)

EXHAUST BASE (No Supports)

EXHAUST ELBOW (Supports on build plate only)

EXHAUST MERGE (No Supports)

INJECTOR BASE (No Supports)

INJECTOR END (Paint-On Supports)

INJECTOR CONNECTOR (Supports Enabled)

INTAKE_EXHAUST SCREW (No Supports)

INTAKE (No Supports)

STAND KNOB (No Supports)

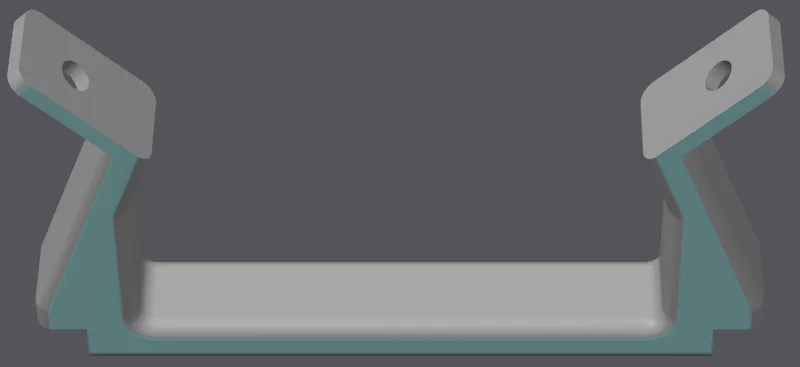

STAND SIDE (No Supports)

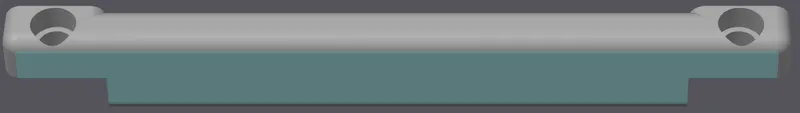

STAND BOTTOM BRACE (No Supports)

STAND BRACE SCREW (No Supports)

HAND CRANK ARM (No Supports)

HAND CRANK SHAFT (Supports Enabled)

HAND CRANK SCREW (No Supports)
