Breathable, minimal, lightweight
90
355
2
2089
updated February 14, 2025

Description

PDF

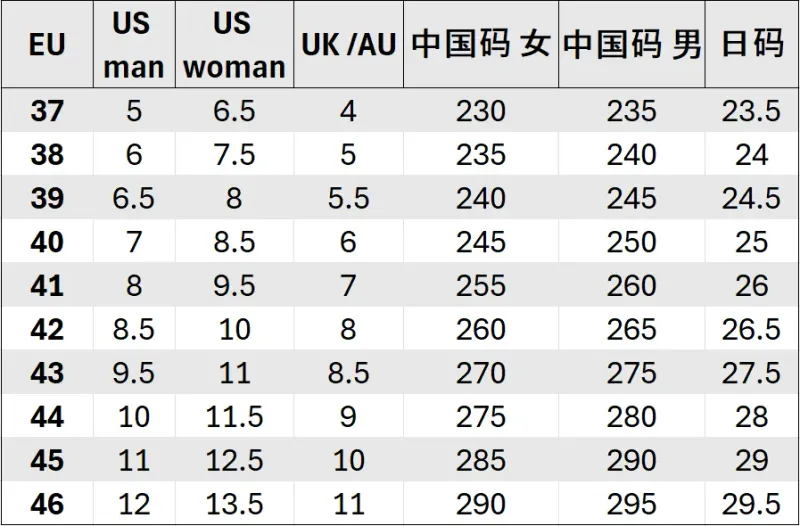

Shoes sizes: EU


Filament: Recreus 82A

Use TPU 95A first (Overture), don't use "high speed", "high flow" (too rigid)


---


I recommend to download “Tora print files.zip” folder and use the universal print files (gcodes) you find inside the folder instead of slicing the 3d models.

Upload the gcodes on an SD card and insert it in the printer. Launch the gcode from the printer interface, ignore warnings and proceed. Adjust temperature and fan speed once the print starts to fit your filament needs

Printer requirements for the gcodes: 0.6mm nozzle and 250x250mm buildplate

Mk3 / Mk4 / Core One buildplates fit gcodes up to size EU 40

Depending on the size, each shoe takes 3 to 5 hours, weights 60 to 90 grams


---


Settings (Cura):

  • place the model diagonally (45°), with the front and external part facing the user
  • layer height: 0.36mm
  • infill line width: 0.65
  • wall line count: 0
  • top layers: 0
  • bottom layers: 0
  • initial bottom layers: 0
  • infill line distance: 3mm
  • infill pattern: grid
  • connect infill lines: yes
  • infill line direction: []
  • randomize infill start: yes
  • infill overlap: 0mm
  • infill speed: 18mm/s
  • combing mode: off
  • z hop: 1.2mm

settings modifier (300x300x1.1mm solid, placed around Z = 1.7mm, to make an internal flat top 3 layers platform to place the feet)

  • infill pattern: zigzag
  • infill line distance: 1mm


How to design and slice: https://www.youtube.com/watch?v=6ae-rzo_zJM


---


Website: riverfamily.art


---


LICENSE: Public Domain (https://creativecommons.org/share-your-work/public-domain/cc0/)

Also applies to gcodes, slicing process, pictures, videos and names
