Sovol SV08 XY 3D Printed Gantry

📢 Note about this Gantry

We’re not deleting this version — it will remain available for those who already use it and may need to reprint or replace parts.

👉 A new gantry repo is now live with major improvements:

New CoreXY belt tensioning system — AB motor belts can now be tightened from the front of the printer, similar to a Voron gantry

Redesigned XY joints with properly aligned pulleys

Check out the new design if you want the latest features and easier maintenance! 🚀

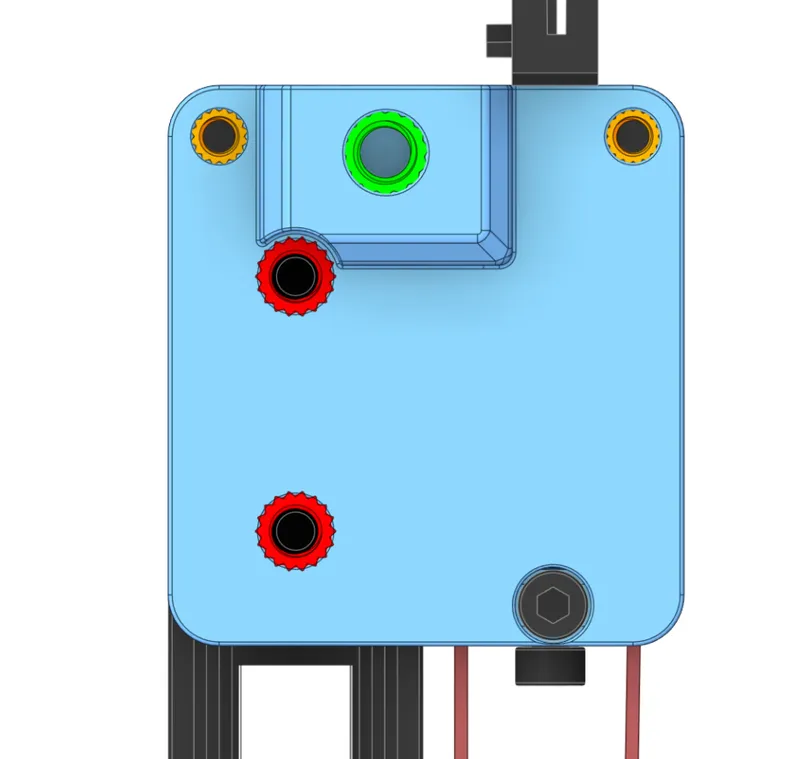

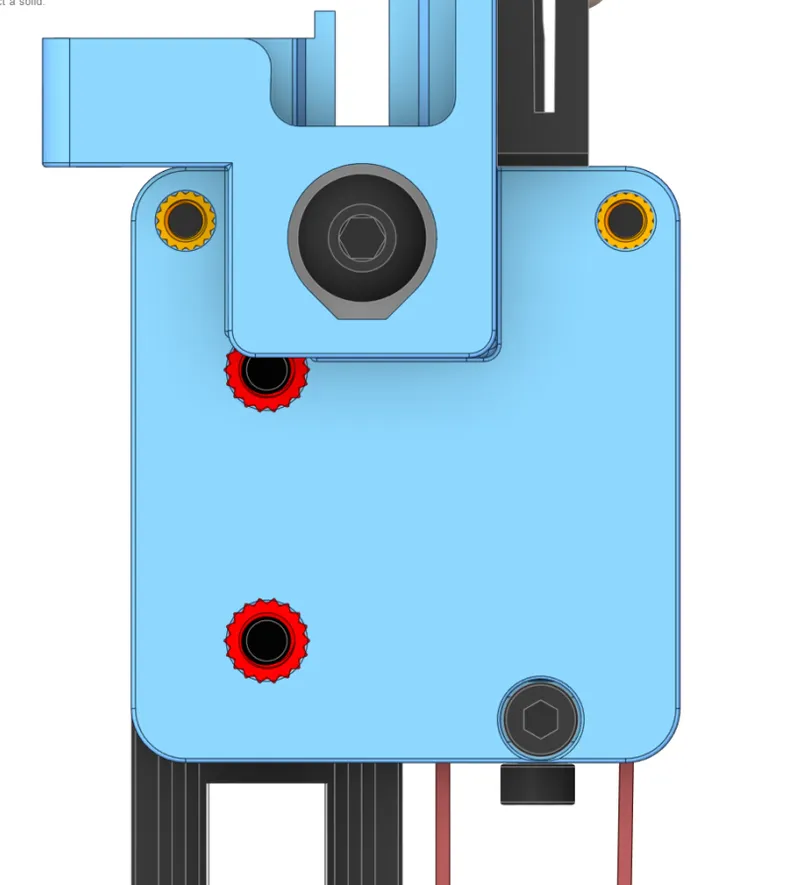

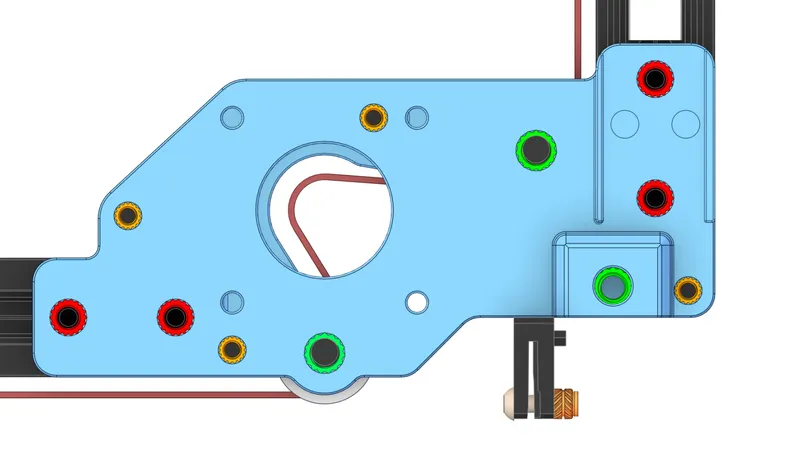

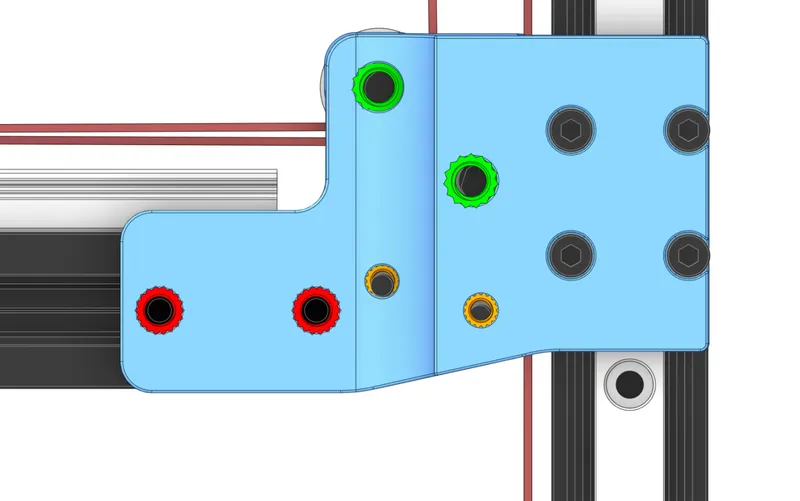

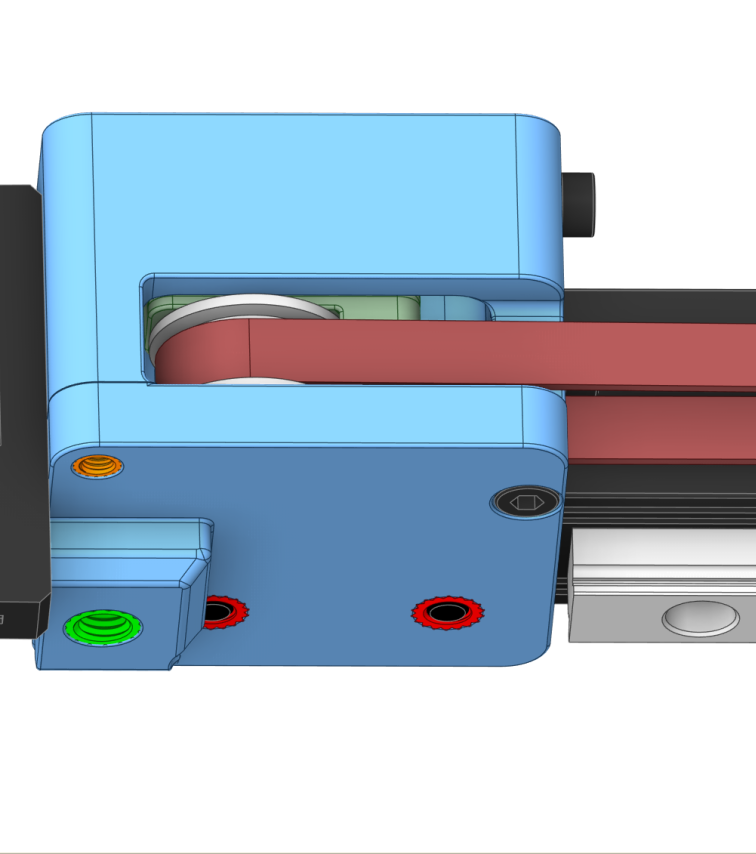

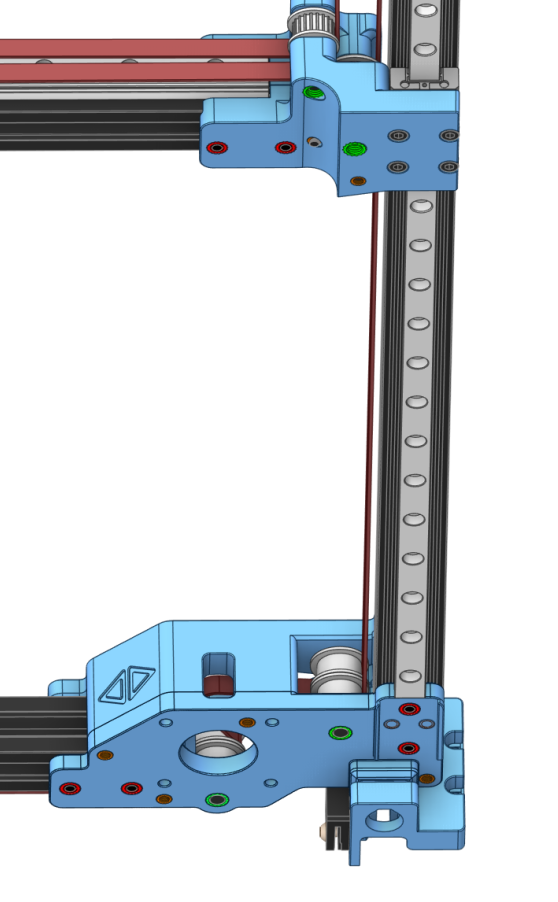

red are M4
green are M5
orange are M3
M3 are used to connect the 2 pieces together M4 are used to secure it to the gantry M5 are used where we have bearings/pulleys
heat set inserts https://s.click.aliexpress.com/e/_om9Ch6H
the M3 are OD4.5 and 4mm long
M4 are OD6-6.3 4mm long
M5 are   OD7-7.3 4mm long

Thanks to our members that have discovered that we have missed some locking pins in the Z

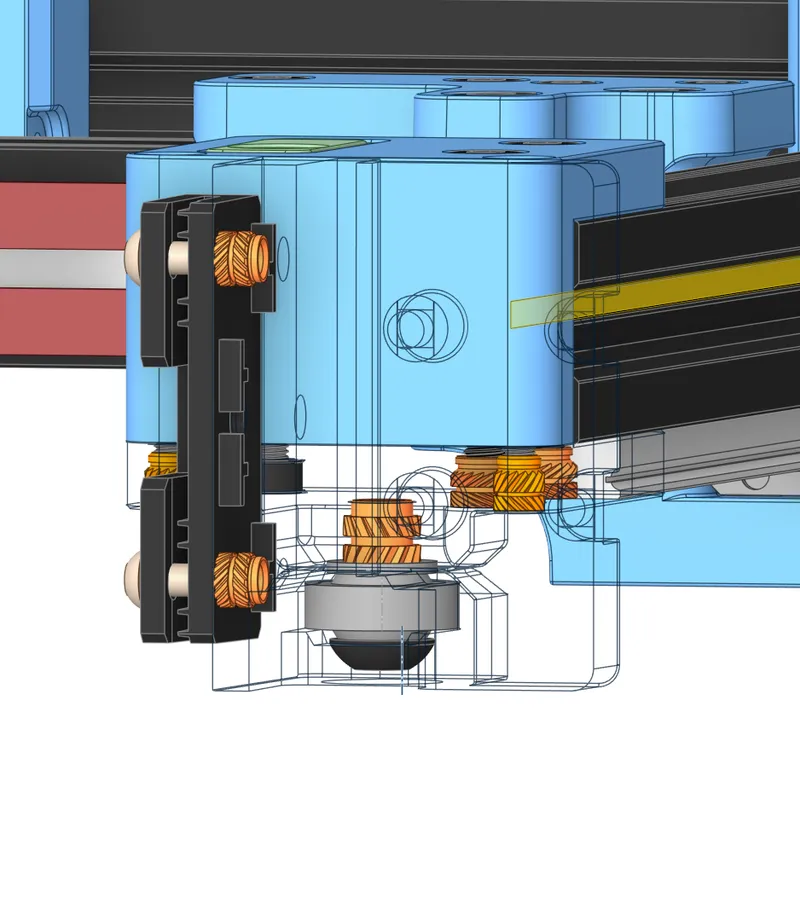

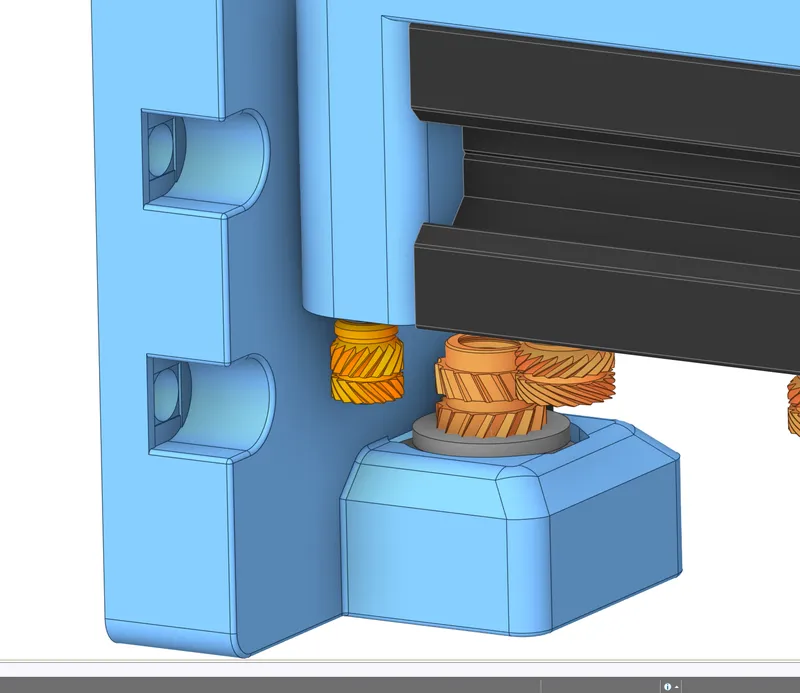

xy gantry Z4 mount the one with the Ge5s bearings

we have updated  the XY Gantry mounts

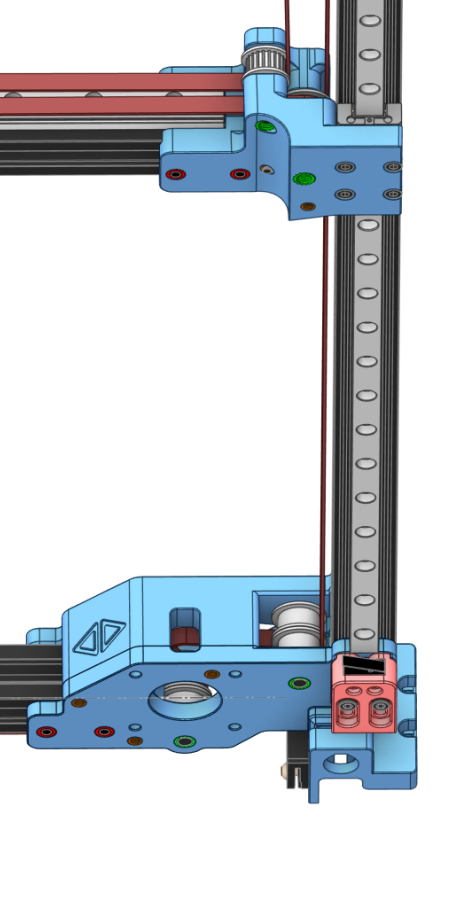

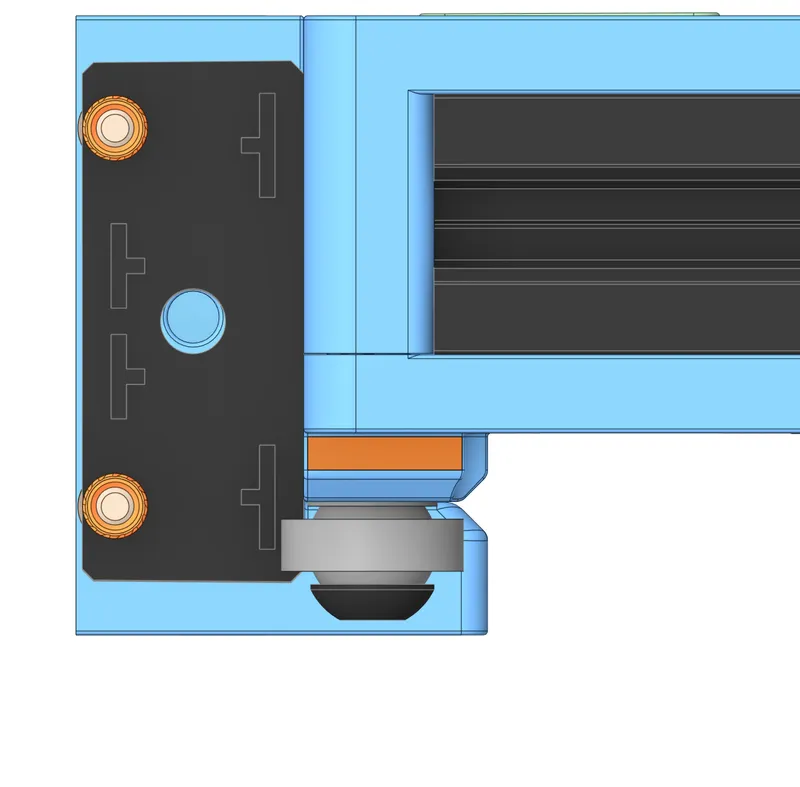

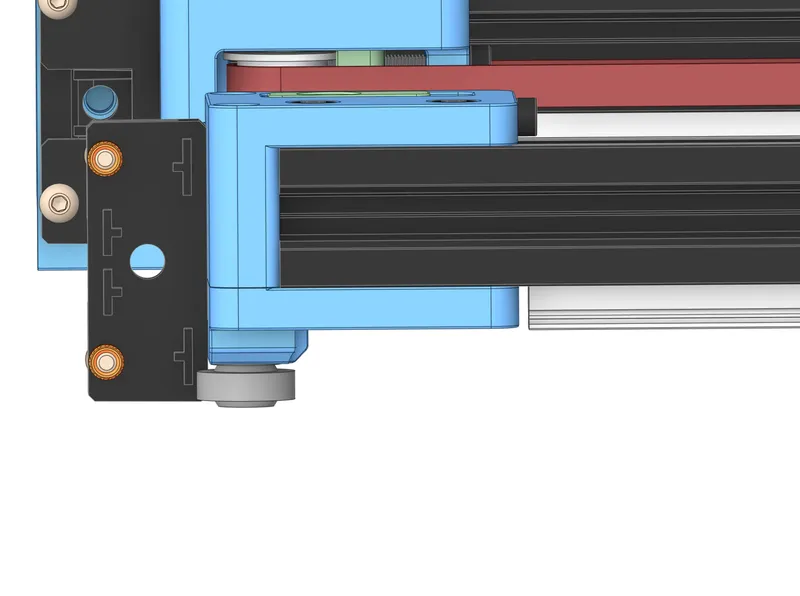

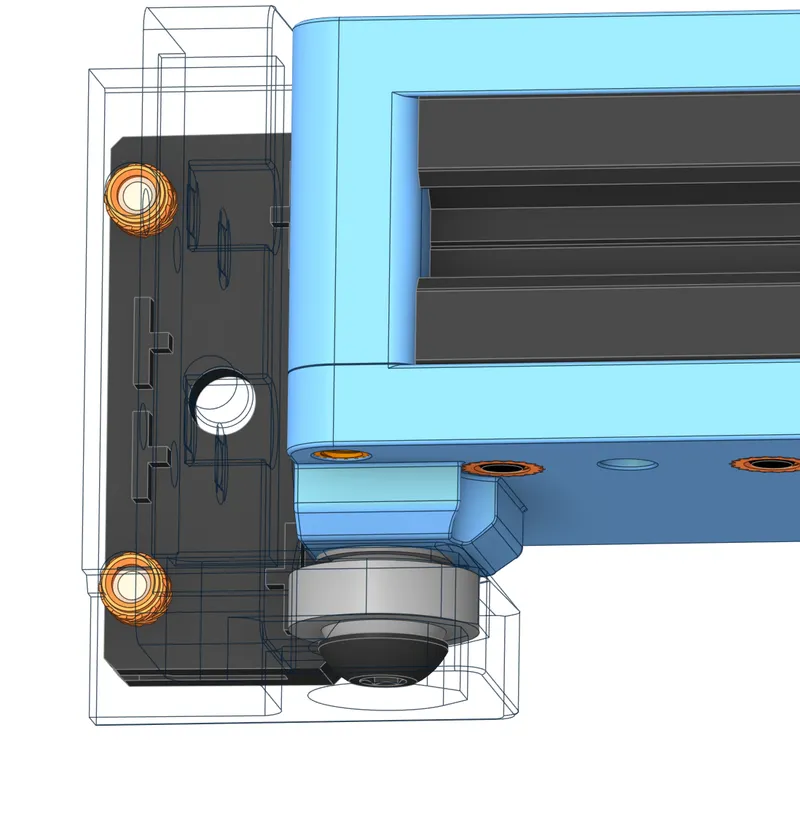

Added this pictures for reference just for an easier install

Later Edit: 2 December 2024

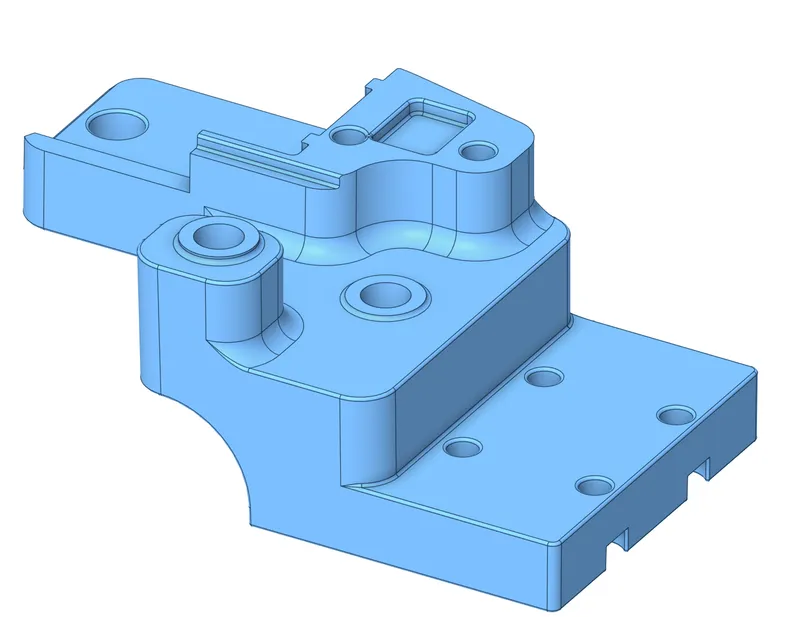

Accommodate for better fitment of the pulleys and also more room for bigger pulleys

Later edit: 11 November 2024

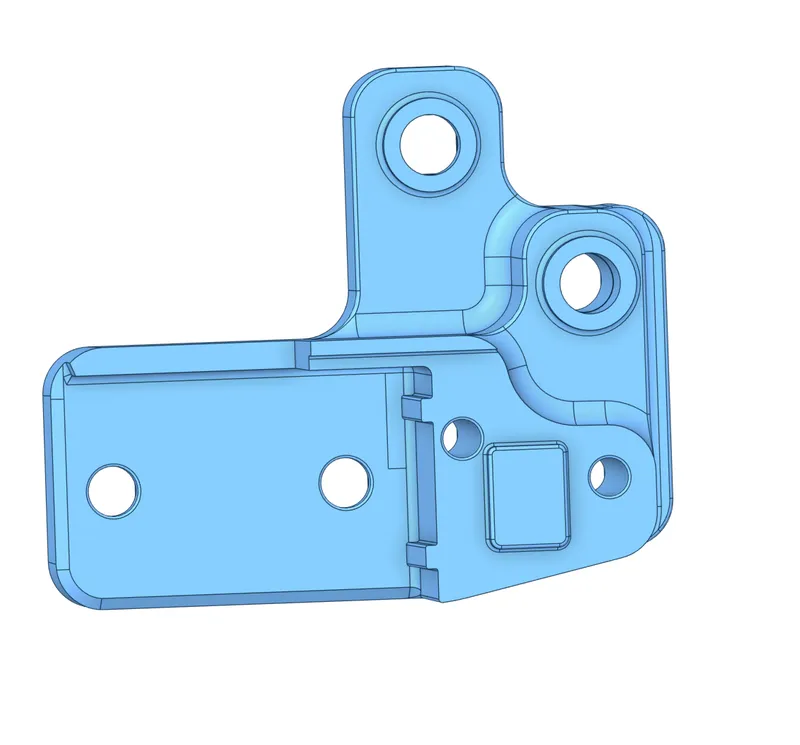

We have added the Y endstop holder
The Y endstop is located in the same place we made it for the original gantry and you need to print this 2 pieces that we have just added

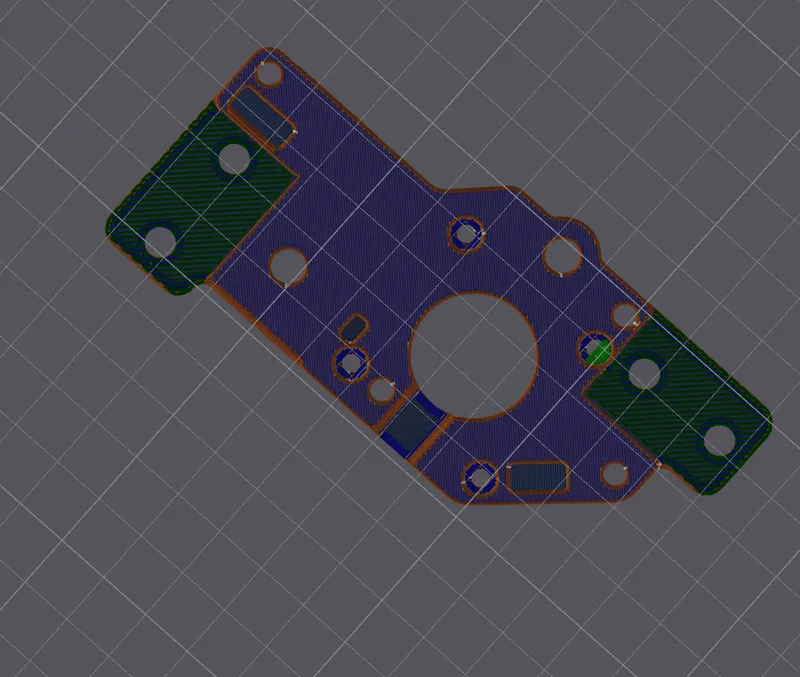

The blue part it is already pre oriented and it needs a small layer of support.

Later edit: 10 August 2024. I have updated the files almost 3 weeks ago and i forgot do upload them here.
The only files that have been modified are the XY gantry  Z mounts. all 4 of them.

Later edit: 19 July 2024. I have deleted all the files and reupload them. And now i have also oriented them to be ready to print.

Here we have a fully 3D printed gantry for the Sovol SV08 that has some integrated mods.

Easy to print, easy to service, easy to assemble
Proper XY Belt Tensioning System
Flexible Z joints integrated in the gantry carrier

Here are a list of hardware that you will need to assemble
NOTE:  you can still use your factory pulleys and belts!

Heat set inserts

40x M3x5mm
20x M4x5mm
20x M5x5mm

Screws

6x M3x5
12x M3x8
2x M3x12
14x M3x25
4x M3x30
4x M3x40

16x M4x40

4x M5 x 1 Spacer (washer)
2x M5x10 Button head screw
2x M5x18
8x M5x25
4x M5x35

Bearings

4x GE5C

Please keep in mind some parts require support!

Keep an eye on the Youtube channel I will make a video installing this mode soon!
