Gridfinity threaded pin / plug tap bin - V2

A stackable Gridfinity 1x2x3 bin with a raiseable cassette containing 5 threaded pins / plug tabs / screw taps with the following diameters:  3, 4, 5, 6 & 8 mm.

The cassette can easily be raised for easy access or lowered for compact storage.

There are cassettes for storing the taps with the cutting edge out or in (i.e. protected) depending on your preference.

Print settings

• Nozzle 0.4mm
• Layer height 0.2mm
• 3 Perimeters

For the cassettes

• Organic supports - from build plate only


Assembly

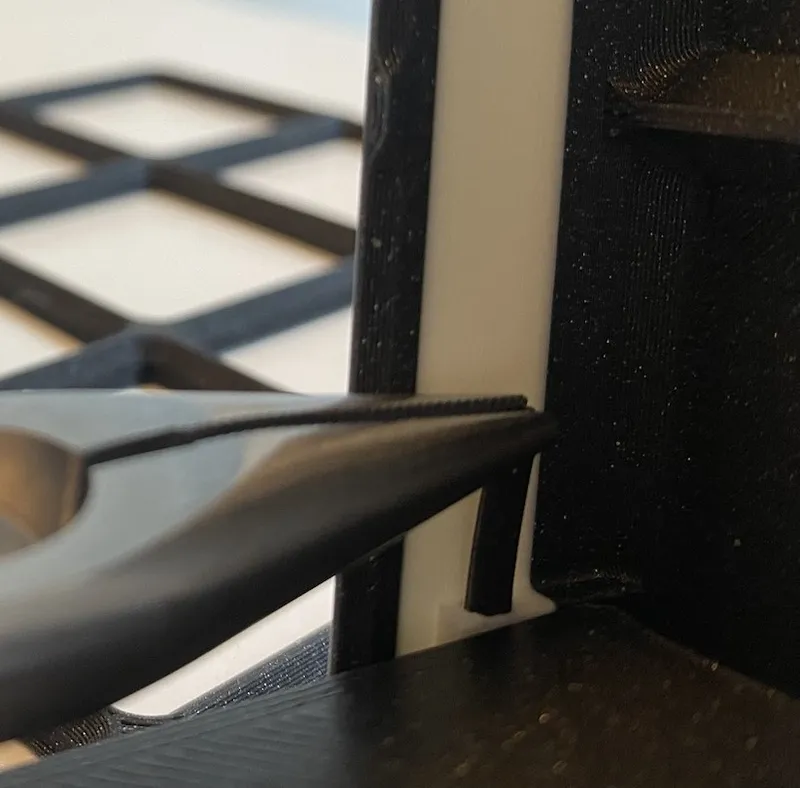

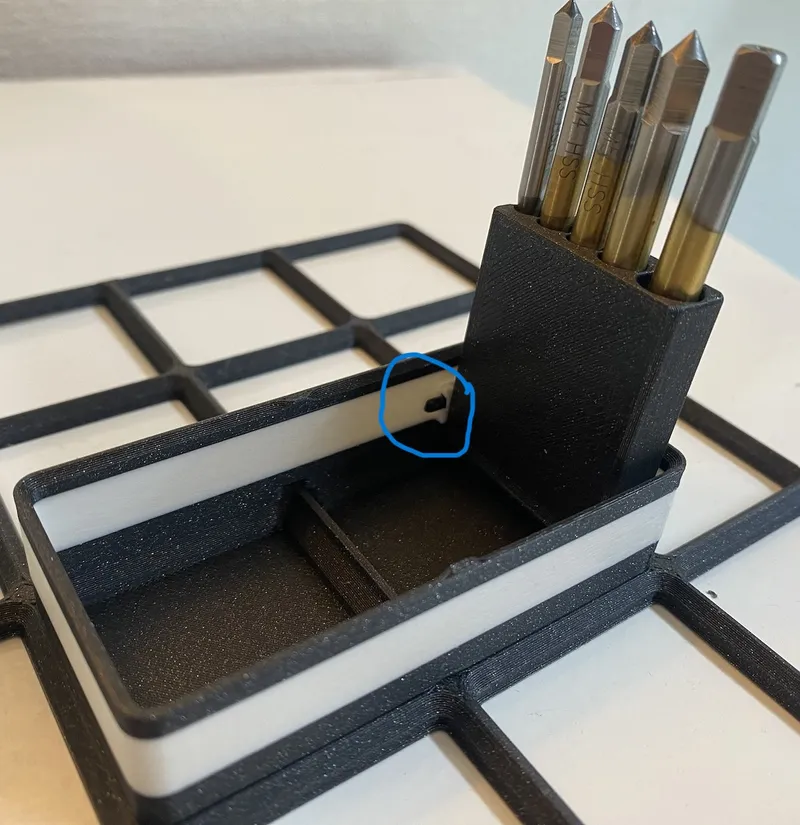

After installing the cassette in place, install the lock pins to keep the cassette in place.

Attribution

The base box is generated with the Fusion 360 GridfinityGenerator, https://apps.autodesk.com/FUSION/en/Detail/Index?id=7197558650811789.

Added lock pins to the hinges that keeps the cassette in place and improves the tilting so that the taps are kept in place.

Added alternative plug tap cassettes:

• Cassette for storing taps with the cutting edge out.
• Cassette for storing taps with the cutting edge out - snug fit.
• Cassette for storing taps with the cutting edge in - same as original.
