SLYNX 2.1 - Linear Rail Mod (Remixed from ZAX's LONX mod)

9/7/24:

• Reuploaded the correct thicc pump files.

29/6/24:

• Added the top pump for MGN9H rail (I've only tested for C rail, should work the same regardless).
• Added a shroud base that works with the older lynx receiver without the interlocking bits.

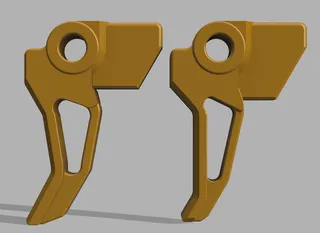

• Added alternate top pump assemblies which are slightly thicker. Print this if the default pump is breaking around the front.

Refer to the original mod by ZAX for assembly instructions.

However for the pump use the following metric hardware:

• M4 x 8mm screws
• M4 nuts
• 6 x 7mm ball detent (optional)

I've not tested with lock washers, but you'll most likely need M4 x 10mm instead.

• Changed the tolerances for the top pump assembly, holes widened slightly for M4 screws.
• Spine slightly shortened, hole for the pin and pump detent moved back.
• Front pin hole for the shroud moved back.
• Bottom pump holes widened for M4 nuts.
