The 100 Orbiter Direct Drive Toolhead

Summary

This is a direct drive toolhead for The 100 printer. One of my main goals with this mod was to fit the fan shroud/motor mount to the stock rod carrier w/ a CHC hotend.

BOM

• Orbiter Extruder w/ LDO motor (link)

Updates

• 6/25/2024 - Removed 4010 fan from BOM, opting to use 5015 fan instead

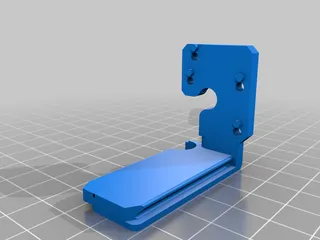

• 3/08/2025 - Added .step files for ducts, upper duct, front face, and motor mount bracket. Revised motor mount bracket.

--------------------------------------------------------------------------------------------------------

This mod is still very much a work in progress and is actively being revised.
