Creality K1 / K1C Unibody Riser Hinges

Hinges for the Unibody Riser
282
2523
13
9832
updated October 20, 2024

Makes

Comments

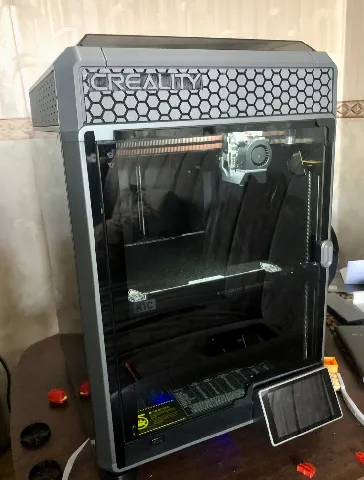

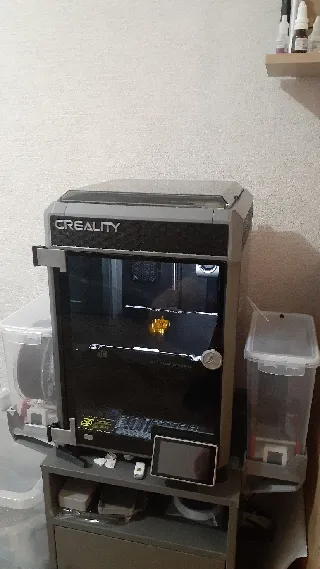

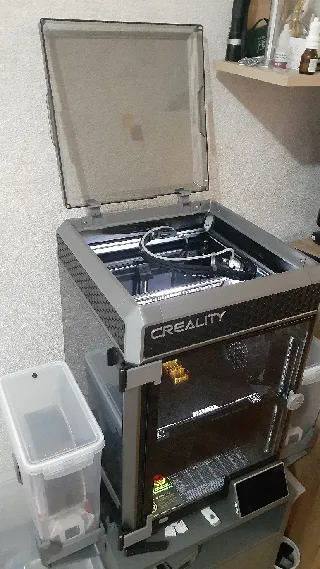

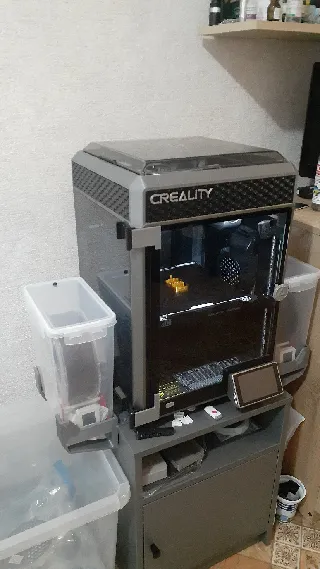

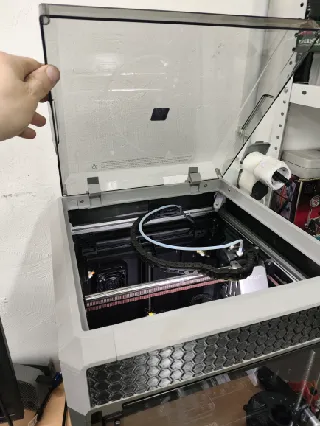

Perfect fit!

Image preview

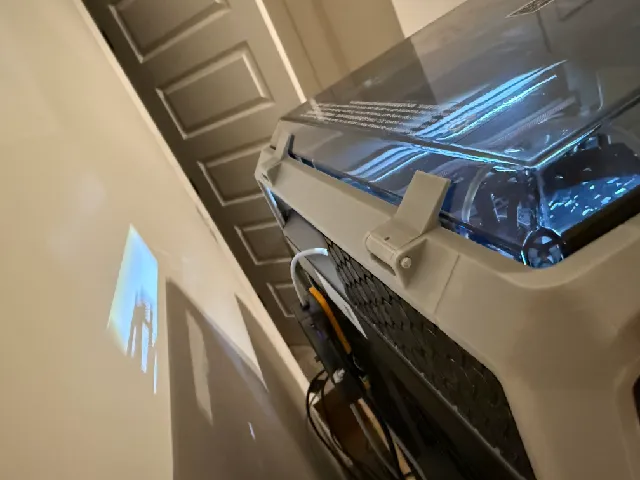

Remixed and made a stronger version of the hinges, using M5*25 bolt and nut. (edited)

Image preview

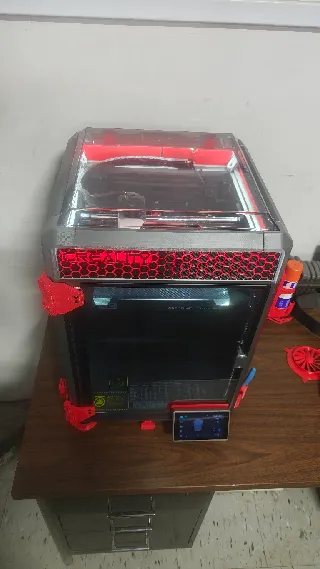

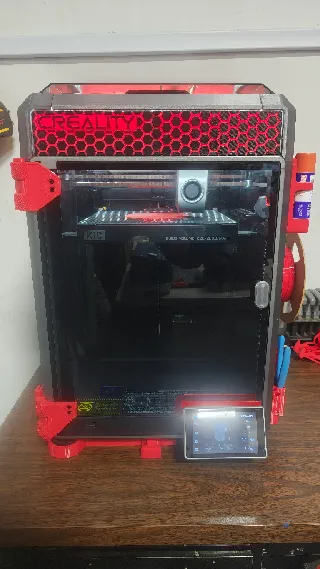

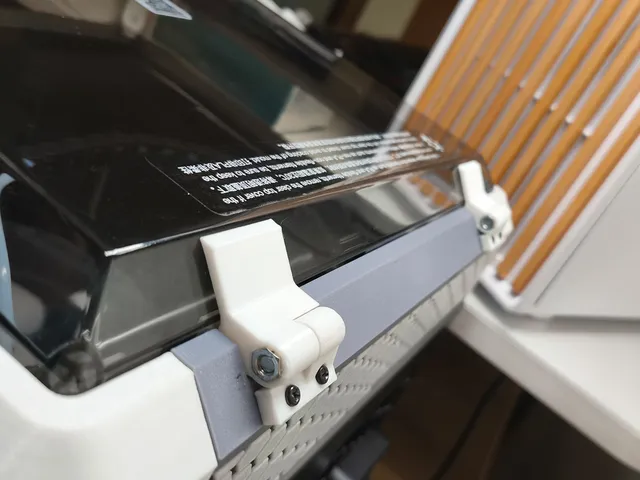

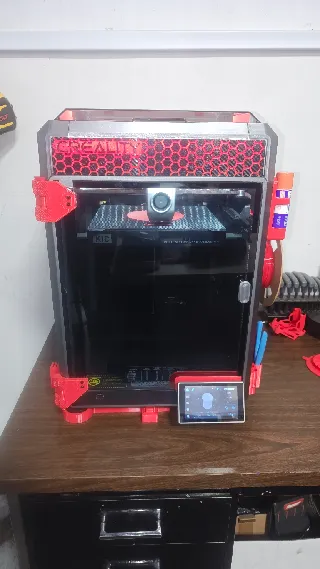

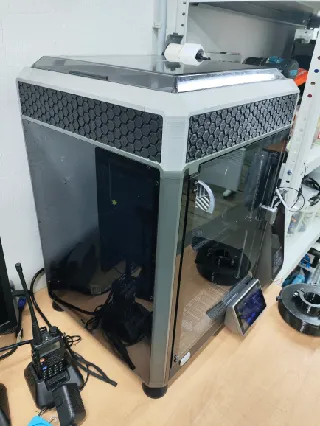

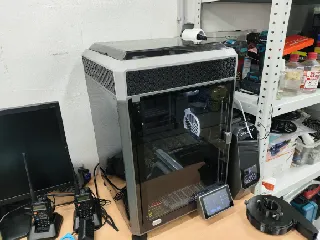

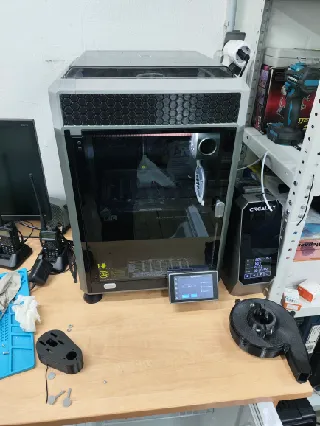

Amazing print, I did 2 colors with the led strip I installed it makes the top light up through the red.. Only issue I have the hinges keep popping off the lid when I open the top not sure why I used new version

Image preview
Image preview
Image preview

@JoeDavis_1516574 How did you get the light to go threw the red?

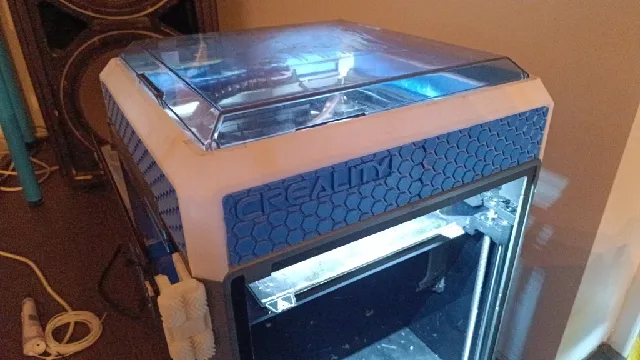

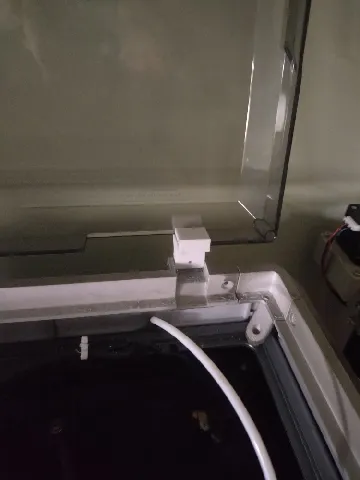

Printed well, very nice snap to insert, all fits good. Just not a fan of it opening so much, the cover almost falls out

Image preview

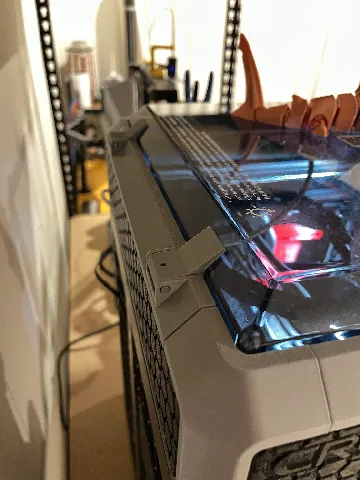

I love this Riser! Easily the tidiest looking and closest to the K1 design.

Printed really well as recommended, face down with painted supports only.

Silver CR-PETG

Image preview

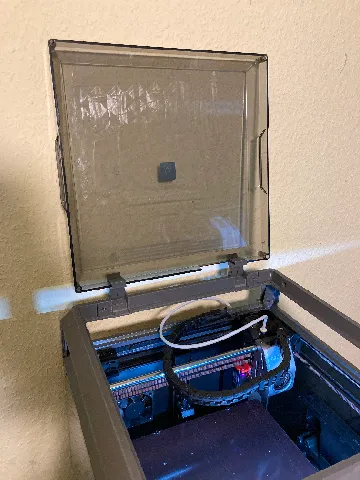

Works great. I had an issue printing the pins in the angled orientation the the model came in, but I'm new and probably should have printed with support or something. I was able to print working pins by standing them on end and cutting off the base in the slicer, then printed with a brim and they came out perfect.

Image preview

Hi! Sorry for newbie question... Whats the best material to print the pins between ABS and PLA?

@RickFywre_2604845 i would say PLA is fine. I printed it with PLA as well.
