Grinderino Camera Angle holder

To hold the camera at a 29º, the camera kept changing angle a lot when I landed(crashed) and a little when I punched it
2
17
0
155
updated July 24, 2024

Description

PDF

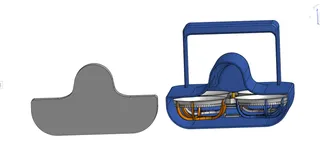

It holds the camera at a 29° angle but since it's parametric CAD you can go into on shape and change that angle and really everything about that design. My camera is the foxeer razor V2 Mini, and if you've had the problem of your camera being loose, this will help. I couldn't tighten the screws enough, so this is what I have to resort to, but it works well.  My camera is thick so I use the shorter one but there is a longer one and that is underneath in the files that will help if you have a smaller camera, and if it doesn't work you can always go into the CAD and change everything about it.

It’s untested right right now because my printer is broken so give me a minute to fix it

https://www.racedayquads.com/collections/all-mini-fpv-cameras/products/foxeer-razer-v2-mini-1200tvl-4-3-pal-nstc-cmos-fpv-camera-2-1mm-black

Tags



Model origin

The author remixed this model.

Differences of the remix compared to the original

I used his front bumped, i made the holes bigger as my first prototype didn't fit (printers Fault) and I added the angle holder ofc.
