Desk lamp clamp holder mount

Robust and easy to print lamp base. Replaces the stand for articulating desk lamps
59
209
4
892
updated March 31, 2025

Description

PDF

Can be clamped to your desk and holds your lamp in place.
The Base features an insert which can be customized in order to make it fit for any kind of lamp, if your particular model has slightly different dimensions.
You'll also find the .STEP too if you have to modify it even further in order to make it fit for your lamp.

Printing:

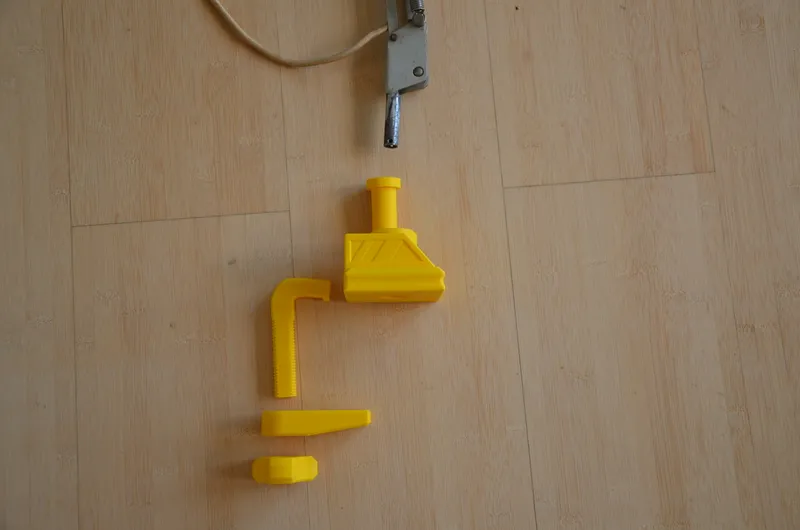

Print all parts in their given orientation. The Base, Insert and Nut do not need that many perimeters. 2-3 are enough. The Clamp and ThreadedRod should be printed a little more massive in order to encounter deforming and material creep, if printed out of PLA. Layerhight of 0.25mm (nut with 0.2) worked fine for me.
No support material needed





CHANGELOG 13.03.2025
Added a Base with different design
