Temp Tower (Fast)

A Temperature tower that prints in less than an hour. Quick filament temperature calibration.
48m
3× print file
0.20 mm
0.40 mm
PLA
Flex
PET
4.00 g
533
7826
116
20 k
updated December 12, 2024

Description

PDF

I wanted a temperature tower that was fast as most of the models would take several hours. Found this model by spiga76, changed the PLA model a bit to go from 230-190 instead of 240-200 and added labels for filament types.



Printing

For easier configuration, we can apply G-code to "Printer Settings" > “Custom G-code” > “Before layer change G-code” (Using PrusaSlicer).

↳ Prusa Slicer configuration



PLA

;BEFORE_LAYER_CHANGE
G92 E0.0
;[layer_z]
{if layer_z>=0.00 && layer_z<7.60} M104 S230 M109 S230 {endif}
{if layer_z>=7.60 && layer_z<13.80} M104 S225 M109 S225 {endif}
{if layer_z>=13.80 && layer_z<20.00} M104 S220 M109 S220 {endif}
{if layer_z>=20.00 && layer_z<26.20} M104 S215 M109 S215 {endif}
{if layer_z>=26.20 && layer_z<32.40} M104 S210 M109 S210 {endif}
{if layer_z>=32.40 && layer_z<38.60} M104 S205 M109 S205 {endif}
{if layer_z>=38.60 && layer_z<44.80} M104 S200 M109 S200 {endif}
{if layer_z>=44.80 && layer_z<51.00} M104 S195 M109 S195 {endif}
{if layer_z>=51.00} M104 S190 M109 S190 {endif}

PETG/FLEX

;BEFORE_LAYER_CHANGE
G92 E0.0
;[layer_z]
{if layer_z>=0.00 && layer_z<7.60} M104 S260 M109 S260 {endif}
{if layer_z>=7.60 && layer_z<13.80} M104 S255 M109 S255 {endif}
{if layer_z>=13.80 && layer_z<20.00} M104 S250 M109 S250 {endif}
{if layer_z>=20.00 && layer_z<26.20} M104 S245 M109 S245 {endif}
{if layer_z>=26.20 && layer_z<32.40} M104 S240 M109 S240 {endif}
{if layer_z>=32.40 && layer_z<38.60} M104 S235 M109 S235 {endif}
{if layer_z>=38.60 && layer_z<44.80} M104 S230 M109 S230 {endif}
{if layer_z>=44.80 && layer_z<51.00} M104 S225 M109 S225 {endif}
{if layer_z>=51.00} M104 S220 M109 S220 {endif}



Temperature preview

Starting version 2.4 (PrusaSlicer), there is a temperature preview of the model, this helps verify the correct configuration of the test model.

↳ PrusaSlicer preview configuration

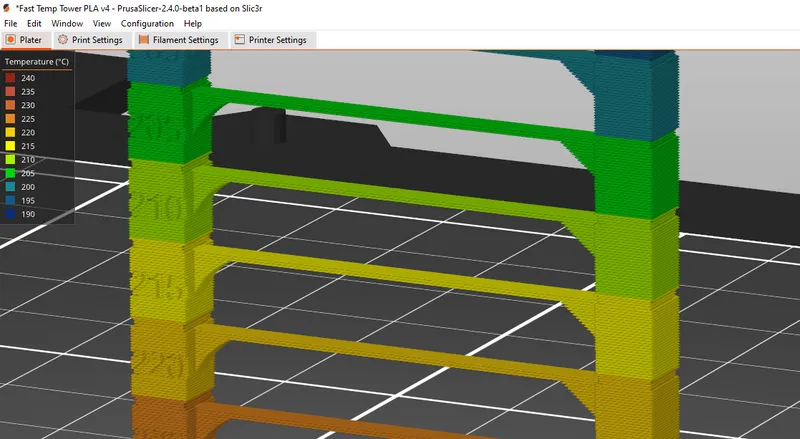

↳ PrusaSlicer temperature preview



Credits

Fast PLA and PETG Temp Tower by spiga76

Tags



Model origin

The author remixed this model.

Fast PLA and PETG Temp Tower
by Spiga76 (thingiverse.com)


Differences of the remix compared to the original

  • changed the PLA model a bit to have a  different number range
  • added additional models for other filament types
