ifixit Mako 2 drivers

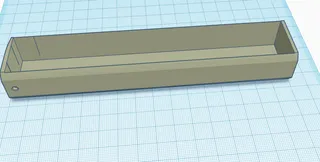

I made this in tinker cad so there are a couple of problems with the model, but it fit perfect for me
3
26
0
234
updated June 16, 2024

Description

PDF

This a replacement for the foam insert on the mako kit from I fixit with some modification. mainly that I got rid of the storage for the extension and instead added the space to store a second driver. I also added an extra cut out to allow you to place the screwdriver in the case with a bit still attached. (great for my use case because 9 times out of ten I'm opening the kit one specific bit.)

the original model called out the tight tolerances, in my print it slid perfectly into the case (to the point where I don't think I could get it out without damaging it.  The fit on the driver storage and the bit storage is a little too tight for my liking but everything fit, and I think taking out the bits and replacing them will wear the  print down and lower the tolerence.



the current version of the kit doesn't match the set in this one, there are 3 bits that don't match

The smallest square drive has been replaced with a plus.

The largest nut driver bit has been replaced with a magnet

The smallest 2 hole security screw was replaced with an ovel nut style driver.



I recommend printing with ironing enabled for better finish

Tags



Model origin

The author remixed this model.

Differences of the remix compared to the original

Removed the extension holder and added a second spot to hold a driver



additionally I added a extra carve out at the bottom of the screw driver set allowing for the screw driver to placed inside with the bit still attached.
