This is a stand for the EMF 2024+ Badge. It requires 2x M3 x 6mm machine screws.
2
7
0
109
updated June 11, 2024

Description

PDF

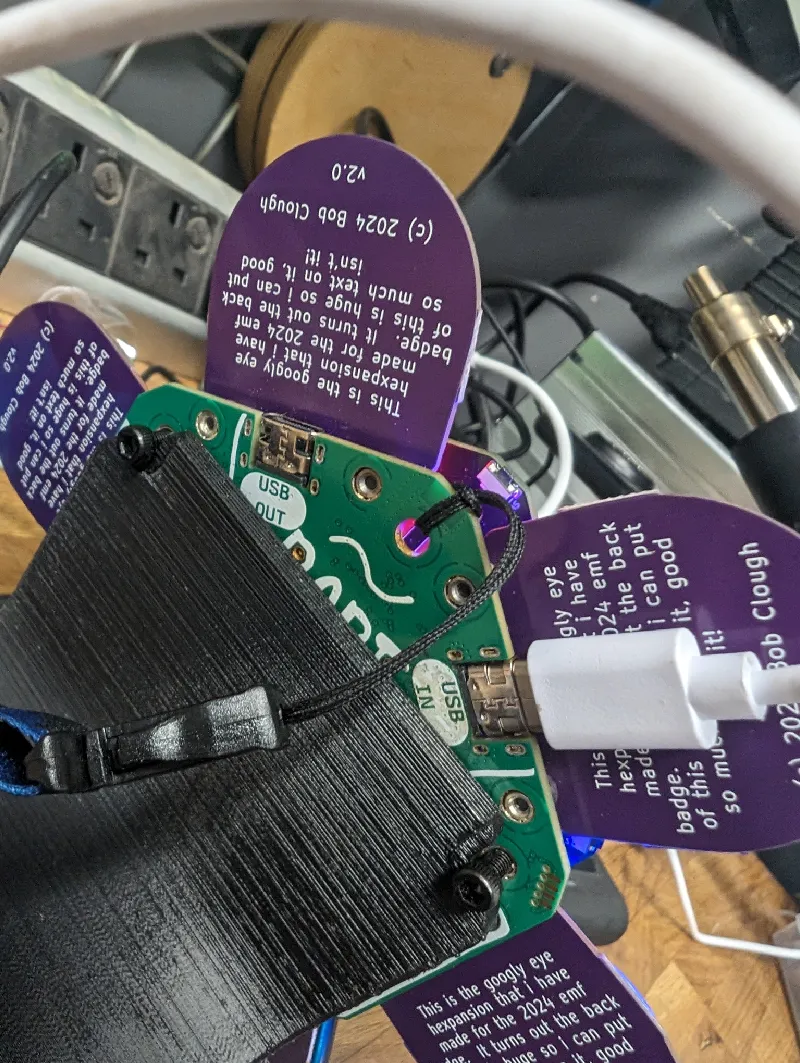

Screw your M3x6 machine screws into the back of the top two holes holding the brass standoffs.

There are only three threads engaging here until it hits the back of the standoff, so tighten to finger tight, any stronger and you risk stripping out the threads.

The badge will then just sit nicely on the stand, and is easily liftable off to work on it.

There is storage space available at the back for up to 6 hexpansions.
