X210 (QAV-X variant) VTX and ELRs antenna moutn

I re-worked my old X210 frame and added a 2 in 1 antenna mount for VTX and ELRs
0
17
0
77
updated June 11, 2024

Description

PDF

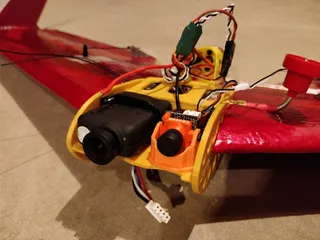

This is a custom 2 in 1 antenna mount for the old X210 / QAV-X frame, I re-worked my old quad and improved the VTX (added HD-Zero) and ELRs for control.

So far printed this in PLA+, but likely I anticipate with one good crash it will need to be printed in TPU, for now I'm just going to test it out and see how long it lasts.

I printed this at 0.2 and 50% infill (since its a tiny part), used a heat gun to warm/warp the antenna holder to my antenna (and let it cool back to shape, TPU would be perfect to just wrap around the antenna). 2 zip ties attached the ELRs nano antenna on the back.
