CREALITY K1 | K1C | K1SE - 20mm SIDE SPACER + VENTILATION (compatible with the honeycomb V3)

*If you have any issues with printing or assembly, feel free to message me, and I'll do my best to assist you 😉.

IMPROVES AIRFLOW INSIDE THE PRINTER * COMPATIBLE WITH HONEYCOMB STORAGE WALL (STANDARD) V3 *zip file

______________________________________________________________________________________________________________

/////LINKS FOR THE HARDWARE USED IN ALL MY PROJECTS * affiliate links

INSERTS M3 x 4mm (L) x 5mm (D): https://amzn.to/3EovAVw

HEX SOCKET CAP M3 6mm-30mm (STAINLESS): https://amzn.to/4imGAQW

HEX SOCKET CAP M3 6-20mm (BLACK): https://amzn.to/3R7wjx4

FLAT HEAD SOCKET CAP M3 4mm-12mm (STAINLESS): https://amzn.to/3G3Z1wr

FLAT HEAD SOCKET CAP M3 8mm-25mm (BLACK): https://amzn.to/43JeThP

________________________________________________________________________________________________________________

 /////ATTENTION

Make sure the bolts aren't too long. They shouldn't go past the frame's thickness to avoid damaging any internal components.

BOLTS DIMENSIONS:

• Without HONEYCOMB STORAGE WALL (STANDARD) V3: M3x25mm
• With HONEYCOMB STORAGE WALL (STANDARD) V3: M3x30mm

If pieces [b] don't fit properly, you'll need to clean the inside of pieces [a]. The tops of the ventilation openings in pieces [a] can get deformed during printing, stopping pieces [b] from fitting. To fix this, use a metal tool like closed scissors that fit inside pieces [a], and move it back and forth to clean out the ventilation openings. Be careful not to remove the two tabs that lock piece [b] in place. Inside piece [a], near the handle opening, you'll see two tabs that secure pieces [b].

• Before starting printing the pieces, I recommend printing this tool https://www.printables.com/model/899470-xyz-accuracy-test-calibration-tool to test the dimensional accuracy of your printers and use this tool https://www.printables.com/model/480907-shrinkage-calculator-dimensional-calibration-tool to determine the correct scale based on the filament shrinkage you’ll be using.
• The pieces were developed with very tight tolerances (0.2mm) to ensure proper alignment and functionality of the assembly, so it’s important to make sure everything is well-calibrated or that you understand what is needed for everything to work correctly.

/////INFO

THIS PROJECT IMPROVES AIRFLOW INSIDE THE PRINTER FOR MATERIALS THAT DON’T NEED AN ENCLOSURE.

IT ELIMINATES THE NEED TO OPEN THE DOOR OR LID, ENHANCES VENTILATION, AND REDUCES NOISE. *NOTE: The first layer is the most critical because the fan isn't running yet, so you might need to keep the door open just for the first layer. Once the fan starts, you can close everything. So far, I've printed with everything closed and haven't had any problems.

*COMPATIBLE WITH HONEYCOMB STORAGE WALL (STANDARD) V3 (zip file)

Following the naming convention used by the Voron team, all files are identified by material
and quantity. [a] refers to the primary material, [b] refers to the secondary material or the use
of a different color, and (x..) indicates the number of pieces to print.

[a] - ABS or another high-temperature resistant material.
[b] - Can be printed with any material. For this project, it was printed in orange PLA.

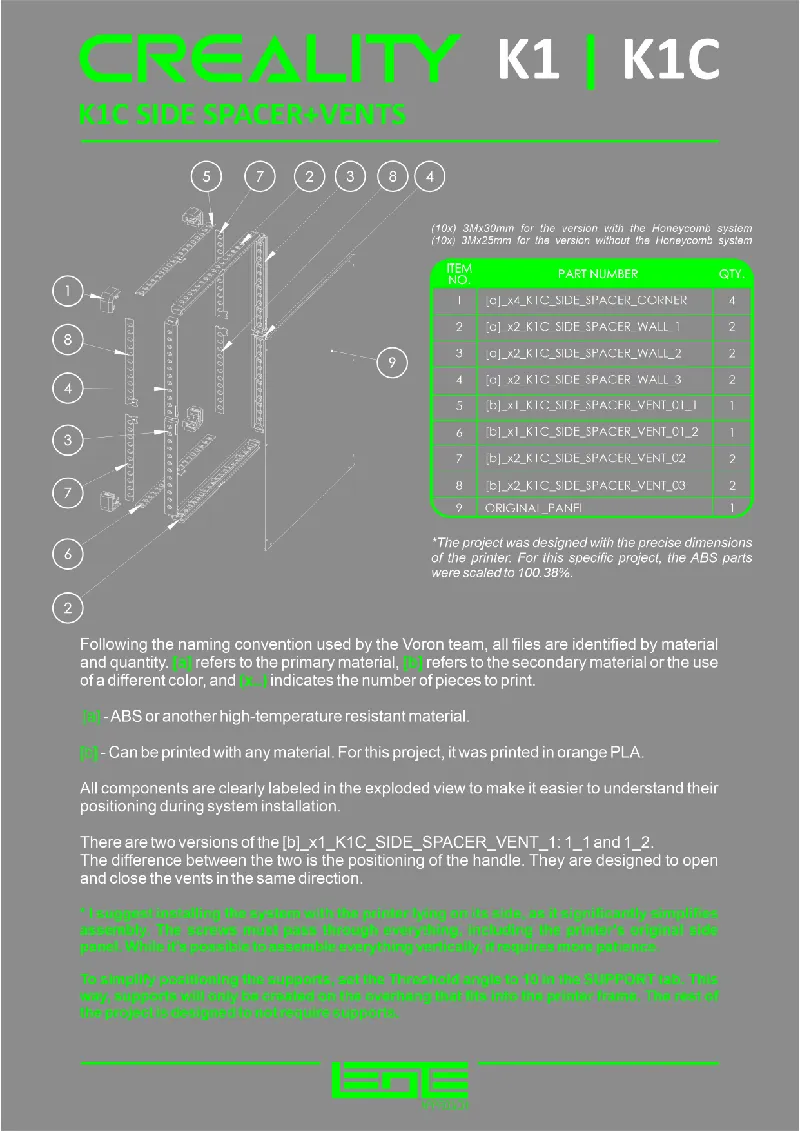

All components are clearly labeled in the exploded view to make it easier to understand their
positioning during system installation - PDF FILE

There are two versions of the [b]_x1_K1C_SIDE_SPACER_VENT_1: 1_1 and 1_2.
The difference between the two is the positioning of the handle. They are designed to open
and close the vents in the same direction.

* I suggest installing the system with the printer lying on its side, as it significantly simplifies
assembly. The screws must pass through everything, including the printer's original side
panel. While it's possible to assemble everything vertically, it requires more patience.

To simplify positioning the supports, set the Threshold angle to 10 in the SUPPORT tab. This
way, supports will only be created on the overhang that fits into the printer frame. The rest of
the project is designed to not require supports.
