SF 3x5015 Neptune 4 fan mod shroud - Optimized, enhanced with beacon/cartographer support

Hi, does this model works with cartographer V4 low profile version

hi i came across this by accident i have 4 neptune 4 maxs but i dont understand the purpose of this? is it better then the original.. does it stop the tips gumming up and the blobs coating the whole hot end? i know this printer is a lemon after multiple breaks.. but curious i couldnt understand the features like how is it better then the orginal? other then fans are probably better then the orginal? i didnt wanna tackle this if i didnt know what its really doing to help things

Looks good, works good, and easy to assemble, and it lets me use the carto, great design definitely recommend!

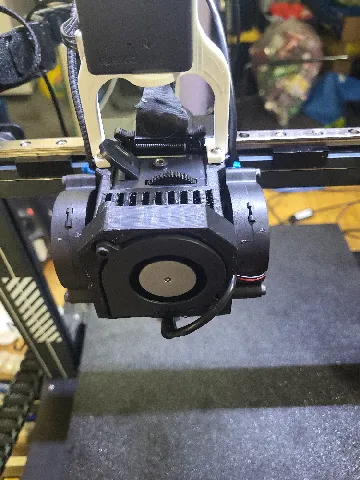

Turned out perfect. Printed in paht-cf. Paired with 60w hotend (edited)

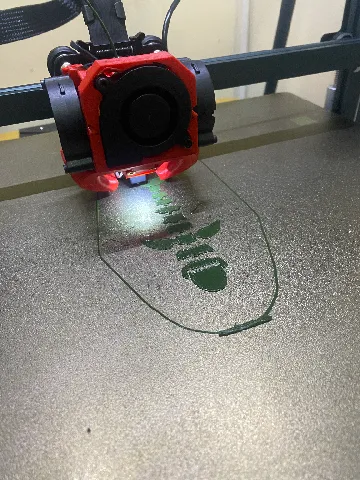

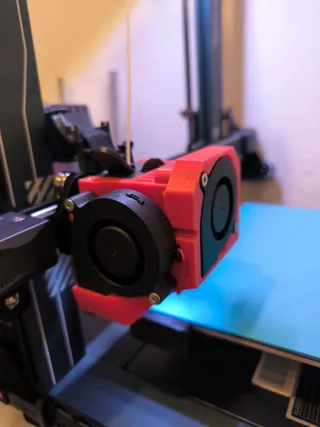

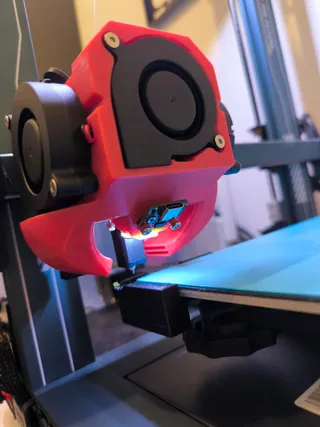

Printed in Red PETG
Assembled with 60W hotend

My goal was to silence the high pitched whine from the heatsink fan and this mod worked! I had to reverse polarity for the 2 side fans but the heatsink fan was correct. Thanks for helping me retain my sanity!

I printed Esoterical Offset Tool and I'm getting more like 23mm on the y-offset, has anyone else noticed that?

Also what coordinates are people using for screws_tilt_calculate after swapping from inductive probe to cartographer?

Subtracting the original probe offset and adding the new carto offset, I'm looking at this for N4 Base/Non-Pro/Plus/Max

Back Left: 32.5, 179.5
Front Left: 32.5, 9.5
Front Right: 202.5, 9.5
Back Right: 202.5, 179.5

Hard to eyeball it because the actual "bullseye" of the carto isn't in the tip.

Love it!

Love how it came out and carto version spot on

Great design thanks. I used 3x "D3vil Design Typhoon 5015" fans which can do even 10k RPM. And use them only with 20%. Finally high frequency noise gone and you can sit easily next to it while it is printing. Unfortunately here no video uploade possible.

Fan spec:
Size: 50x50x15mm
Rotational speed: 10000 rpm ± 10%
Airflow: up to 8.3 CFM
Air pressure: up to 64.8 mmH2O Storage: double storage
Voltage: 24V Current: 220 - 300 mA
Power consumption: 4.8 - 6.4W 3mm shaft thickness

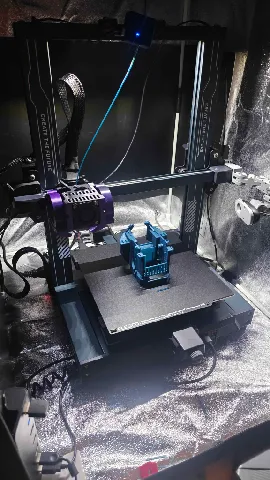

Great Design! Ive printed mine in galaxy blue, to mach the original color in a special way *-*
