Gear and Pin Replacements

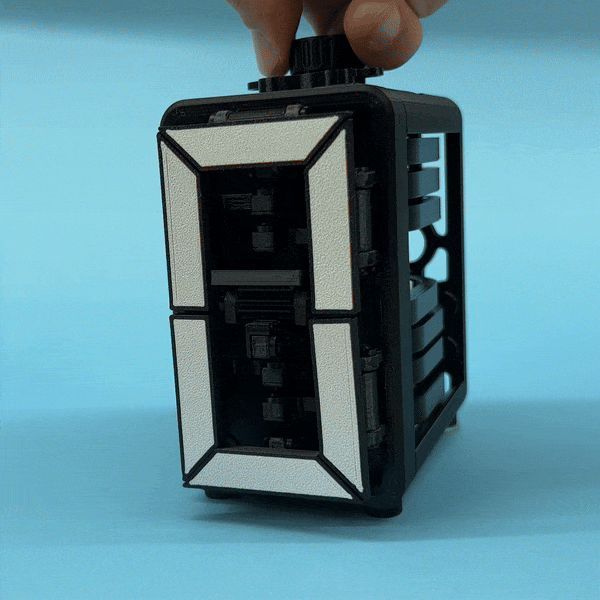

Intended to replace the three main gears and four servo bracket mounting pins on Engineezy/JBV Creative's Rack Driven 7 Segment Display. I found the basic Spur gears to slip too easily and the servo mount simply refused to sit flush on the module. Thus I shortened the pins by ~1mm to create a tighter fit and completely redesigned the gears to be Herringbone rather than Spur. I'm not sure how much of a role it ultimately plays but I opted to print everything at 50% infill and .15mm layer height. Assembly process is exactly the same as prior, just with different gears and pins.

Please note that this is just my own modification to the original file created by Engineezy/JBV Creative. I do not have any connection with Engineezy/JBV Creative and cannot / will not provide any of the original files from this project without their consent or knowledge.
