Cover ACL canopy contact

This cover hides the opening remaining when you remove your ACL canopy contact from Aeroflash or Sotecc.
0
8
0
88
updated June 11, 2024

Description

PDF

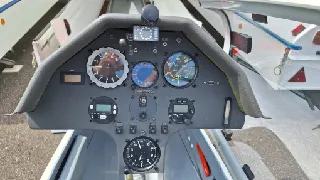

After removing my Aeroflash ACL (would also work for the Sotecc contact) from my glider due to heavy intereferences. I have been left with the ugly hole in the instrument panel cover. I hide it as a quick fix with this make.

Testet with Material prusament PC CF blend, matches pretty much the Nextel coating. I recomment you using PETG or ASA. Big surface on Printplate, no supports requiered, layer 0.2mm with 0.4 nozzle works fine.

Additional Requierements

I am using M3x5 screws and M3 standard length brass inserts from Ruthex.

If you need help adapting the model with a direct thread feel free to contact me.
