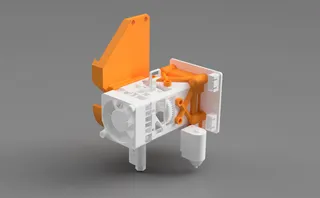

Artillery Sidewinder X1/X2/Genius/pro quick change bracket

this is a quick change extruder bracket for artillery printers.

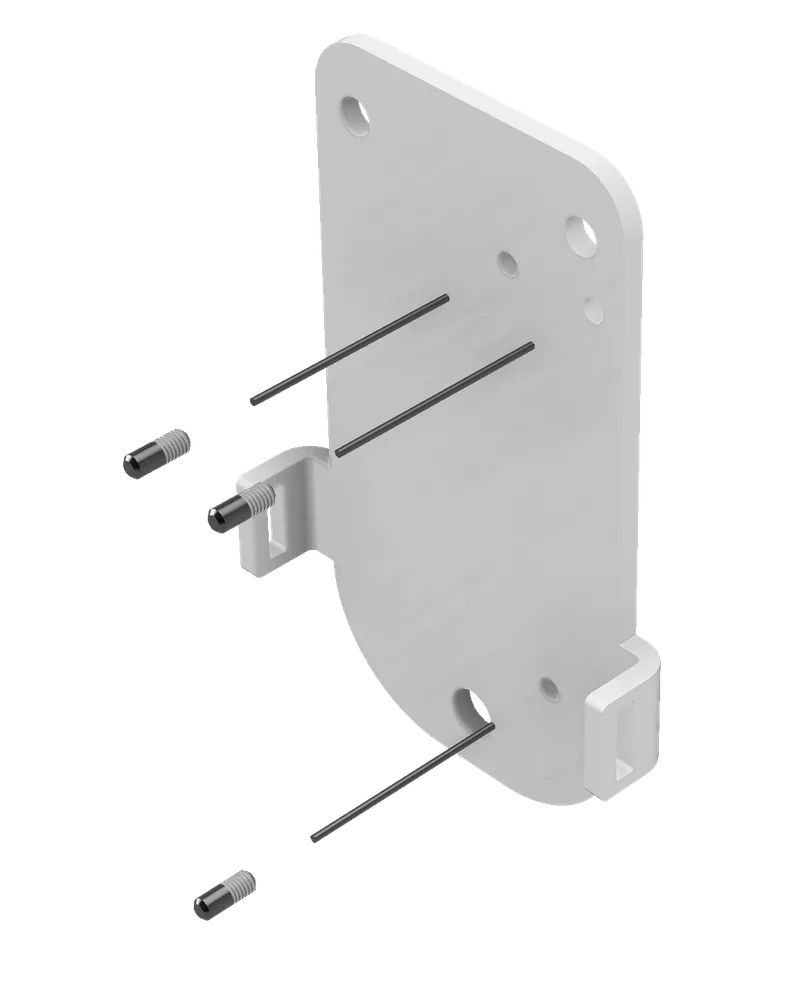

you will need 3 dowel pins with m3 thread (6mm):
https://s.click.aliexpress.com/e/_DFialPf

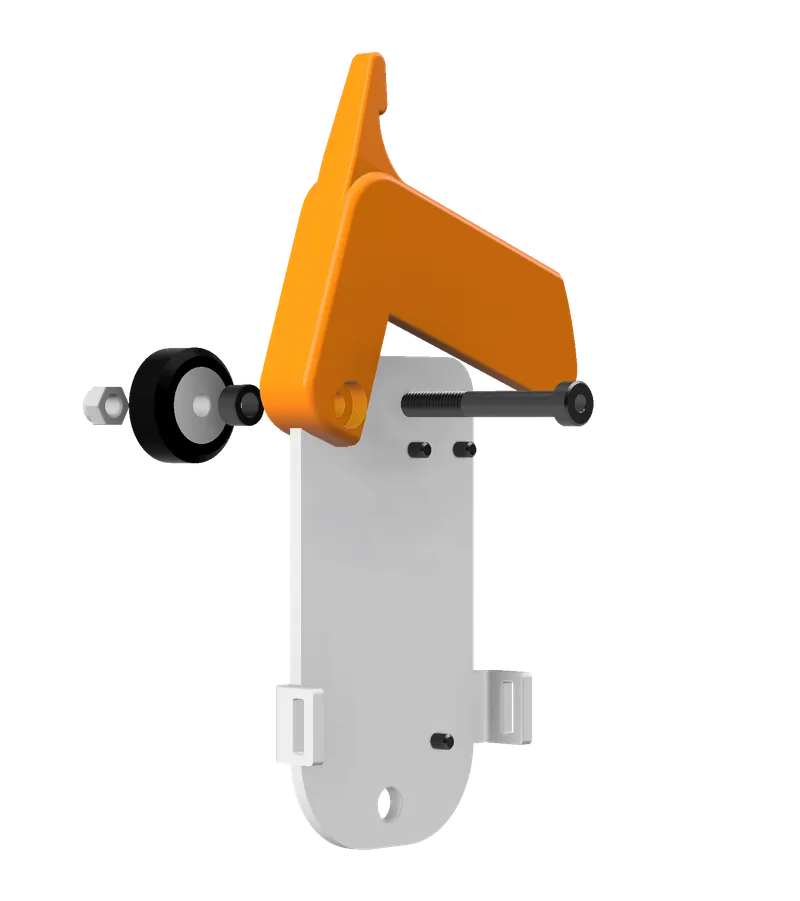

for the roller wheel you need a longer M5 (30mm) screw to hold the bracket but it is recommended to use shoulder bolts so the bearing doesn't roll on threads:
https://s.click.aliexpress.com/e/_Dkl5JQ9

if the bracket is rubbing on the x axis you may need to add a washer to the bottom v-slot wheel.
i found that the eccentric nut is shorter than the spacers so the carriage is not fully parallel to the x axis, adding a 1mm washer fixes that.

printing orientation:
