VorterantQ pump

VIDEO

VIDEO high viscous fluid with particles

Pump for broad range of speed and viscosity - easy to clean, works for water, oil, resin, soap, lather, slurry, cream, gel, ointment or silicone and paint. Or as kinetic sculpture/demo/fidget.

For the kinetic  sculpture or demo print the rotor (4×) in vase mode and put with ∅2mm shafts into the cross plate add the caps and close with another cross plate use the grip (2×) to turn and hold together.

As a pump print with random seam, sand it after and make sure the holes are clean and lubricated. Can be run with only the drive shaft but using 4 rods is recommended.

can use the hex bit to connect to a power drill.

For submerged pump you can choose the mixing top to keep fluid circulated and mixed while pumping.

For higher pressure needs choose the low flow high pressure top

or the open 15mm version with M3 screws as arbor - put some UHMWPE tape between  top and rotors to minimize friction due to the higher axial load.

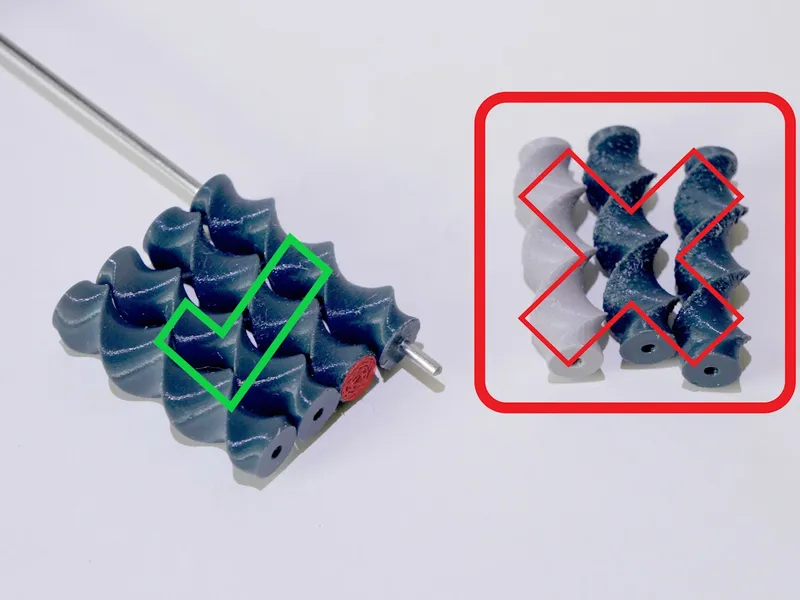

Printquality

As these rotor are counter rotating you need a smooth surface. If your print is rough you need to sand this or improve print settings
