Cyclone dust collection　STEPfileadd

Cyclone dust collector for 100mm hose diameter.
Print and bond the 4 parts together

A mesh structure has been added to the cyclone3 component to prevent large debris from being sucked in.
Please download according to your preference

Printer bed size must be at least 300mm

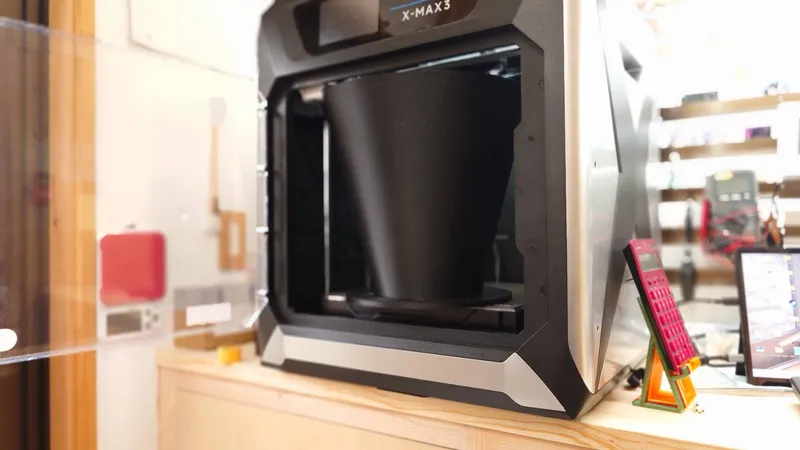

I used QIDItech X-MAX3

Detailed CAD drawing instructions are available on YouTube so that you can create your own original size in addition to the 100 mm hose!

Please make your original size!
