BetaFPV Meteor 75 Pro Whoop Travel Box | Magentic Lid

A travel box specifically made for the Meteor75 Pro, with a magnetic lid.
13
106
0
1511
updated November 27, 2024

Description

PDF

This is my attempt to make a traveling box / case for the BetaFPV Meteor75 Pro.

Lid_V2 comes with round handles to make opening easier. Printing instructions still apply. Works with V1 box

Box_V2 updated to have keying for V2 lid.

Features

  • Magnetic Lid
  • Battery and Charger holder ( 3 batteries, 4 if one attached to the drone )
  • Screwdriver holder ( for the one that ships with the drone )
  • Additional storage for props



Materials



How to print / Assembly

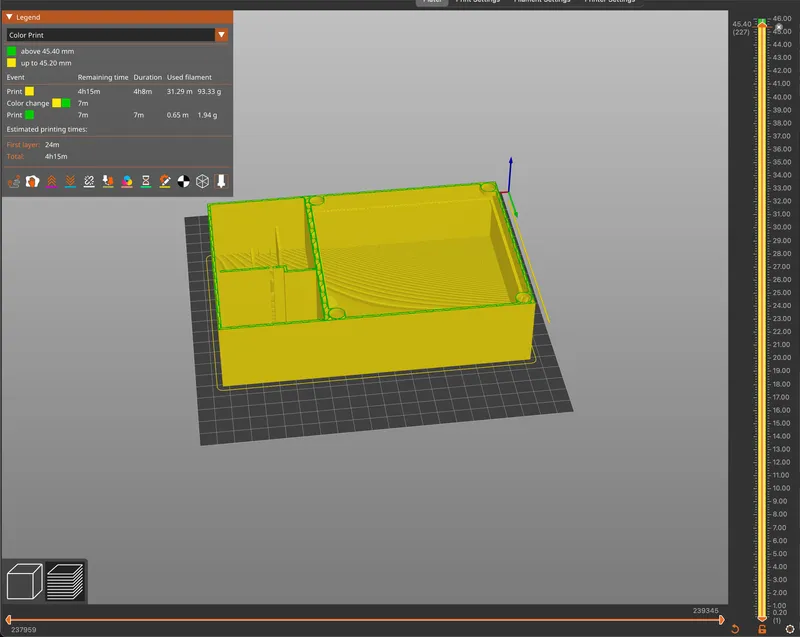

You can just print this without any supports. I personally printed with 10% Gyroid but you can choose whatever you like. You will have to create a filament change before the magnet cavity gets printed over, like so:

You will have to do this with the lid aswell. If you need further explenation, comment or contact me through discord.

Once the filament change is initiated, place in the magnets and don't forget to check orientation ( do not ask me how I know ). Also make sure the magnet is flush. After that, continue printing



After you have your 2 parts, place the foam insert you received from the Meteor75 pro box into the large area. The liner at the sides make sure the foam doesn't get pulled out if you lift your drone up.

Misc.

I don't have the most experience in this field so any feedback would be greatly appreciated. And be civil about it.

Cheers - realtonkyt ( also my discord @ )
