Raspberry "open" wall mount
2
18
1
369
updated November 21, 2021

Description

PDF

I am using many PIs around the house, couple dedicated to pihole and stuff around the network.
This one is next to my table so I can see potential issues without logging in.


Feel free to modify the PI “holder".

I have a plan to create a version that allows to mount 40mm Noctua fan + allow to use POE shield with screen ("WIP")

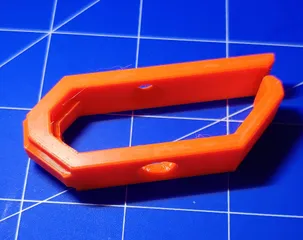

Please print the “Fit_Test” files to double-check the print.
It should work without any force but it must hold in place!

The “full” print will require a bit of force at the end (I have used hammer to tune the last few mm`s)

PLA
0.20mm (Default prusaSlicer quality)



Use  https://www.amazon.com/Raspberry-Standoff-Standoffs-Building-Quadcopter/dp/B0788FR59P (example) to attach pi to the mount
