Sovol SV08 Panels for the Enclosure

Later edit:

For the US folks https://mandalaroseworks.com/products/sv08-clear-acrylic-panels if you use code CN3D at checkout you also receive a 5% discount!  thanks to Mandala Rose Works
you have to chose if you use a top hat or not to know witch top panel you will receive!

Hello guys I want to share with you that Funssor is selling our design so If you want to buy this panels pre cut and drilled plus additional hardware for the hinges + the Top Hat you can buy them from this link

https://s.click.aliexpress.com/e/_ExW06OJ

they also have a listing only for the top hat we are selling

https://www.printables.com/model/865851-sovol-sv08-top-hat

https://s.click.aliexpress.com/e/_DlPJCo7

Thanks to Marshall thas pointed some err in the side panels.  i have updated the files.

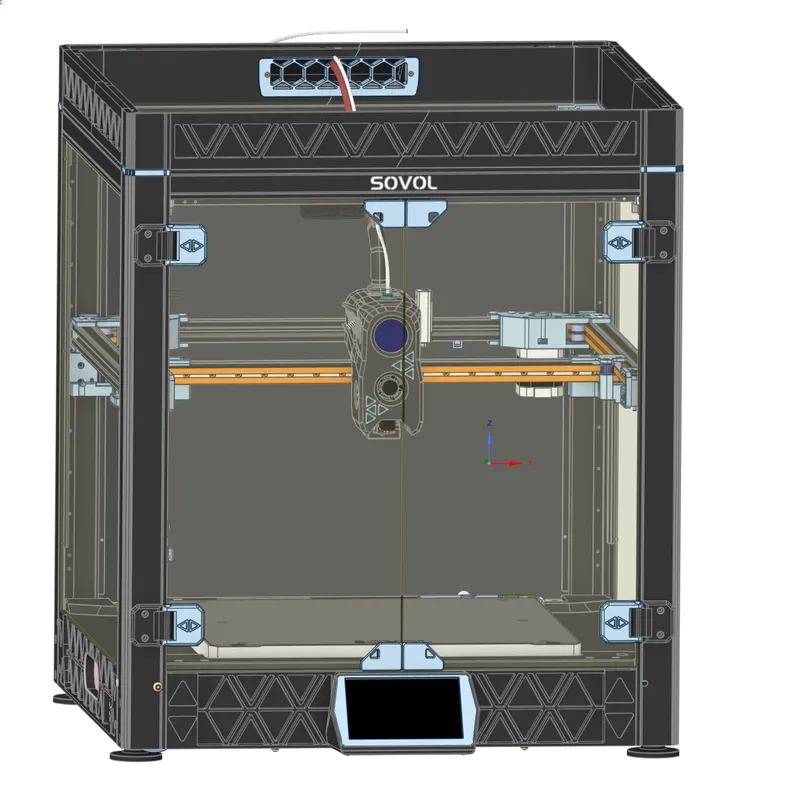

the doors need to be with the big cutout up for the door handles

Later Edit:

I have updated the door panels to suit the handles that you can find them here

https://www.printables.com/model/879265-sovol-sv08-hinge-and-door-handle

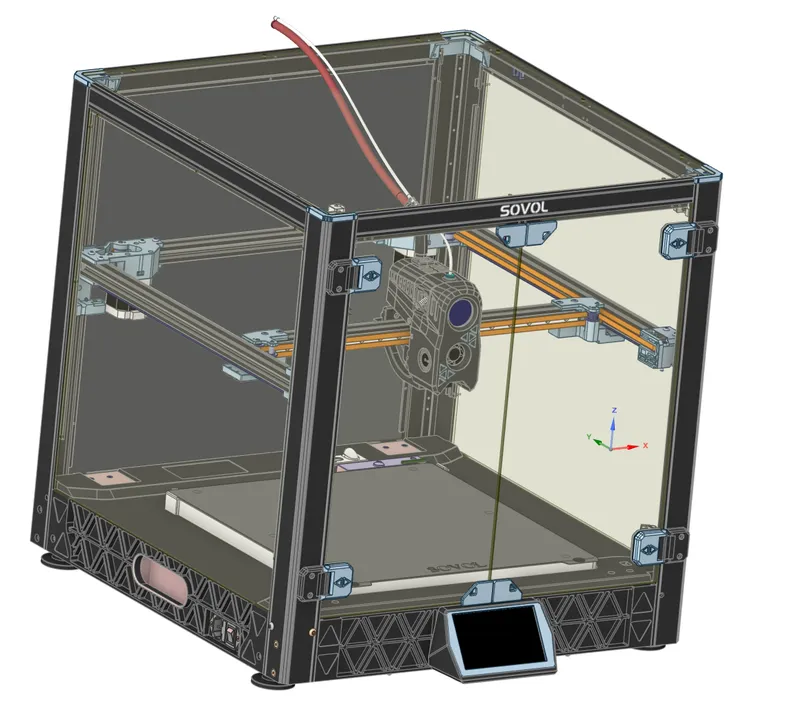

The Doors are connected to the frame bi the hinges that you can find in the link above

To install the hinges you will need to drill in the frame with a 2.5mm drill bit and after tap the holes with a M3 tap.

The factory holes from the original enclosure uses different stile/metallic hinges. and i didn't trust to use the same hole to secure the big doors with a 3d printed hinge.

All the Members will have access 1 week before other to this Design.

This is my way to say thanks to all the members 🙏

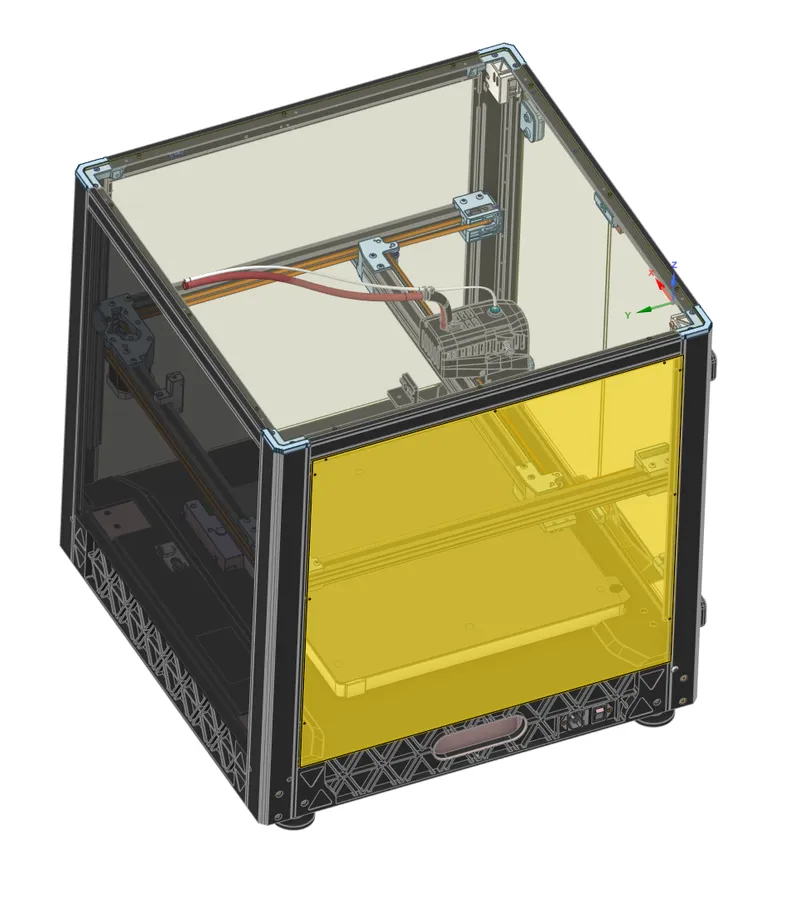

The panels are 3mm thick

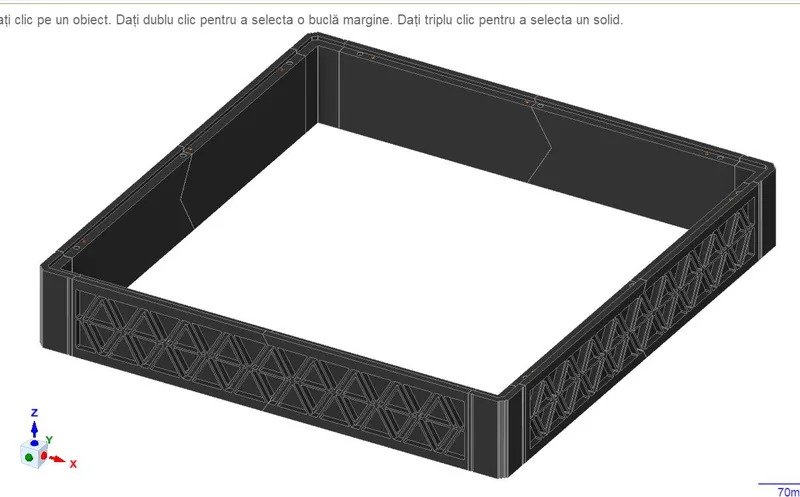

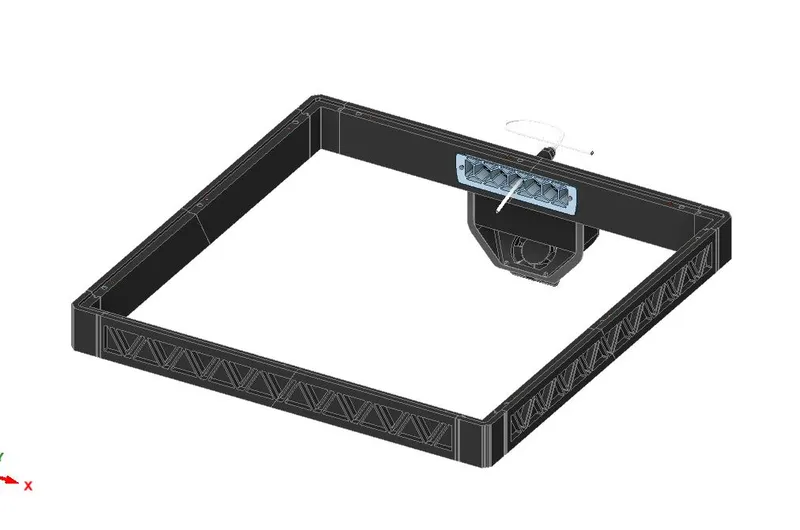

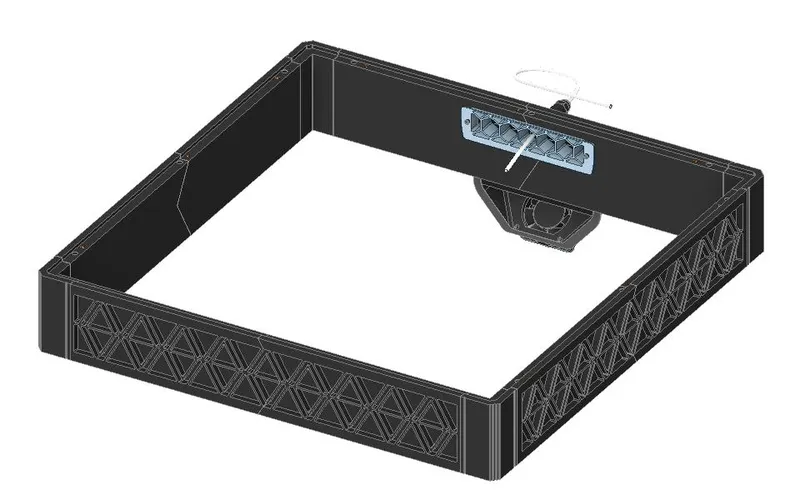

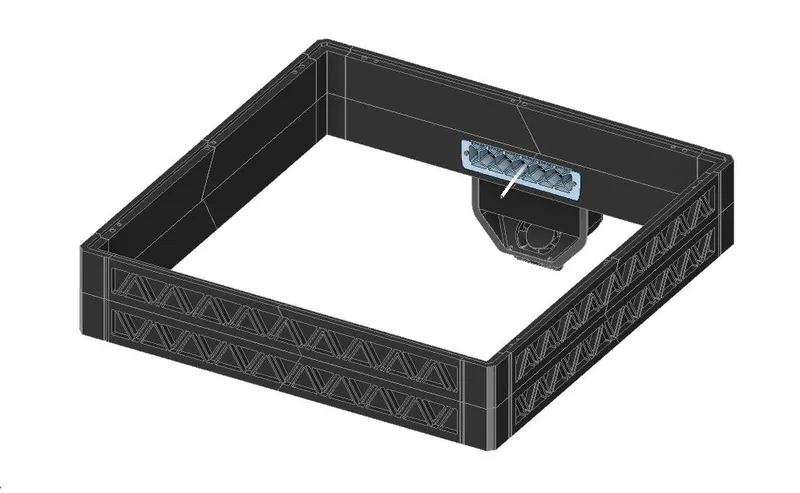

The “Top Panel for our top hat” can be used with this awesome Top Hat. https://www.printables.com/model/865851-sovol-sv08-top-hat

If you want to install other top hat or no top hat at all use this “Top Pannel For Stock Mount”

Here you can find the hinges and the handles for this panels

https://www.printables.com/model/879265-sovol-sv08-hinge-and-door-handle
